ASSEMBLY INSTRUCTIONS
5. Install Left Side Panel (Part 4)
Attach Left Side Panel (Part 4) to
Back Frame (Part 3), making sure
the "Top" of Left Side Panel (Part
4) is on the Solid Hardwood Top
(Part 1). Use three Screws (Part 16)
and Screwdriver (Part 21) to fasten
(Fig. E).
6. Install the Front Frame (Part 2)
A: Align the "Top" of the Front
Frame (Part 2) to the Solid
Hardwood Top (Part 1). The other
screw holes will align with the Left
and Right Side Panels (Part 4 and
5) and Middle Panel (Part 8).
B: Use nine Screws (Part 16) and
Screwdriver (Part 21) to fasten the
Front Frame (Part 2) to the Left and
Right Side Panels (Part 4 and 5)
and Middle Panel (Part 8).
C: Make sure the four edges of the
Cabinet are aligned, then fasten
the Front Frame (Part 2) to the
Solid Hardwood Top (Part 1) by
using two Washers (Part 14) and
two Screws (Part 15) with Wrench
(Part 25) (Fig. E).

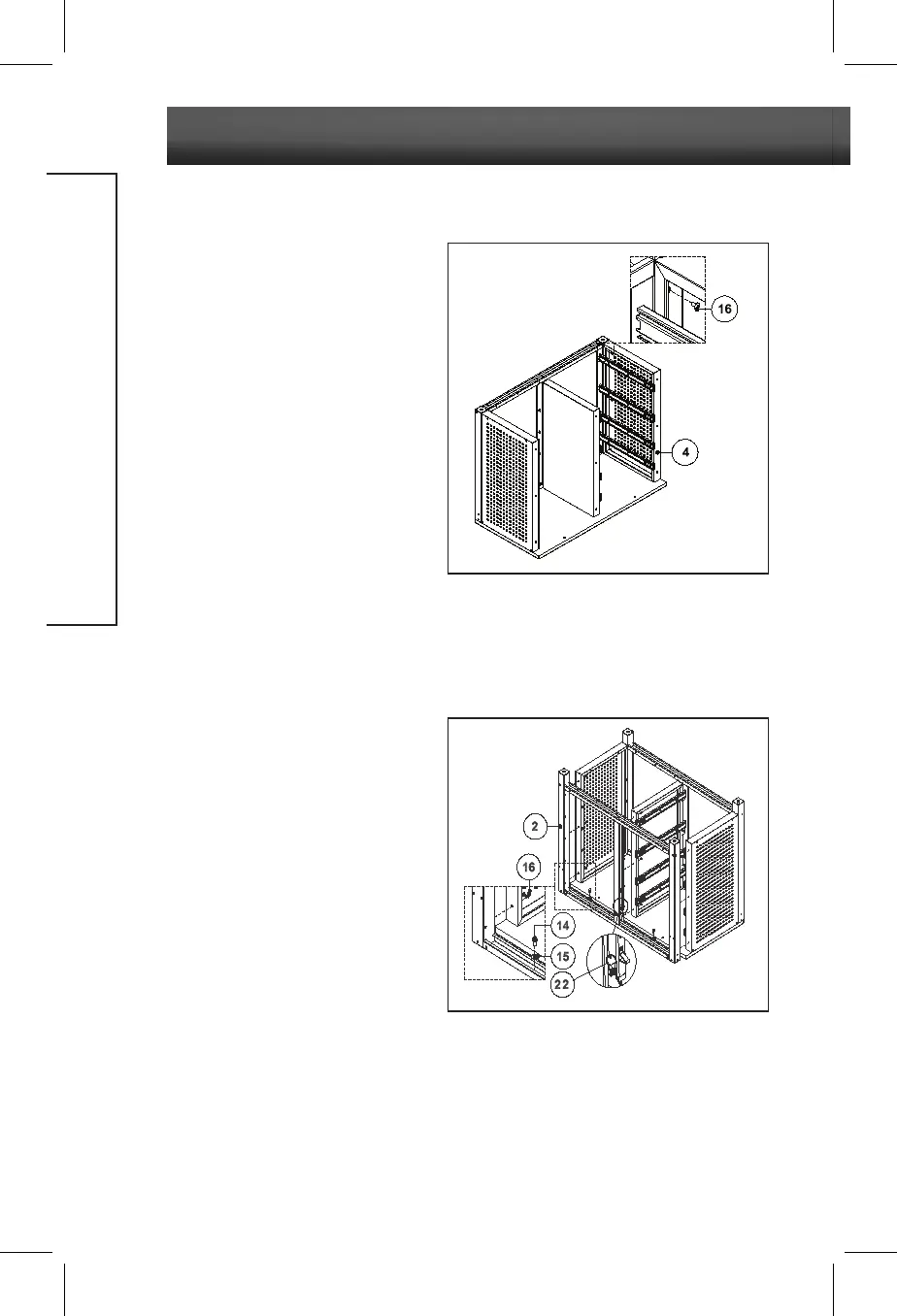

Fig. E
Fig. F
Note: The Key (Part 22) is attached to the
front frame (Part 2). Please take out the
Key (Part 22) before installing the front
frame (Part 2).
