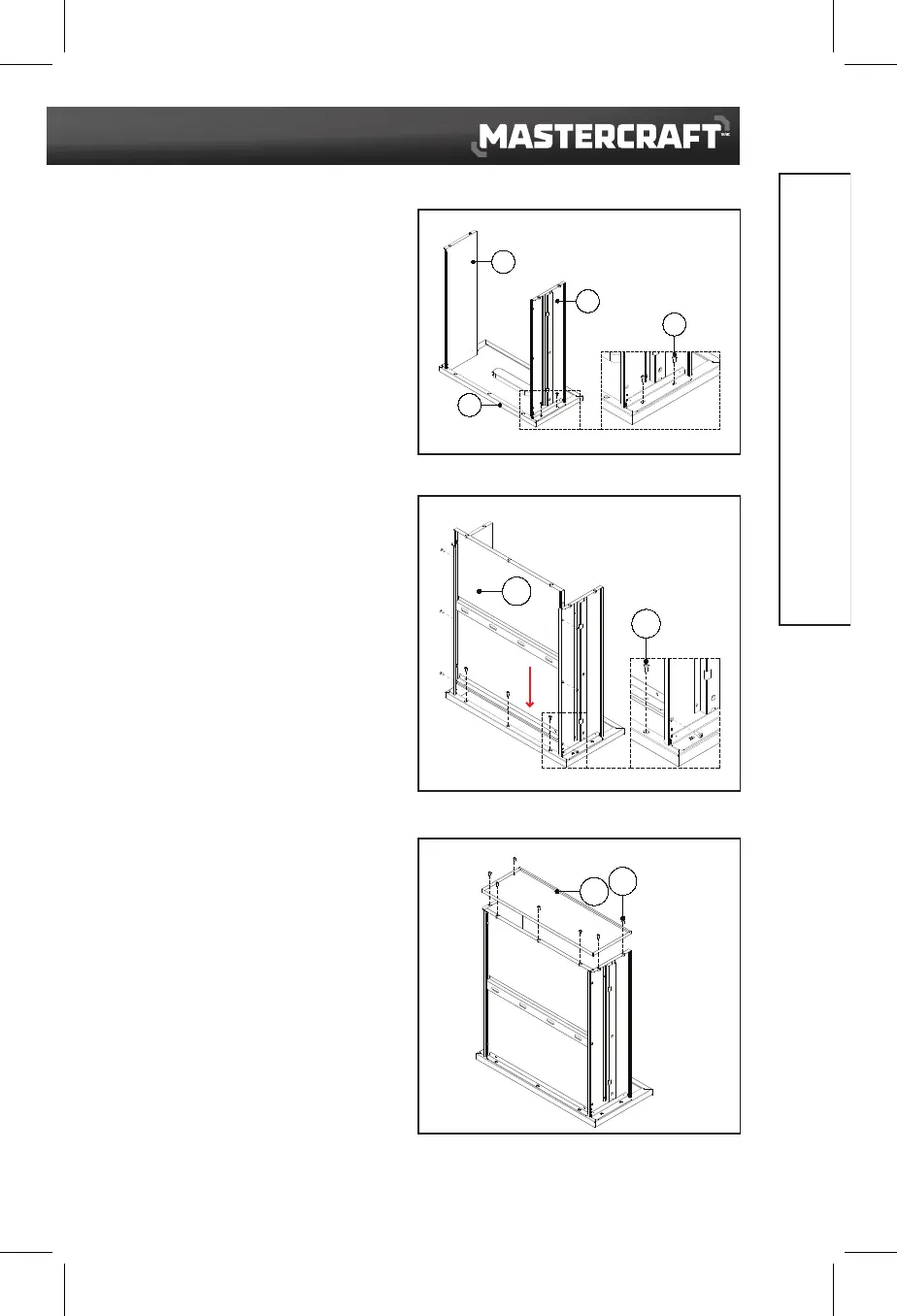

ASSEMBLY INSTRUCTIONS
11. Assemble Large Drawer Side
Panels (Part 11C and 11B)
Fit and attach Large Drawer Side
Panels (Part 11C and 11B) one at a
time, into the back of the stainless
steel Large Drawer Front (Part 11A).
Make sure the Drawer Side Panels are
placed in all the way making contact
with the rear of the Large Drawer
Front Panel (Part 11A). Line up the
screw holes and use four Screws (Part
17) and Screwdriver (Part 21) to
tighten them (Fig. M).
12. Assemble the Large Drawer
Base Panel (Part 11E)
Insert the Large Drawer Base Panel
(Part 11E) between the two sides and
into the back of the Large Drawer
Front Panel (Part 11A). Use nine
Screws (Part 17) and Screwdriver
(Part 21) to tighten (Fig. N).
13. Assemble the Larger Drawer
Back Panel (Part 11D)
Attach the Large Drawer Back Panel
(Part 11D) to the rest of the assem-
bled drawer. Use seven Screws (Part
17) and Screwdriver (Part 21) to
tighten. Once you have the Large
Drawer assembled, repeat Steps 11 to
13 to assemble the other Large
Drawer. You should have two Large
Drawers and two Small Drawers (Fig.
O).
Fig. M
17
11C
11B
11A
Fig. N
17
11E
Fig. O
11D
17
11
