ASSEMBLY INSTRUCTIONS

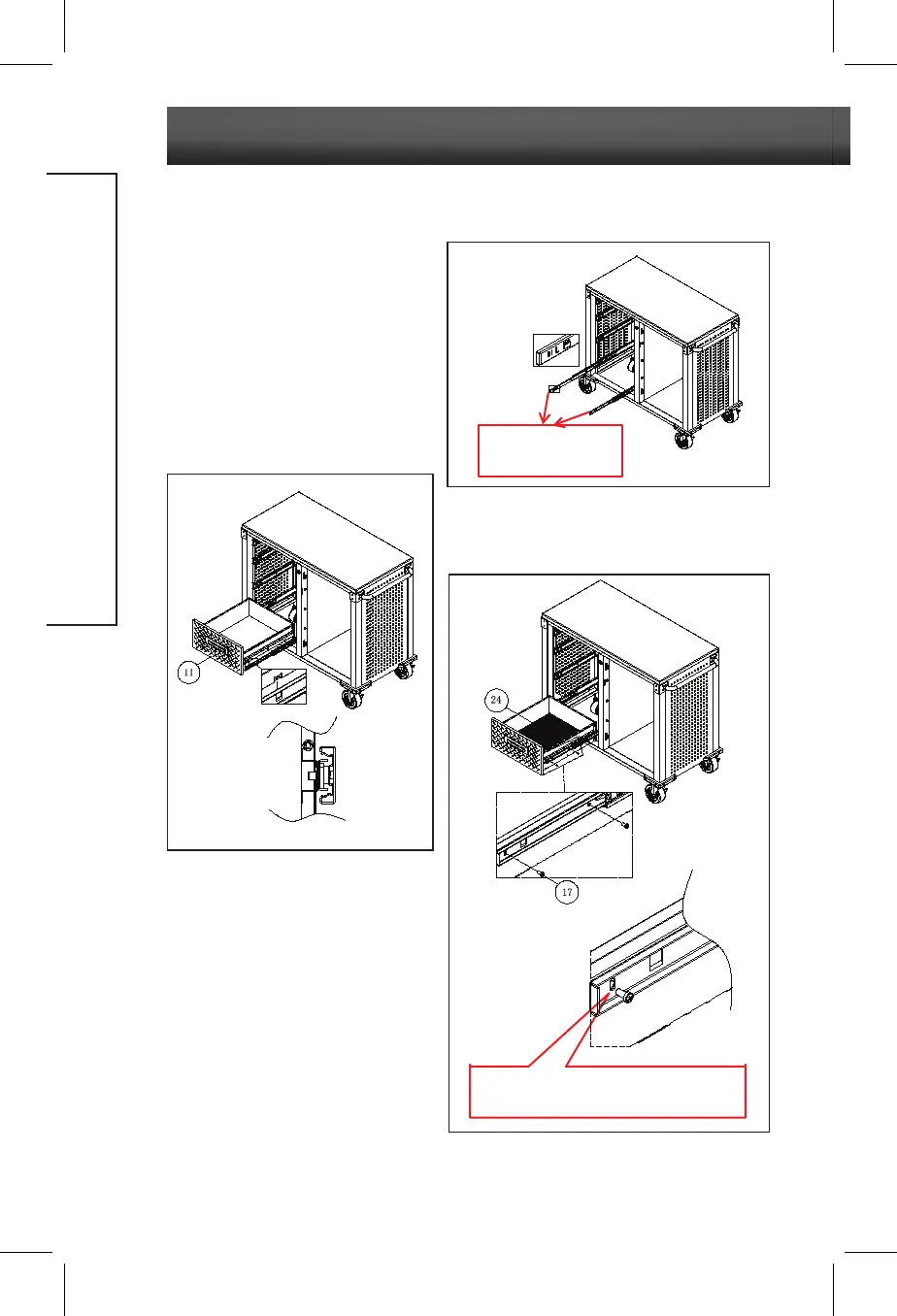

14. Place the Drawers
A: Pull out the sliders completely,
then attach the drawer to the
sliders. Make sure the square
holes on the drawer side panels
are lined up and the drawer is
hooked onto the sliders completely
(Fig. P and Fig. Q).
B: Use four Screws (Part 17) and
Screwdriver (Part 21) to secure the
drawer, then put the Drawer Mat
(Part 24) into the drawer (Fig. R).
Repeat above steps to place other
drawers.
Note:
Do not tighten any screws completely
until all the drawers are adjusted well.
Fig. Q
Fig. R
The oval hole at the front of the slider allows for the gaps
between the drawers to be adjusted. Make the adjustments
once all the drawers are installed.
Fig. P
Note: Pull out the ball
bearing track completely
before you attach drawer.
