ASSEMBLY INSTRUCTIONS
18. Install Pegboard Support
Bars (Part 18-A) and (Part
18-B)
A: Please take off four screws from
the back corner protector and four
screws from the back corner of push
bar. as shown in Fig. V: total 8 pcs.
B: Attach Pegboard Suport Bar Left
(Part 18-A) to the left back of the
work centre using Screwdriver (Part
21) and four of the Screws (Part 16)
removed in Step A. Attach Pegboard
Suport Bar Right (Part 18-B) to the
right back of the work centre using
Screwdriver (Part 21) and four of the
Screws (Part 16) removed in Step A.
Note: Do not fully tighten the screws. This will help you make any adjustments to alignment later.

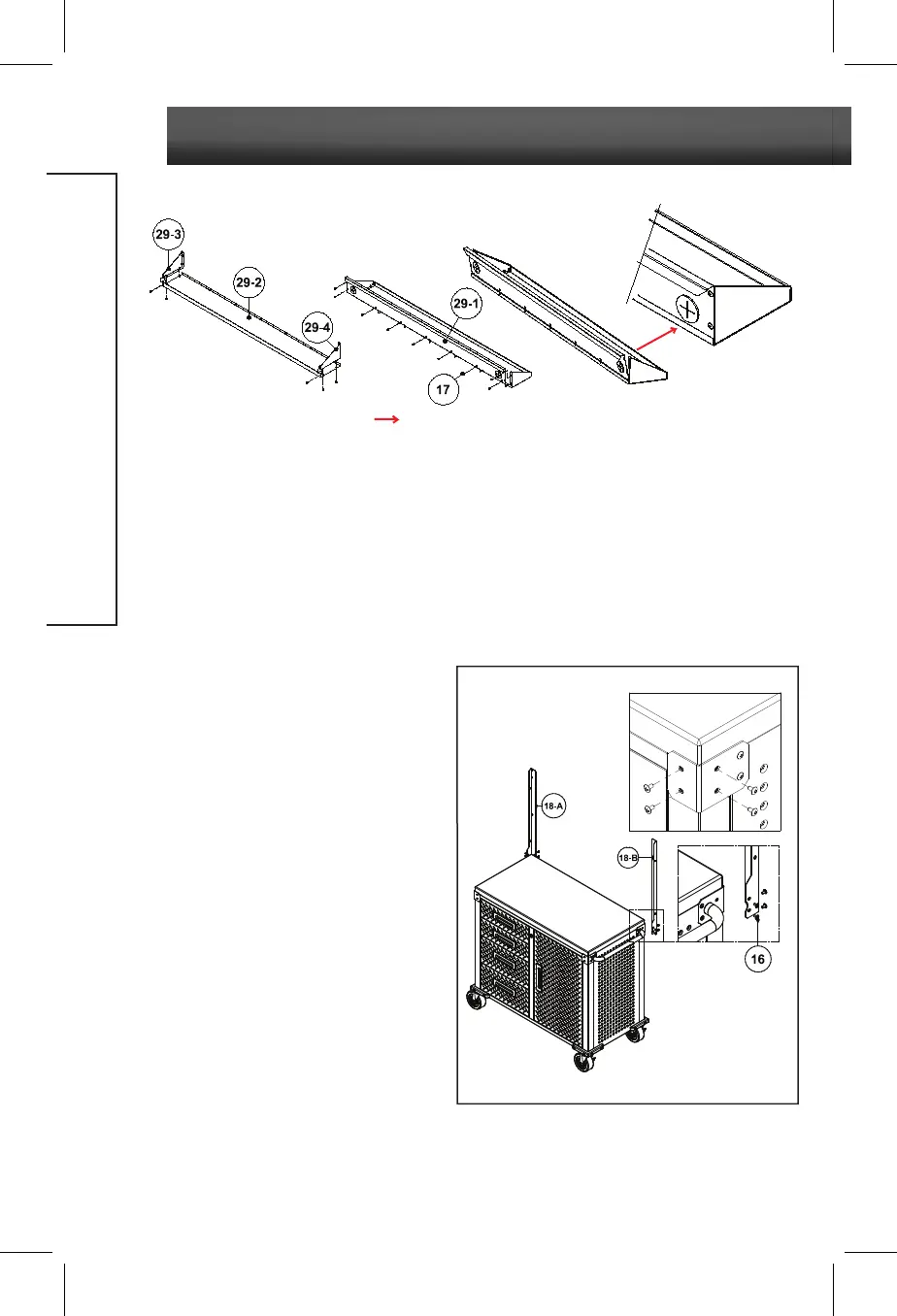

17. Install the Top Cantilever Shelf
A: Attach the Top Cantilever Shelf Left Panel (Part 29-3) and the Top Cantilever Shelf
Right Panel (Part 29-4) to Top Cantilever Shelf Base Panel (Part 29-2). Use six Screws
(Part 16) and Screwdriver (Part 21) to tighten.
B: Attach the Top Cantilever Shelf Back Panel (Part 29-1) to the Top Cantilever Shelf
Right Panel (Part 29-4) and Left Panel (Part 29-3) and Base Panel (Part 29-2). Use
nine Screws (Part 16) and Screwdriver (Part 21) to tighten.
A B
Fig. V
Fig. U
