ASSEMBLY INSTRUCTIONS
Fig. A
1
Fig. B
ASSEMBLY PREPARATION
• Begin the assembly of this cabinet on a clean, level surface.
• Remove all items from the box and ensure that all parts listed on page 3 are
present.
• When installing parts that have more than one screw, tighten all screws by
hand before finishing tightening them with the provided screwdriver (21).
If a power screwdriver is used, keep on a low torque setting.
WARNING
Some parts may have sharp edges. To avoid injury, wearing gloves is recommended during assembly.
ASSEMBLY INSTRUCTIONS

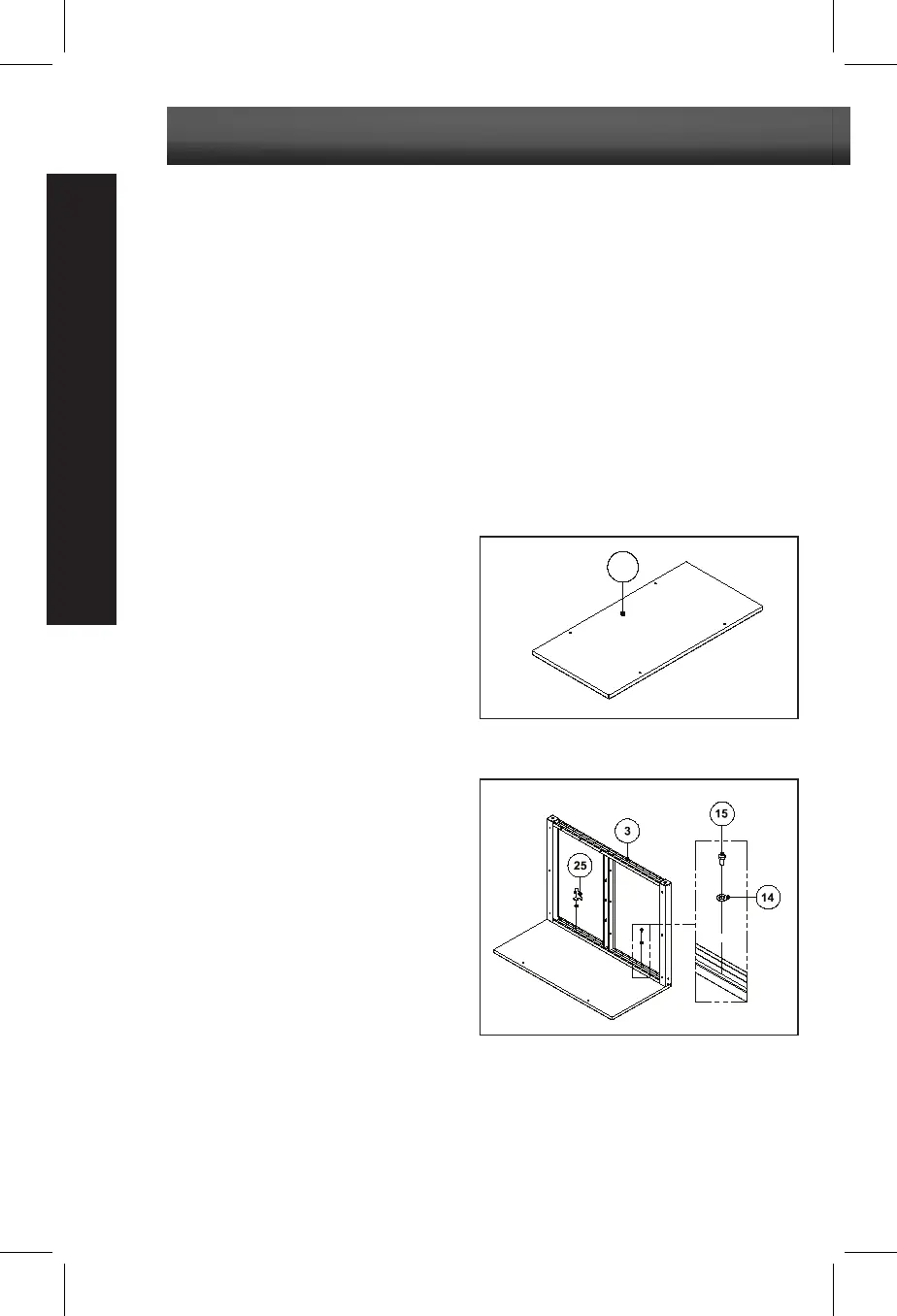

1. Open both boxes, locate and remove
the cardboard box containing the Solid
Hardwood Top (Part 1). Set the other parts
to the side.
When assembling this item, place the
Solid Hardwood Top upside down on the
cardboard to avoid scratching the top
surface (Fig. A).
2. Install Back Frame (Part 3) to
Solid Hardwood Top (Part 1)
[Use the Wrench (Part 25) for this step]
Place the Back Frame (Part 3) onto the
Solid Hardwood Top (Part 1), as shown in
Fig. B, and use two Screws (Part 15) and
two Washers (Part 14) and Wrench (Part
25) to fasten. Attach the "Top" of the Back
Frame (Part 3), as indicated by the
attached sticker, to the Solid Hardwood
Top (Part 1) (the Solid Hardwood Top has
no set front or back end) (Fig. B).
Note: Ensure the back and side are flush with the Solid Hardwood Top. When assembling a part,
do not tighten any screws completely until all screws for that part have been partially screwed in.
