Warning: To prevent possible tipping, it is suggested that
the mounting straps be installed.
Note: A power drill and bit (not included) are necessary to install the mounting straps.

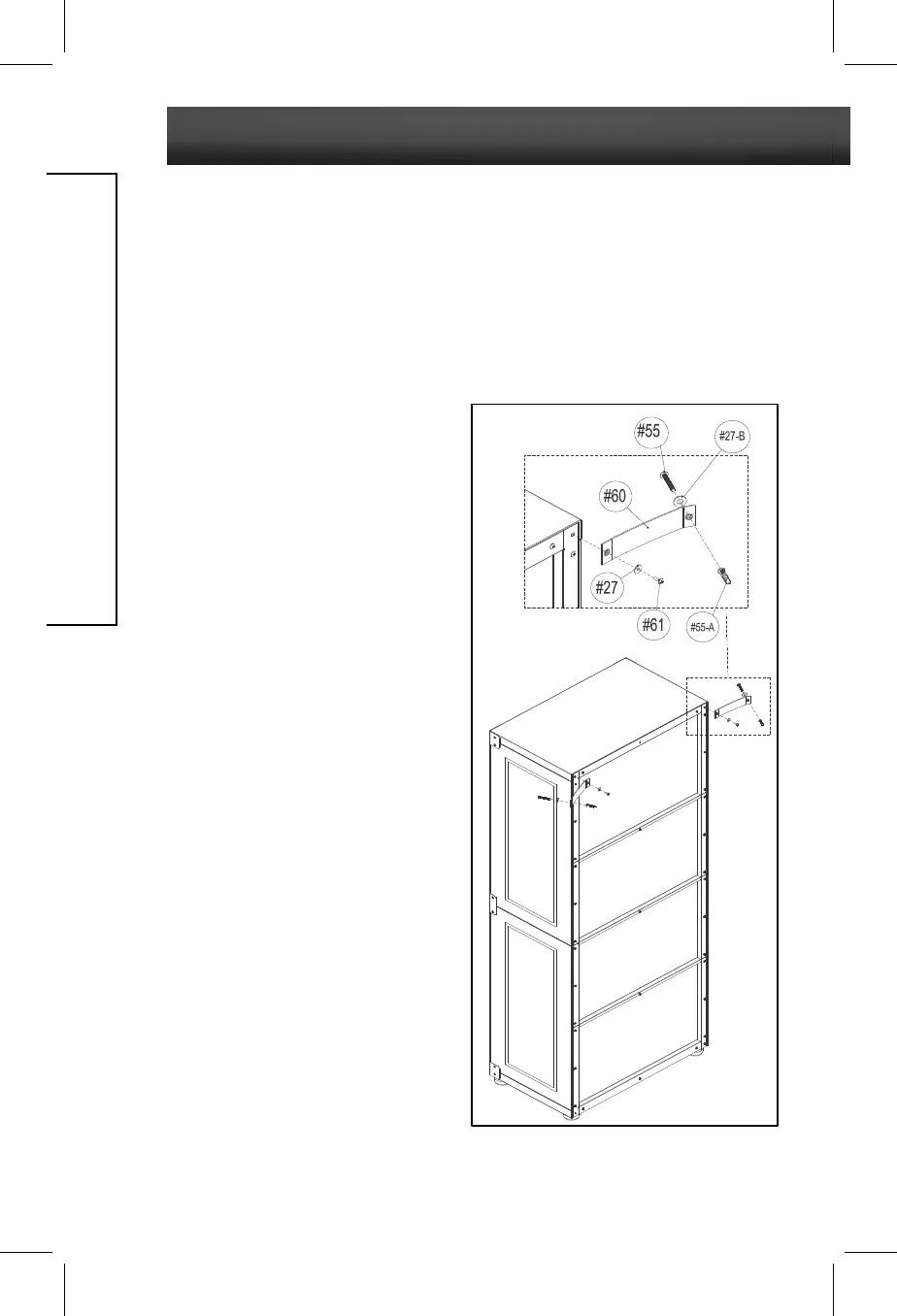

14. Install Mounting Strap (60)
1) Remove 2 pcs screw F (41) from the
top of cabinet back corners.
2) Attach 2 pcs mounting strap (60) to
the back corners, using screw O (61)
and washer (27) to secure.
3) Measure and mark holes on the wall
according to the cabinet height and
width, drill two holes in the wall with a
5/16" drill bit, and insert the wall
anchor (55-A) into the hole.
4) Attach the other end of the
mounting strap (60) to the wall using
screw M (55) and washer (27-B).
