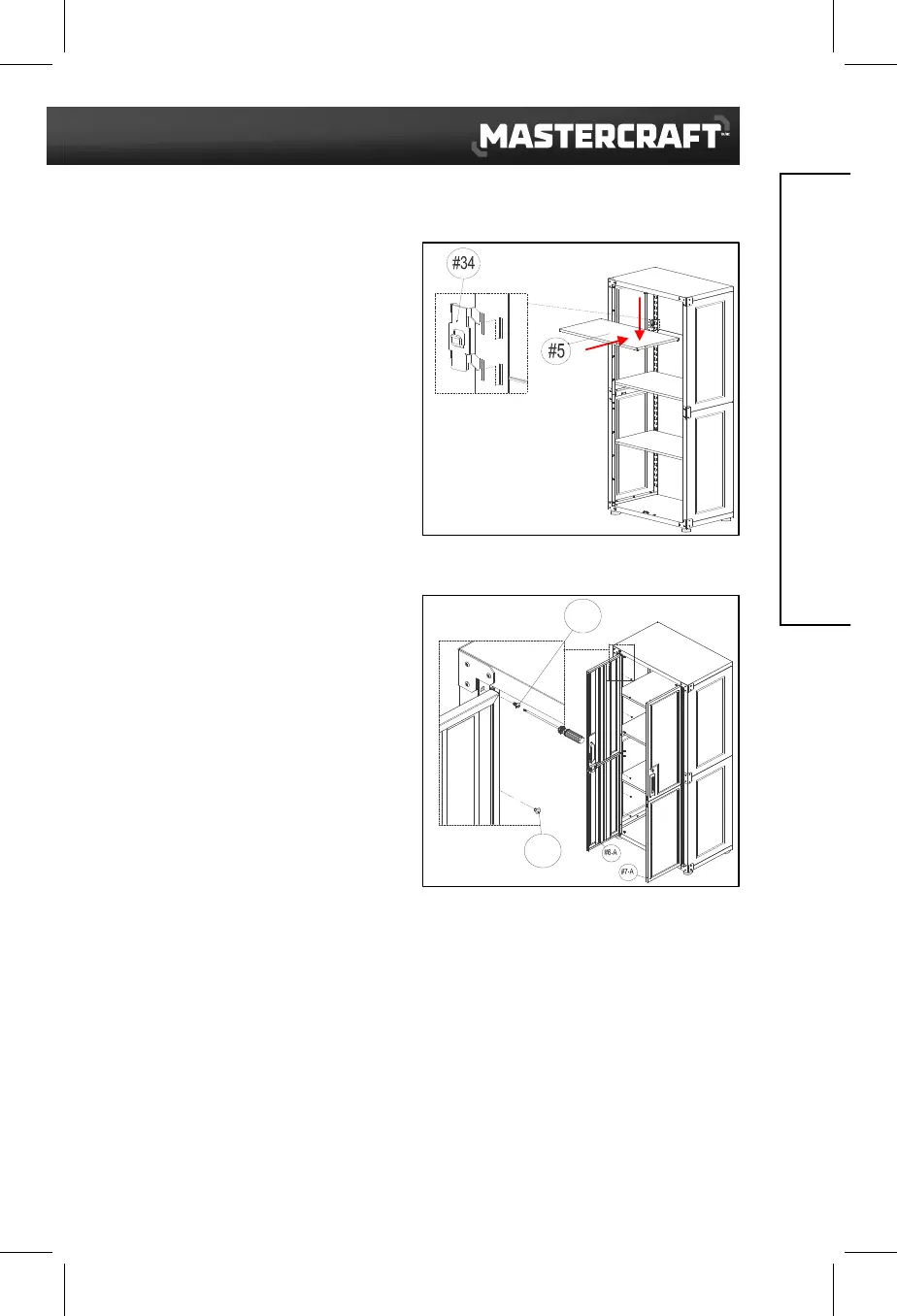

12. Install Middle Shelves (5)
1) Choose the desired height for each
middle shelf (5) inside cabinet. Place
the hooks (34) into the four side hook
slots of the cabinet body, and make
sure they are at the same height.
2) Place each middle shelf (5) into the
cabinet, and push it down onto the
hooks (34).
13. Install Left and Right Doors
(6-A and 7-A)
1) Attach left door (6-A) to left side
panel (1-A), and use 5 pcs screw F
(41) to secure. Use 6 pcs press knob
(63), 1 pc of screw F (41) at the top
side, 3 pcs of screw F (41) in the
middle, and 1 pc of screw F (41) at the
bottom. Press 6 pcs press knob (63)
into the other holes to further secure
the door panels.
Note: The screw holes on the door hinge have
tolerance, enabling the door to be adjusted and
centred in the door frame. Place top, middle and
bottom screws first. Don't tighten screws
completely — this may save time by avoiding
having to make slight adjustments for levelling
door panels later.
2) Install right door (7-A) the same
way.
#41
#63
ASSEMBLY INSTRUCTIONS
