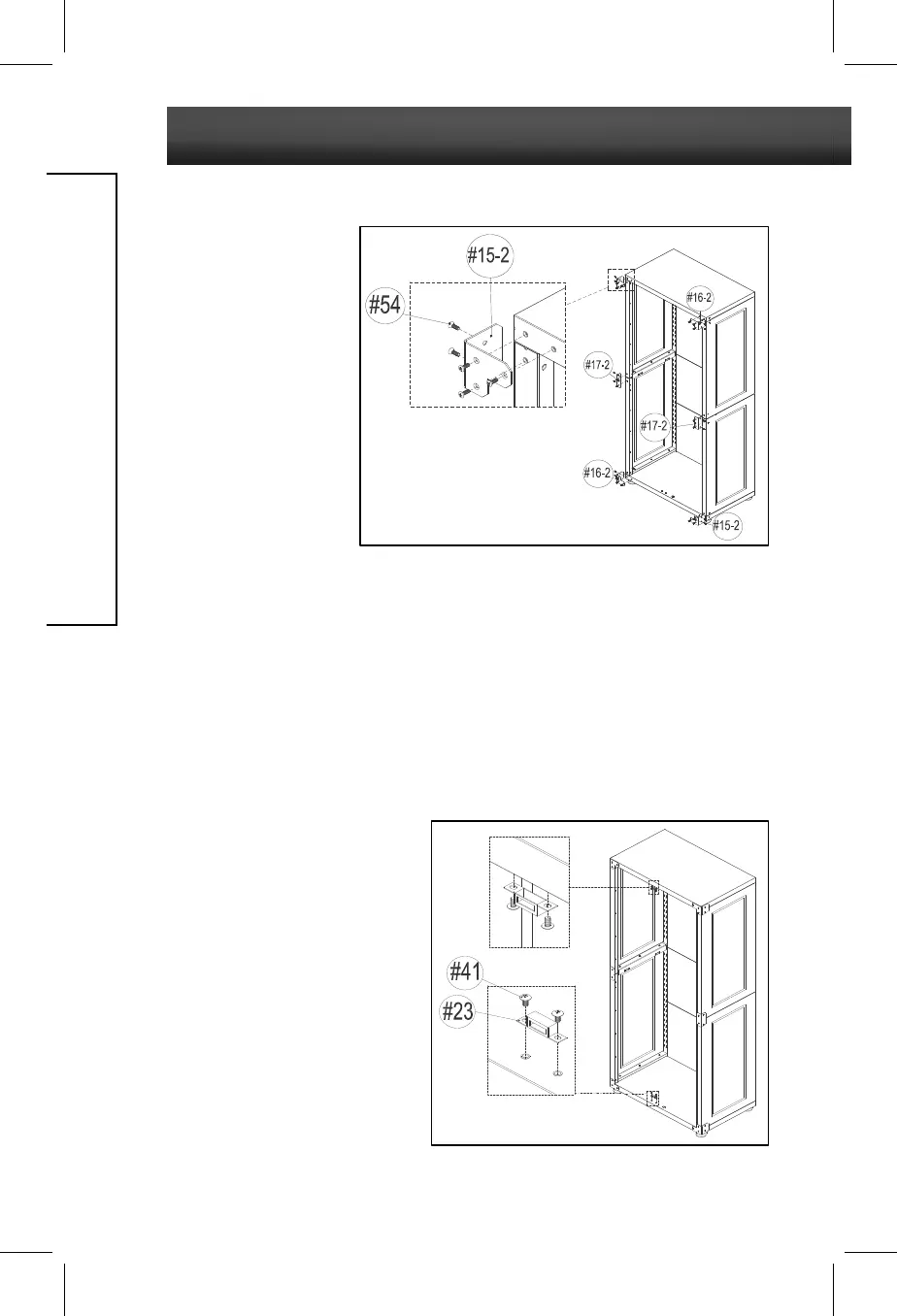

10. Install Corner Protections (15-2, 16-2 and 17-2)
1) Attach corner protection A (15-2) onto the cabinet bottom right side corner and
the top left side corner, and use 10 pcs screw N (54) to secure.
2) Attach corner protection B (16-2) onto the cabinet bottom left side corner and
the top right side corner, and use 10 pcs screw N (54) to secure.
3) Attach middle corner protection (17-2) to the middle of left side panel (1-A) and
right side panel (2-A), and use 8 pcs screw N (54) to secure.
11. Install Magnet (23)
Place magnet (23) onto top panel
(3) and bottom panel (4) facing the
front, and use 4 pcs screw F (41)
to secure.
Note: The black plate of the magnet
should be facing the front.
