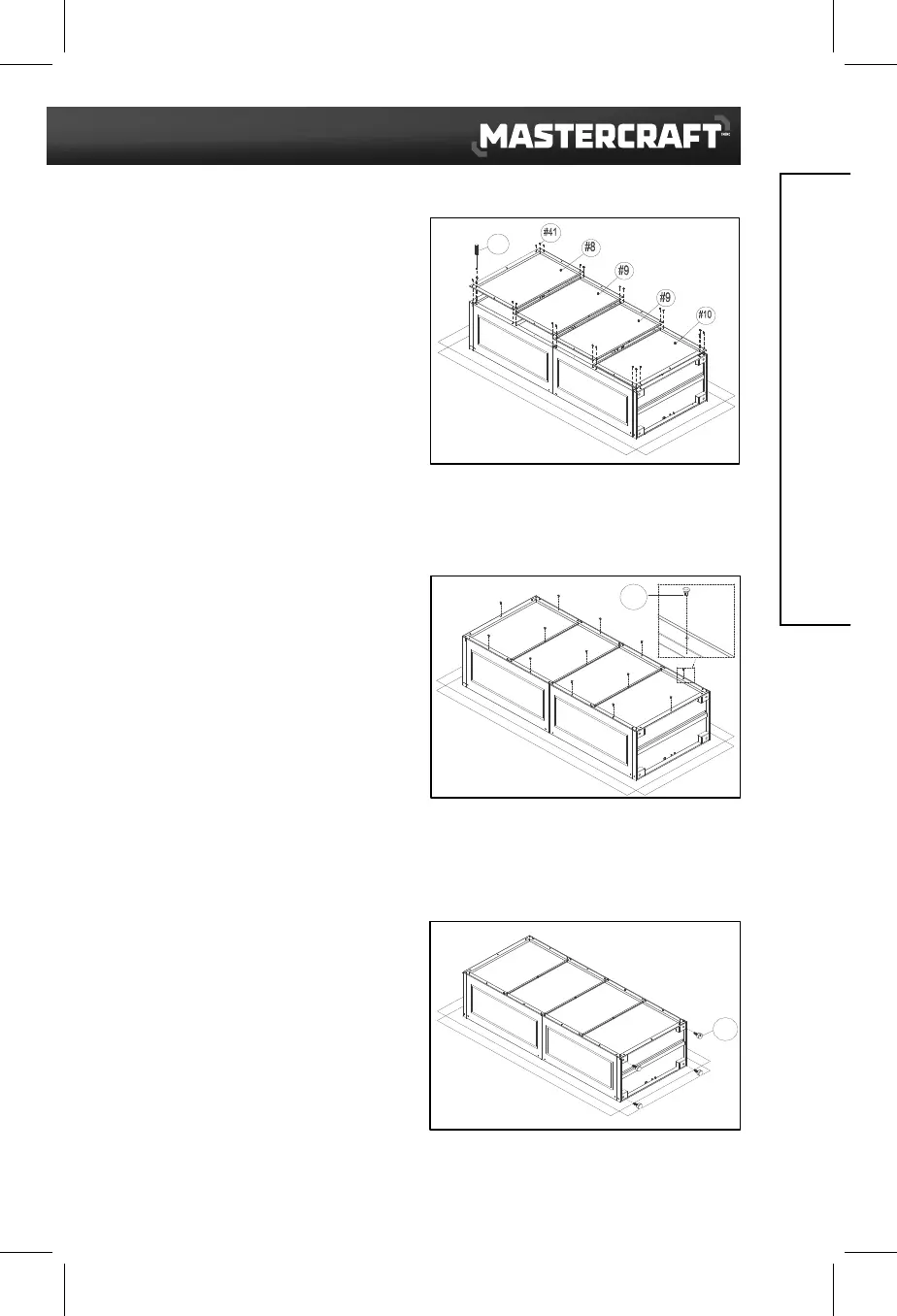

8. Install Back Panels
(8, 9 and 10)
1) Attach bottom back panel (10 ) onto
both left and right side panels (1-A2
and 2-A2) and bottom panel (4).
2) Attach both middle back panels (9)
above bottom back panel (10) the
same way. Place the groove of the
middle back panel (9) onto the top
edge of the bottom back panel (10).
3) Line up all the screw holes. use 24
pcs screw F (41) to secure each back
panel’s four sides to back of cabinet
left and right side panels (1-A and 2-A).
4) Using 13 pcs press knob (63), press
into the other holes to attach all back
panels.
Note: Do not fully tighten screw F (41) before
the press knobs (63) are secured.
9. Install Levelling Feet (6-1)
Install levelling feet (6-1) into the four
corners of bottom panel (4). Use
wrench (25) to tighten.
Note: Rotate/stand cabinet upright after this
step.
