NOTE: At this step, DO NOT use power tool. Otherwise, product damage may be
caused. A magnetic cross-head screwdriver is preferred.
10
7
1
2
3
4
STEP 11 ASSEMBLE THE DRAWERS (continued)
•

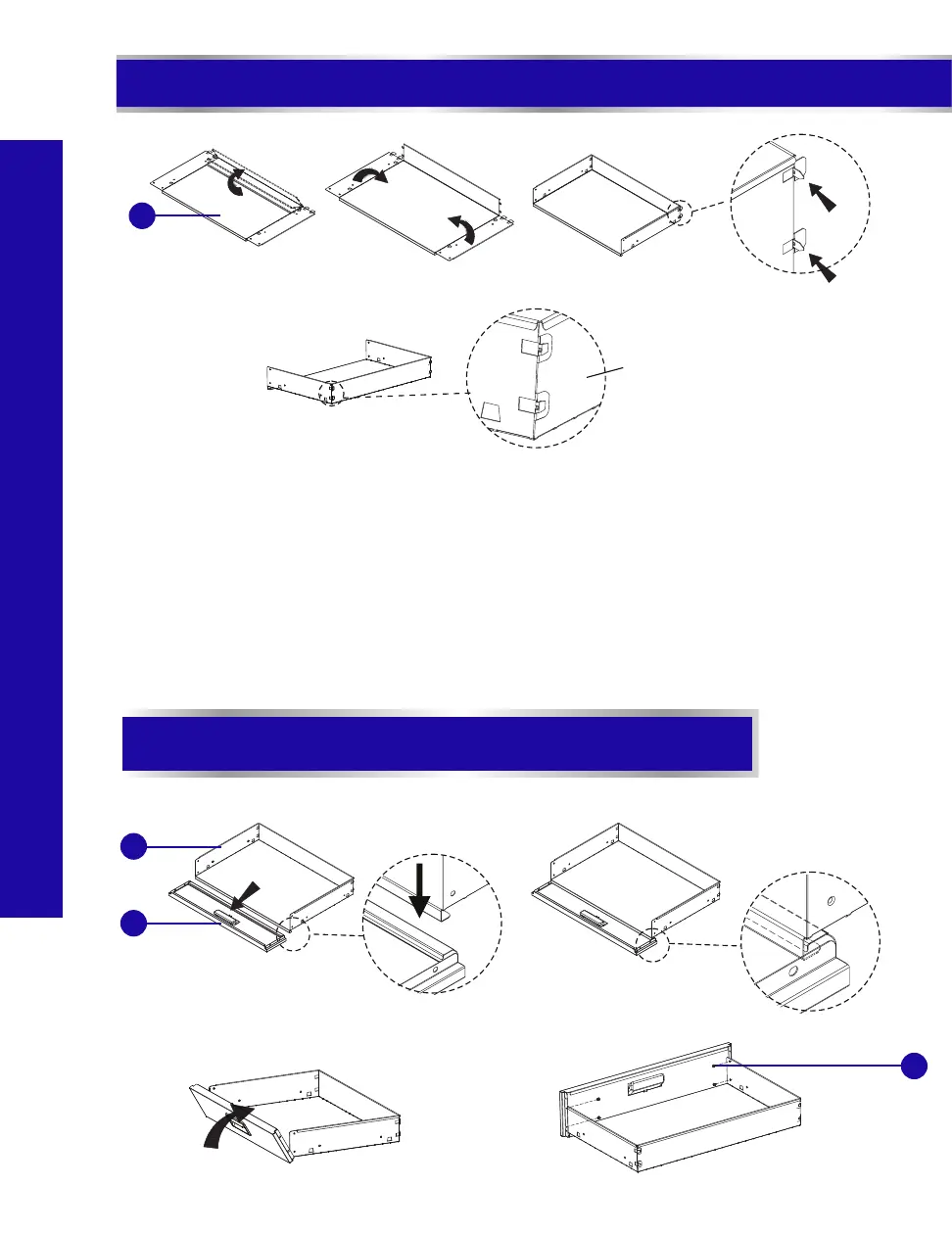

Lay down the drawer front panel (10 & 12 & 13) on its face with a soft mat underneath for
protection.
Put the drawer body's front onto the drawer front panel.
•
Slide the drawer body's front bottom bended edge into the bottom groove of the drawer
front panel.
•
•
Turn up the drawer front panel upright to 90°
Fasten the drawer front panel and side panels together by screwing four
M4 x 6 cross-head pan head tapping bolts (7).
•
•
Repeat the same procedure to assemble all drawers.
6
1 2
3
4
drawer back
6
model no. 068-1577-2 I contact us 1-800-689-9928
ASSEMBLY INSTRUCTIONS
