STEP 1 ATTACH THE SIDE AND BOTTOM PANELS
ASSEMBLY INSTRUCTIONS
TOOLS REQUIRED FOR ASSEMBLY
• Hex wrench (38)
• Cross-head Screwdriver (not included; magnetic is preferable)
• Measuring Tape (not included)
Please wear gloves during the whole assembly process.
NOTE: Assemble on a flat surface. A piece of cardboard is recommended to keep the product
from being scratched during assembly.
6
model no. 068-1577-2 I contact us 1-800-689-9928
ASSEMBLY INSTRUCTIONS
• Power Drill (not included)

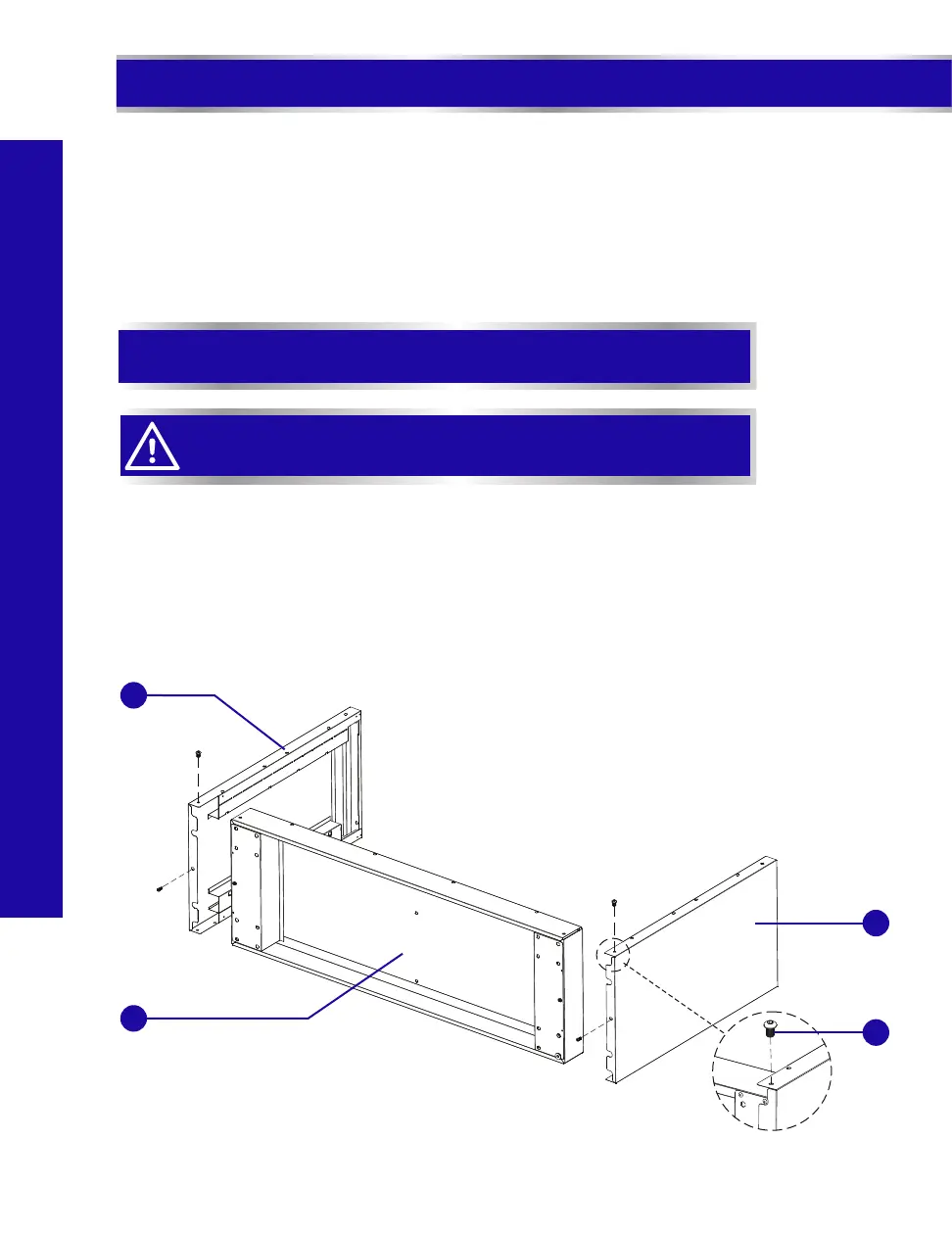

Lay the bottom panel (28) on its front and attach the side panels (3 & 32) to the bottom
panel (28) with two M6 x 16 hex socket head screws (4) through the holes on bottom left
and right corners. D0 NOT tighten.
Back
•
• Screw two M6 x 16 hex socket head screws (4) at the middle of bottom. Tighten securely.
3
28
32
4
