STEP 3 ATTACH THE CENTRE PANEL
STEP 2 INSTALL THE CASTORS
NOTE: For easy movement, the swivel casters are suggested to be installed on the same side
as the side handle.
ASSEMBLY INSTRUCTIONS
7

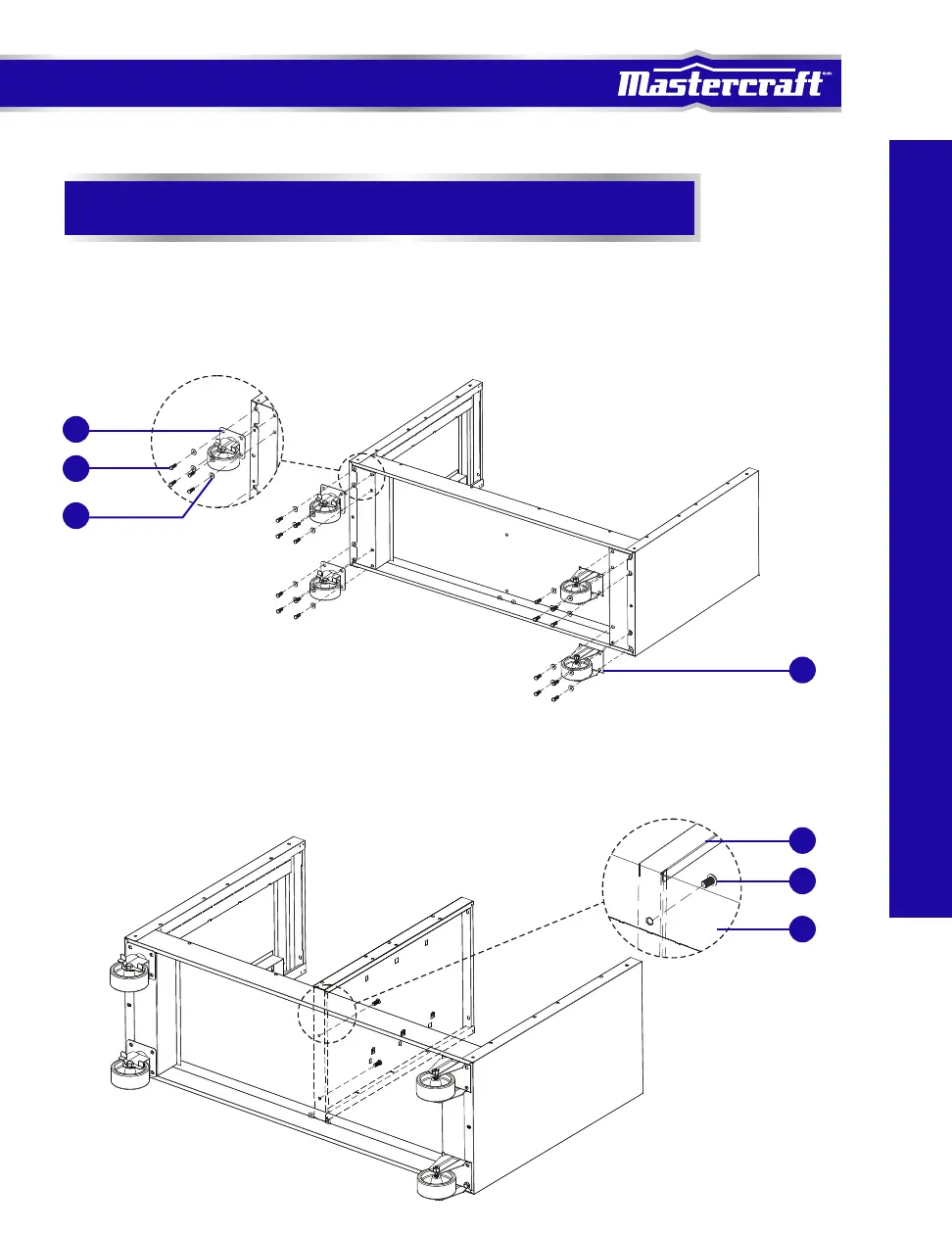

Position the two rigid castors (27) on one side of the bottom of the cabinet. Insert the M8 x 25
hex bolts (25) through washers (26), then through the castors and into the bottom of the cabinet.
Tighten securely.
•
Repeat for the two swivel castors (14) on the other side of the cabinet.
•
Attach the centre panel (34) to the bottom panel (28) with two M6 x 16 hex socket head screws (4).
Tighten securely.
14
25
26
27
34
4
28
