Convenience Controls

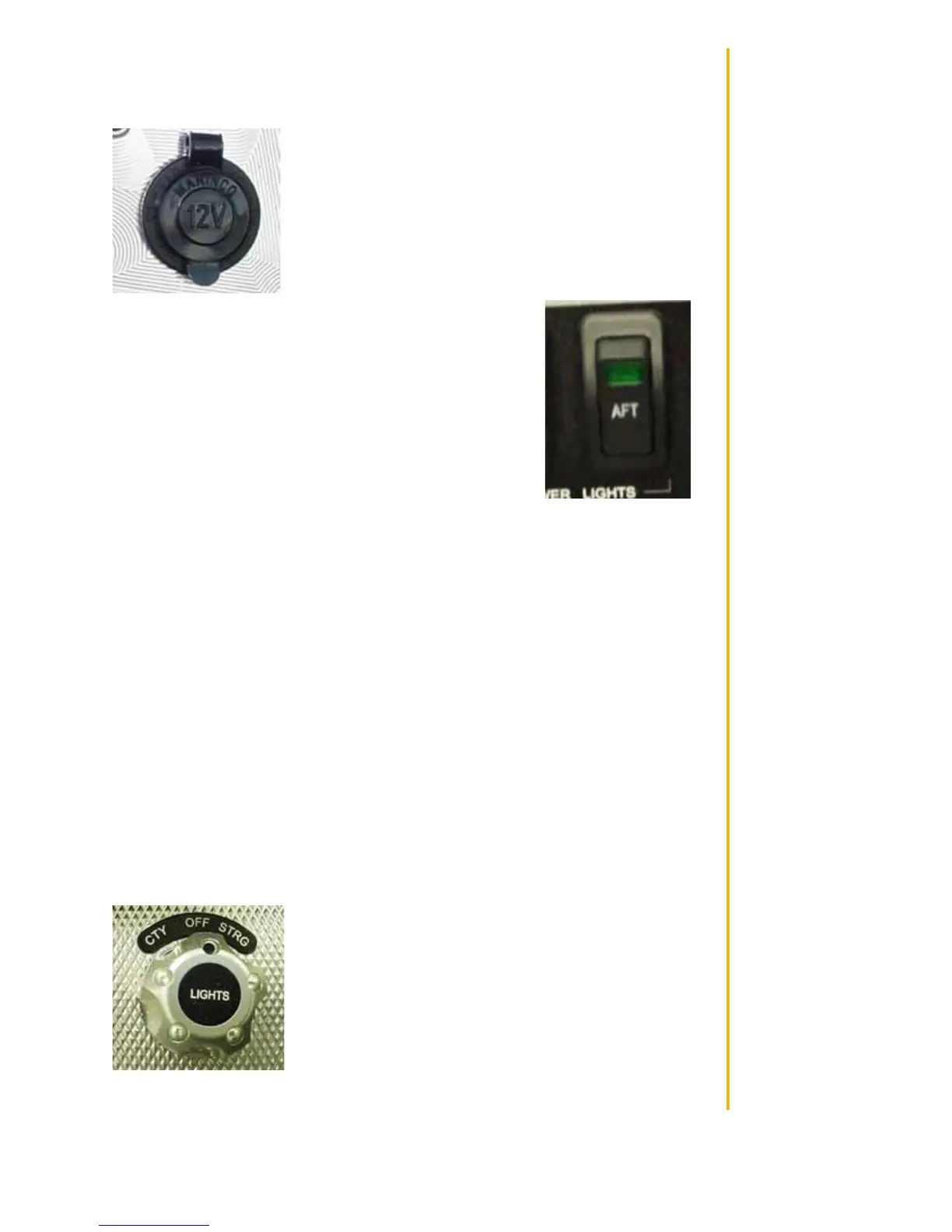

12-Volt Receptacle
(All Models; Some May Have Multiple Receptacles)
MasterCraft boats have one (1) or more 12-volt recep-
tacles. Examine your boat to determine whether there are
additional outlets. Prior to plugging any accessory into a
12-volt receptacle, ensure that the device is designed for
use when connected to a 12-volt receptacle and will not be
damaged by the connection to the receptacle.
Aft Light Switch
(Models Equipped with Optional Tower Lights)
The location of the aft light switch (where equipped) will
vary by model and should be located by the operator. In some
instances, there may be two (2) switches. In all instances, the
lights operate by using two-position switches, one position for
ON and the other for OFF.
AM/FM Stereo, Remote Control, iPod
and MP3 Player Connections
(Stereo standard installation on XSeries; Optional on other models; Remote Control on
lower left of dash in all models except 190, 197 and XStar; on lower right of dash in XStar;
optional remote on transom; iPod and MP3 Player Connections with stereo installation)
Boats may be equipped with a range of entertainment opportunities from radios and
CD players to connections for personal devices. Radios are built-in to the internal por-
tion of the deck, except for ProStar 190, 197 and XStar boats, where the radio is located
inside the glovebox. Remote controls are in the lower left portion of the dash (except the
XStar, where it is in the lower right portion of the dash), and optional transom remotes
may also be available.
The iPod interface option allows the unit to simply be plugged in and run o the boat’s
electrical system. An optional plug-in location for MP3 players is available. Be aware that
all such devices are a drain on the boat’s battery and electrical system. Care should
be taken to avoid excessive usage of such devices and by responding to any alarms
that sound so that the boat’s battery(ies) does not become fully discharged.
Another option is a wireless stereo remote that will float if accidentally dropped over-
board. The remote can also double as a key fob for a limited number of keys.
The stereo and components come with a separate manual explaining operation of
the devices. Please review and become familiar with the equipment.
Courtesy/Storage Lights Switch
(All Models)
This switch is a three-position switch that activates the
courtesy lights or storage compartment within the boat.
Turning the switch to the left will turn the courtesy lights
ON, and turning it to the right will turn the lights ON in the
storage compartment. The middle position is OFF for both
sets of lights.
2013 MasterCraft Owners Manual • Electronic Instrumentation • Page 3-20
