20V max* LITHIUM-ION BATTERY CHARGER - 054-3126-6
15

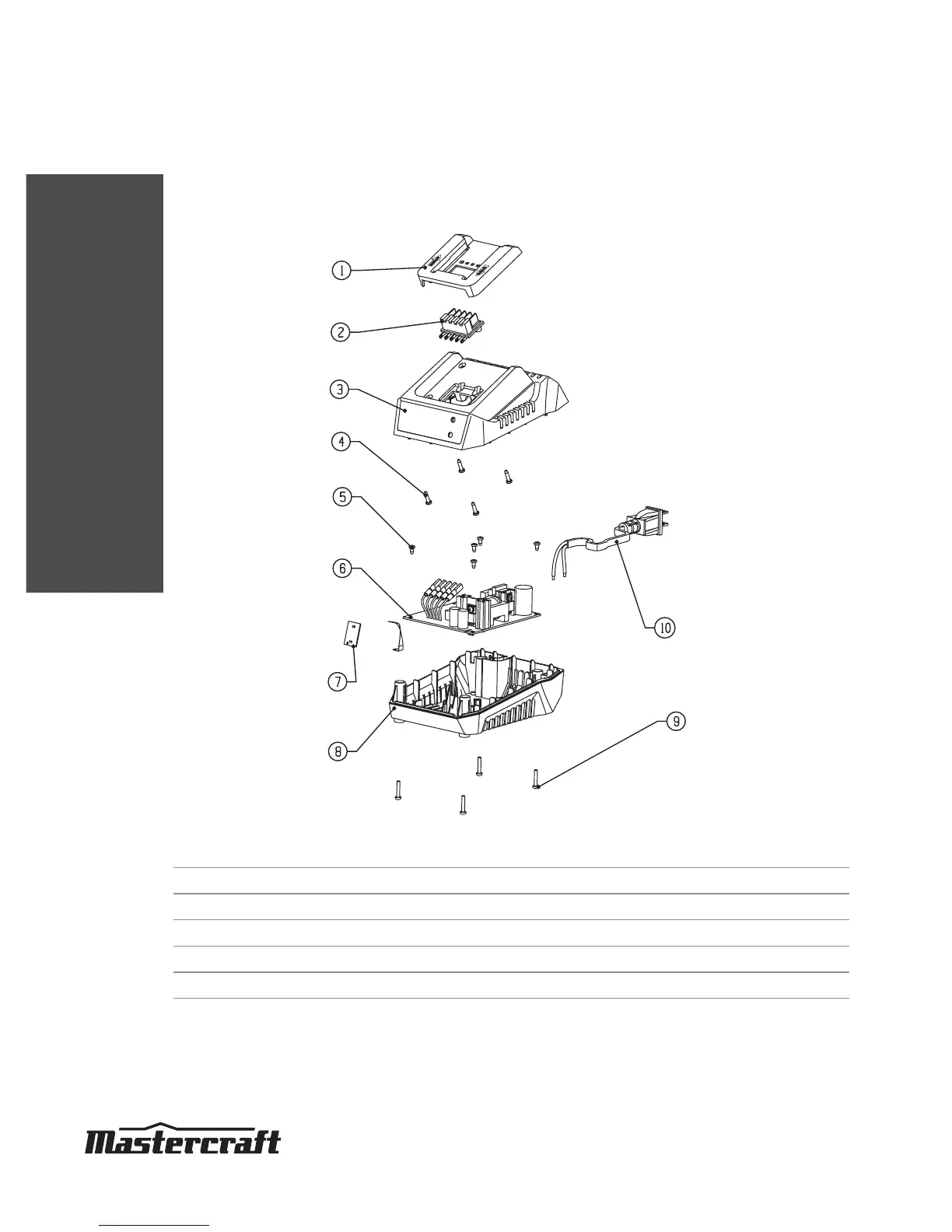

Exploded view
No. Part No. Description No. Part No. Description
1 3125529000 Drive Bracket 6 4890750000 PCB Assembly
2 2823639000 Wiring Harness Assembly 7 4890721000 PCB Assembly
3 3125527000 Upper Housing 8 3125528000 Lower Housing
4 5610012000 Tapping Screw 9 5610218000 Screw
5 5610016000 Tapping Screw 10 4810002000 Power Cord & Plug
If any parts are missing or damaged, or if you have any questions,
please call the Toll-free Helpline, at 1-800-689-9928.
PARTS LIST
To Next Page
