MasterCraft 20V max* LITHIUM-ION User Manual

20V max* LITHIUM-ION 1.3 AH RECHARGEABLE BATTERY - 054-3124-0
8

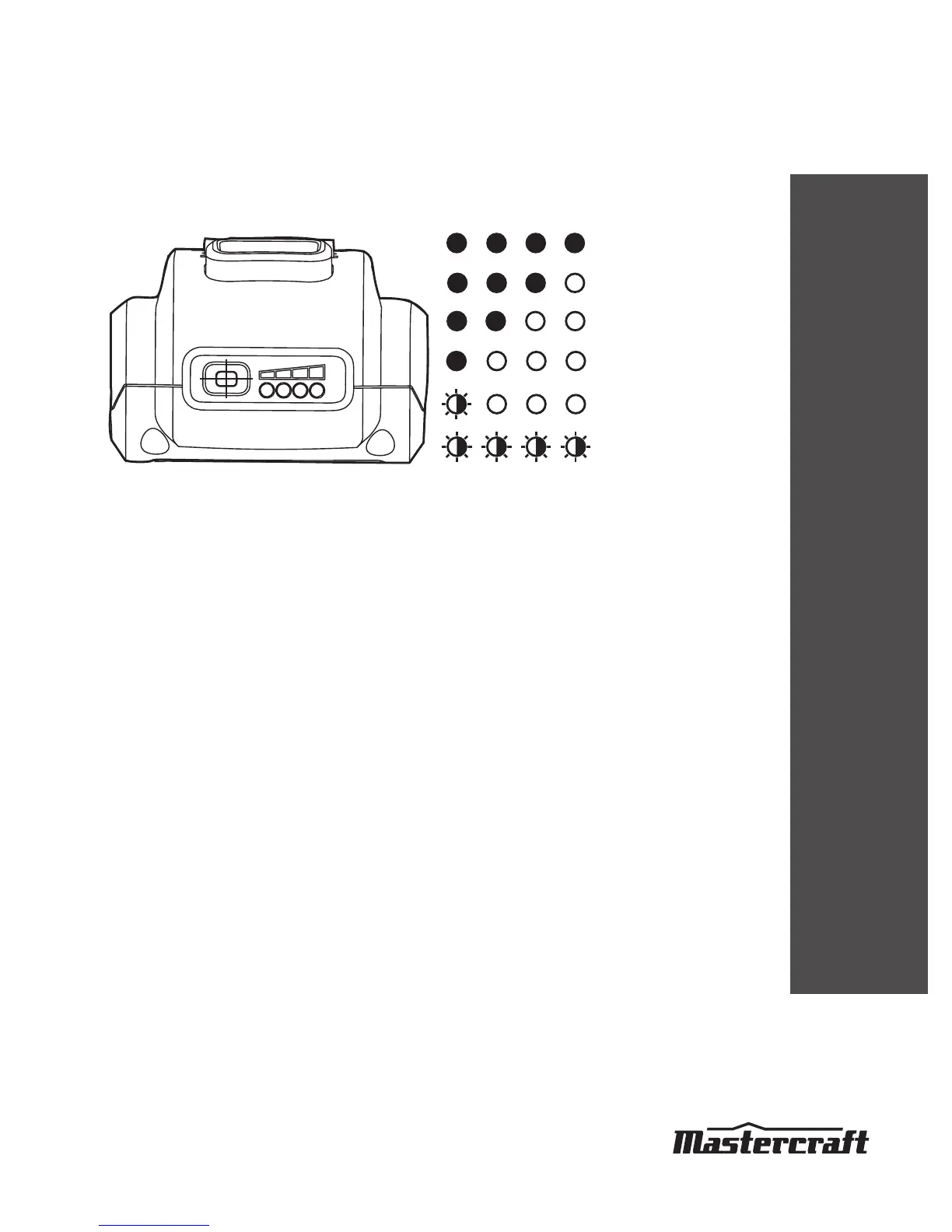

Fuel gauge
80-100% Charge
60-79% Charge
40-59% Charge
20-39% Charge
Under 20% Charge
Completely Discharged
This Lithium-Ion battery pack is equipped with a Fuel Gauge, which displays the remaining charge of
the battery pack. Press the Fuel Gauge button to display the LED lights. The LED lights will stay lit for
approximately 4 seconds.
NOTE: The Fuel Gauge can be used when the battery pack is attached to or removed from the tool.
Low capacity warning
If one LED on the Fuel Gauge begins to flash, the battery pack’s charge is under 20% capacity and
should be recharged.
Unlike other battery types, Lithium-Ion batteries deliver fade-free power for their entire run time. The
tool will not experience a slow, gradual loss of power as you work. To signal that the battery pack is at
the end of its run time and needs to be charged, power to the tool will drop quickly. The Fuel Gauge will
begin to display four flashing LED lights when it is completely discharged. When this happens, remove
the tool from the work piece, remove the battery pack and charge the battery pack as needed.
OPERATING INSTRUCTIONS

MasterCraft 20V max* LITHIUM-ION Specifications

General

Brand	MasterCraft
Model	20V max* LITHIUM-ION
Category	Battery Charger
Language	English
