2017 OWNERS MANUAL / 66
30 33 34 35 36 37 38 39 40 41 4342 44 45 46 47 48
01 02 03 12 141306 10 1105 1504 1808 09
32
16 17 19 20 21 22 23 24 25 26 27 28 2907
31

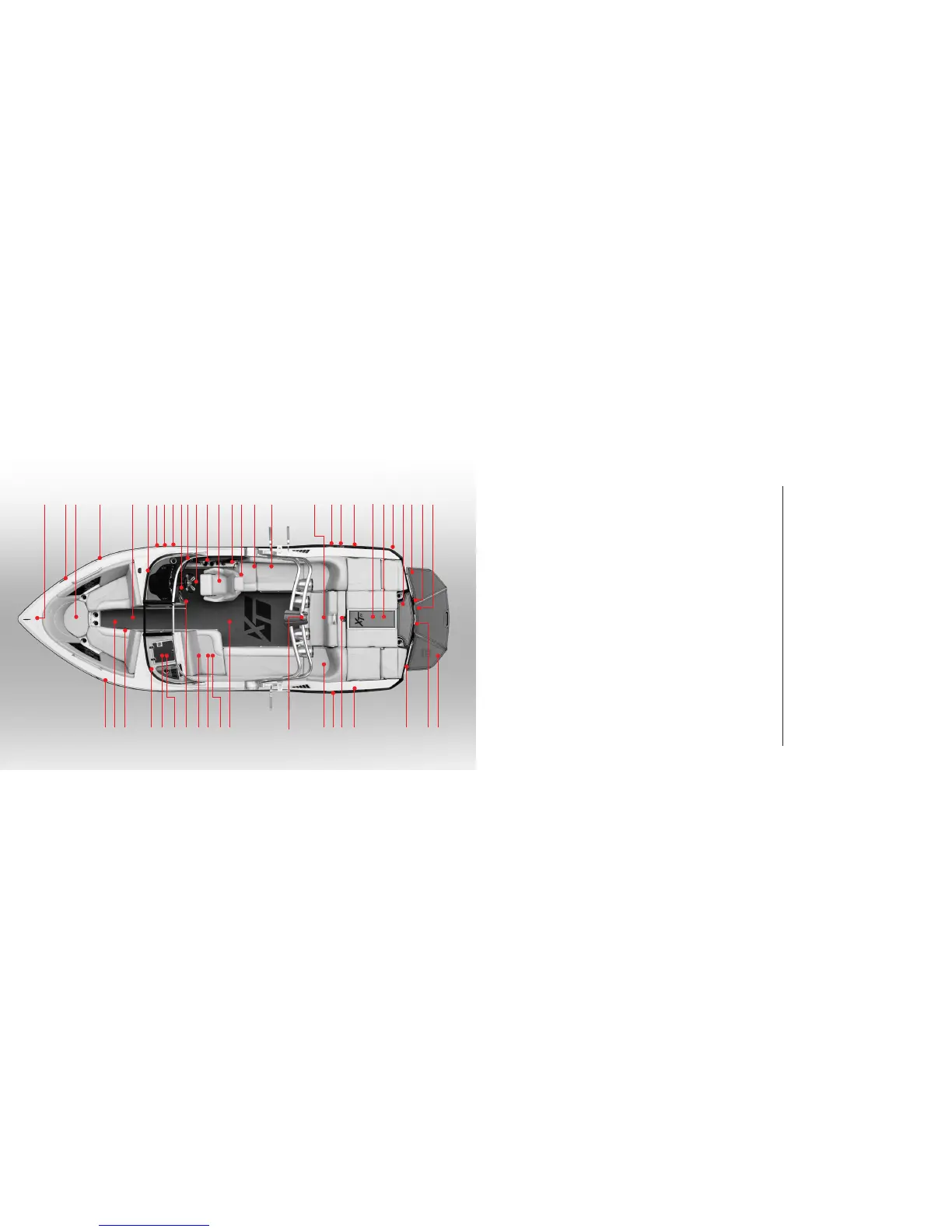

FEATURES
01. Bow cleat
02. Horn
03. Anchor storage
04. Navigation light
05. Ballast tank below deck
06. Circuit breaker panel (on kick panel beneath
instrument panel)
07. Bilge thru-hull
08. Midship cleat
09. Ballast thru-hull vent
10. Adjustable mirror
11. Instrument panel (details in Video Display
Gauge section)
12. Steering wheel
13. Shift/throttle control
14. Heated seat (where equipped)
15. Fire suppression unit manual override
16. Subwoofer (where equipped)
17. Garbage can
18. Cooler (under seat)
19. Reversible seating
20. Stern cleat
21. Fuel tank fill
22. Ballast thru-hull vent
23. Engine compartment
24. Automatic fire extinguisher
25. Bilge thru-hull
26. Transom stereo remote (where equipped)
27. Engine flush valve (where equipped)
28. Underwater lights (two, where equipped)
29. Wake adjustment plate (where equipped)
30. Navigation light
31. Bow filler cushion (where equipped)
32. Subwoofer
33. Amp (where equipped)
34. iPod interface (where equipped)
35. Glove box
36. Stereo remote (on dash)
37. Batteries (under seat)
38. Hand-held fire extinguisher (beneath
observer seat)
39. Heated observer seat (where equipped)
40. Center drain plug (under inspection plate)
41. Navigation Light
42. Batteries ON-OFF switch (under seat)
43. Stern Cleat
44. Ski pylon
45. Ballast thru-hull vents
46. Engine compartment exhaust (each side)
47. Transom drain plug
48. Swim platform
SPECIFICATIONS
Length of Boat 23”4’
Width Amidship 102”
Boat Weight 5,000 lbs.
Length of Boat w/Platform 25’5
Towing Length 28’ 5”
Towing Width 102”
Fuel Capacity 55 gallons
Maximum Capacity 16 people
or 2,265 lbs.
Bow: 5 people or 700 lbs.
Weight must be evenly distributed.
XT23
