MasterCraft NXT22 2017 User Manual

2017 OWNERS MANUAL / 64
01 02 03
05
11
13
12
08
09 1007 14
06
04
15 17 1816 19 20 21
22
27 28
313029 32 33 34 35 36 37 38 39 40
41
42 43
44
23 24 25
45
4746
26
48 5049

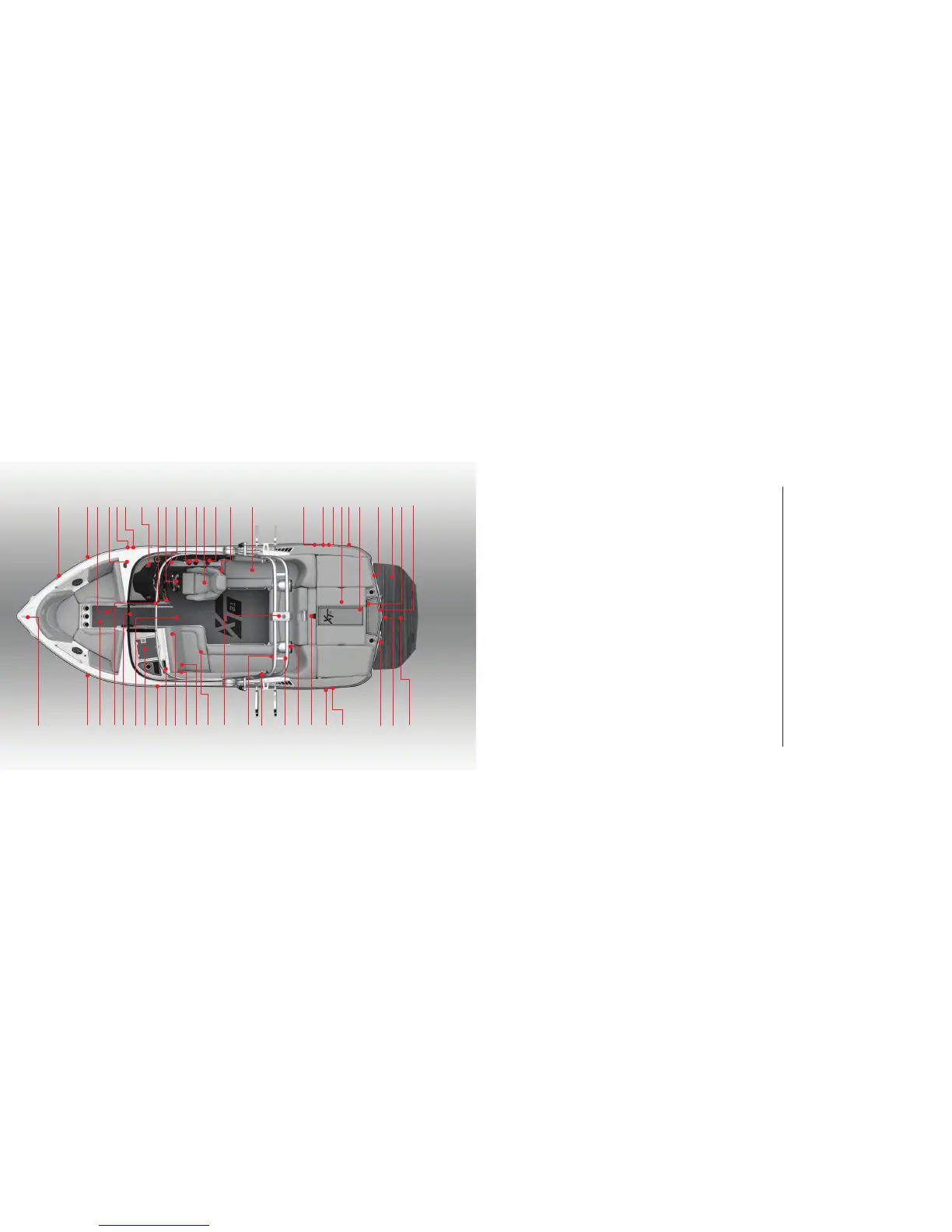

FEATURES
1. Horn
2. Navigation light
3. Ballast tank below floor board
4. ZeroOFF GPS puck
5. Bilge thru-hull outlet
6. Ballast thru-hull vent
7. Dash tweeter speakers (where equipped)
8. Stereo dash remote
9. Steering wheel
10. Instrument panel (details in Video Display Gauge
section)
11. Shift/throttle control
12. Kill switch lanyard
13. Heated seat (where equipped)
14. Fire suppression unit manual override
15. Subwoofer (where equipped)
16. Cooler (under seat)
17. Fuel tank fill
18. Ballast thru-hull vent
19. Stern cleat
20. Engine compartment
21. Bilge thru-hull outlet
22. Automatic fire extinguisher (inside engine
compartment)
23. Freshwater engine flush port (where equipped)
24. Gen2 wake shaping devices (one on each side
below swim platform, where equipped)
25. Transom stereo remote (where equipped)
26. Underwater lights (two, where equipped)
27. Bow Cleat
28. Navigation light
29. Bow filler cushion (where equipped)
30. Mirror
31. Walk-thru door and windshield
32. Center drain plug (under inspection plate)
33. Glove box with iPod interface
34. Cleat
35. Stereo head unit
36. Batteries (inside observer seat storage)
37. Hand-held fire extinguisher (inside
observer seat storage)
38. Amp (where equipped)
39. Heated observer seat (where equipped)
40. Tower tow rope attachment and light
41. Battery ON-OFF switch
42. Surf tow point (both sides)
43. Tower with swivel board racks
44. Tower Speakers (where equipped)
45. Ski pylon
46. Ballast thru-hull vent
47. Cleat
48. Transom grab handles (two)
49. Transom drain plug
50. Swim Platform (teak or fiberglass as
equipped)
SPECIFICATIONS
Length of Boat 21’ 4”
Width Amidship 98”
Boat Weight 4,800 lbs.
Length of Boat w/Platform 23’ 5”
Towing Length 26’ 1”
Towing Width 102”
Fuel Capacity 51 gallons
Maximum Capacity 14 people
or 2,000 lbs.
Bow Capacity: 4 people or 600 lbs.
Weight must be evenly distributed.
