2017 OWNERS MANUAL / 62

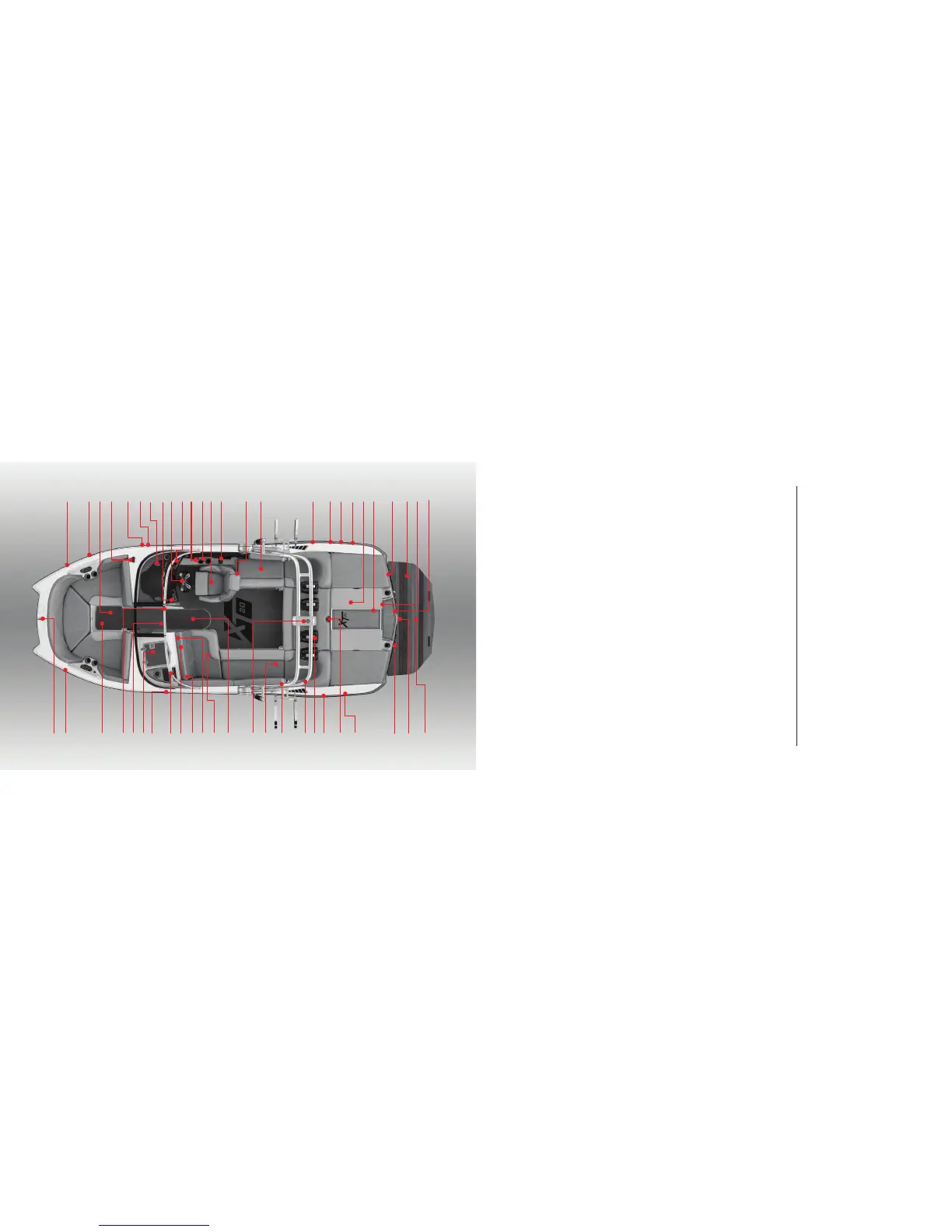

FEATURES
1. Navigation light
2. Horn
3. Ballast tank below floor board
4. ZeroOFF GPS puck
5. Bilge thru-hull outlet
6. Ballast thru-hull vent
7. Dash tweeter speakers (where equipped)
8. Stereo dash remote
9. Steering wheel
10. Instrument panel (details in Video Display Gauge
section)
11. Shift/throttle control
12. Kill switch lanyard
13. Heated seat (where equipped)
14. Fire suppression unit manual override
15. Subwoofer (where equipped)
16. Cooler (under seat)
17. Ballast thru-hull vent
18. Fuel tank fill
19. Stern cleat
20. Bilge thru-hull outlet
21. Engine compartment
22. Automatic fire extinguisher
23. Freshwater engine flush port (where equipped)
24. Surf tabs (one on each side below swim platform)
25. Transom stereo remote (where equipped)
26. Underwater lights (two, where equipped)
27. Bow Cleat
28. Navigation light
29. Bow filler cushion (where equipped)
30. Mirror
31. Walk-thru door and windshield
32. Glove box with iPod interface
33. Cleat
34. Stereo head remote
35. Batteries (inside observer seat storage)
36. Hand-held fire extinguisher (inside
observer seat storage)
37. Amp (where equipped)
38. Heated observer seat (where equipped)
39. Center drain plug (under inspection plate)
40. Tower tow rope attachment and light
41. Battery ON-OFF switch
42. Surf tow point (both sides)
43. Tower with swivel board racks
44. Tower Speakers (where equipped)
45. Ballast thru-hull vent
46. Ski pylon
47. Cleat
48. Transom grab handles
49. Transom drain plug
50. Swim Platform
SPECIFICATIONS
Length of Boat 20’0”
Width Amidship 98”
Boat Weight 4,500 lbs.
Length of Boat w/Platform 22’2”
Towing Length 28’6”
Towing Width 102”
Fuel Capacity 45 gallons
Maximum Capacity 11 people
or 1,600 lbs.
Bow Capacity: 4 people or 600 lbs.
Weight must be evenly distributed.
XT20
01 02 03
05
11
13
12
08
09
1007 14
06
04
15 17 1816 19 20 21
22
27 28
313029 32 33 34 35 36 37 38 39 40 41 42 43 44
23 24 25
45
4746
26
48 5049
