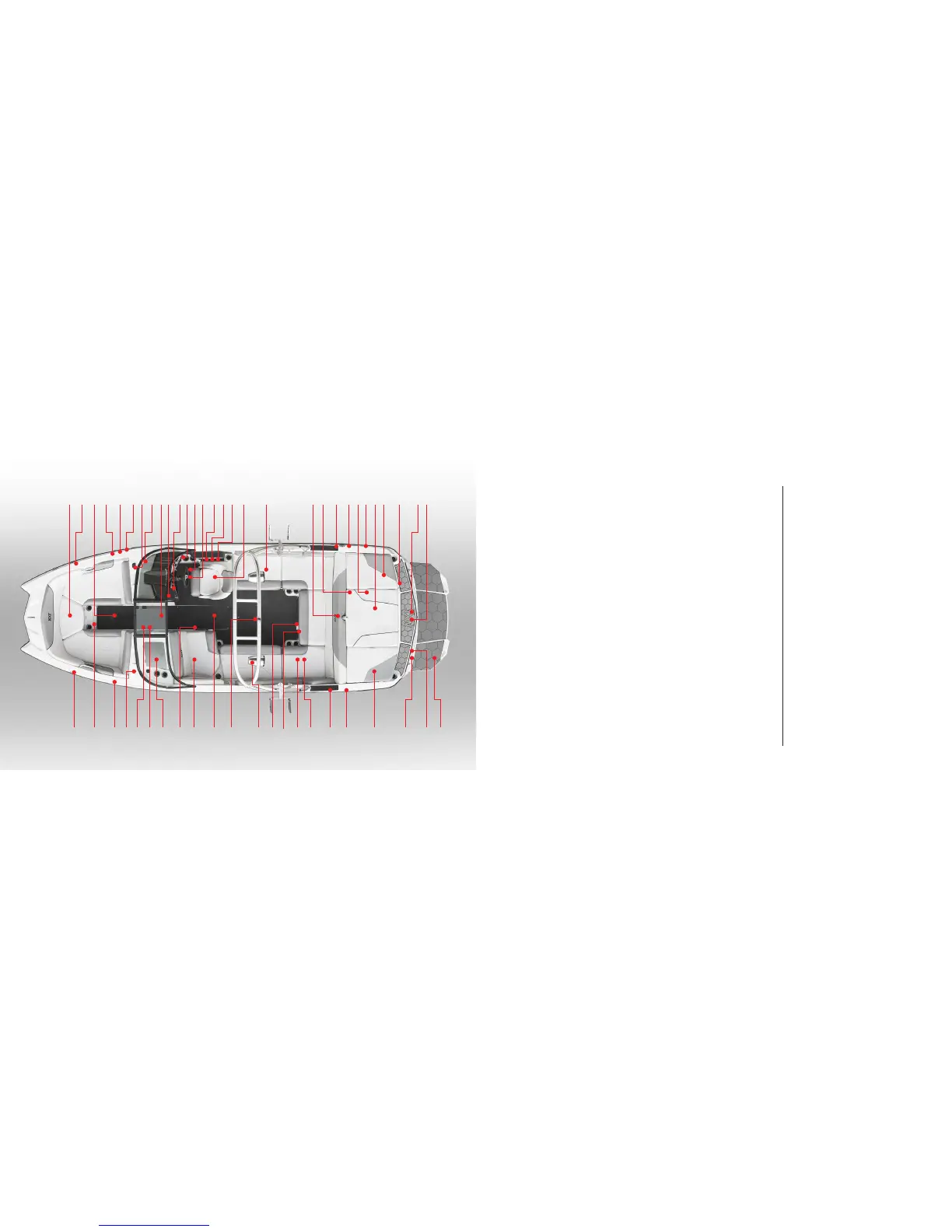

FEATURES
01. Anchor storage compartment
02. Navigational light
03. Access to forward bilge pump
04. Bilge thru-hull
05. Ballast thru-hull vent
06. Cleat (where equipped)
07. GPS antenna
08. Circuit breaker panel (access under helm)
09. Walk-thru door (where equipped)
10. Mirror
11. Stereo + iPod interface (on dash, where
equipped)
12. Instrument panel (see Video Screen and
Switches information for details)
13. Heater vent (on kick panel, where equipped)
14. Tilt steering wheel
15. Shifter/throttle control
16. Emergency safety stop switch
17. Fire suppression unit manual override
18. Adjustable driver’s seat
19. Cooler (beneath seat)
20. Ski pylon (where equipped)
21. Sea strainer (where equipped)
22. Fuel tank filler
23. Cleat (where equipped)
24. Automatic fire extinguisher (inside engine
compartment)
25. Ballast thru-hull vent
26. Engine compartment
27. Storage compartment + access to starboard
side tsunami pump
28. Transom stereo remote (where equipped)
29. Attitude adjustment plate (where equipped,
beneath swim platform)
30. Transom drain plug
31. Cleat (where equipped)
32. Courtesy light
33. Sirius radio antenna (where equipped)
34. Amp
35. Ski locker + access to center tank tsunami
pumps
36. Walk-thru door
37. Glove box
38. Subwoofer (where equipped)
39. Hand-held fire extinguisher (beneath
observer seat)
40. Center drain plug (accessible under carpet)
41. Tower tow rope attachment and light
42. Tower (speakers, where equipped)
43. 12-volt receptacle
44. Courtesy light
45. Battery ON-OFF switch (where equipped)
46. Battery(ies)
47. Ballast thru-hull vent
48. Cleat (where equipped)
49. Storage compartment + access to port side
tsunami pump
50. NXT Wake Shaping devices (two devices,
one on each side)
51. Engine exhaust (two, one on each side
beneath swim platform)
52. Swim platform
SPECIFICATIONS
Length of Boat 22’ 0”
Width Amidship 98”
Boat Weight 4,200 lbs.
Length of Boat w/Platform 23’ 10”
Towing Length 27’ 4”
Towing Width 102”
Fuel Capacity 50 gallons
Maximum Capacity 14 people
or 2,312 lbs.
Bow: 4 people or 600 lbs.
Weight must be evenly distributed.
Storage space is located under:
Observer’s seat, bow seating, aft and wrap-
around seating, port and starboard sun pads.
NXT22
