MasterCraft NXT22 2017 User Manual

2017 OWNERS MANUAL / 72

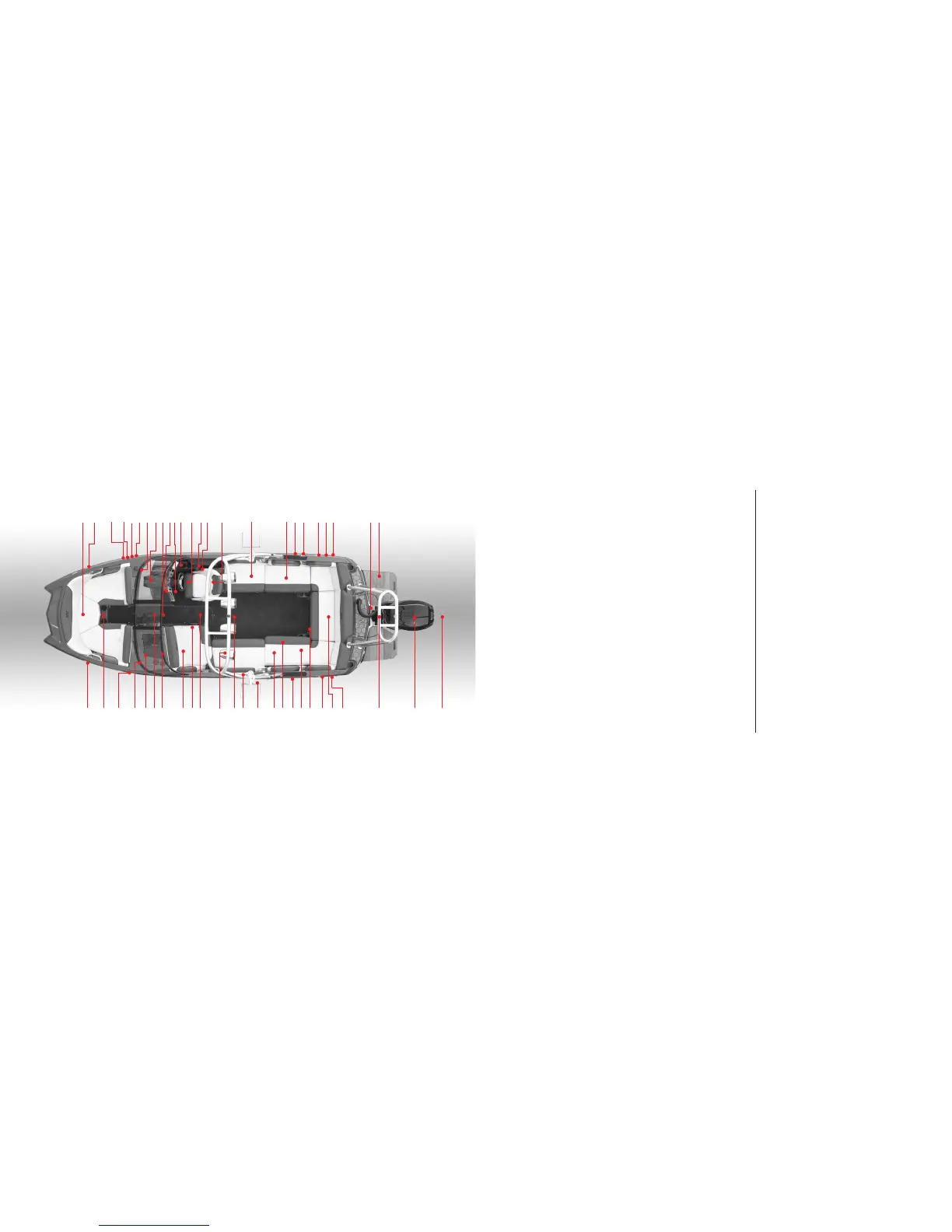

01. Anchor storage compartment
02. Navigation light
03. Bilge thru-hull
04. Ballast thru-hull vent (where equipped)
05. Cleat (where equipped)
06. Ballast pump out (where equipped)
07. GPS antenna
08. Circuit breaker panel (access under helm)
09. Walk-thru windshield
10. Mirror
11. Stereo + iPod interface (where equipped)
12. Instrument panel
13. Steering wheel
14. Shifter/throttle control/trim
15. Emergency safety stop switch
16. Adjustable driver’s seat
17. Cooler (in seat)
18. Ballast tank access (where equipped)
19. Ballast vent (where equipped)
20. Fuel tank fill
21. Cleat (where equipped)
22. Ballast tank pump out (where equipped)
23. Bilge thru-hull
24. Engine Mounting Bracket
25. Swim platform (garapa wood only)
26. Navigational light
27. Courtesy light
28. Cleat (where equipped)
29. Sirius radio antenna (where equipped)
30. Amp (where equipped)
31. Ski locker + access to center ballast tanks
32. Glove box
33. Hand-held fire extinguisher (under observer seat)
34. Subwoofer (where equipped)
35. Center drain plug (under carpet)
36. Speakers (where equipped)
37. Tow rope attachment, and light
38. Tower (where equipped)
39. Board racks (where equipped)
40. Battery(ies) (under seat)
41. Battery ON-OFF switch
42. Ballast thru-hull vent (where equipped)
43. Ballast tank access (where equipped)
44. 12-volt receptacle
45. Cleat (where equipped)
46. Fuel line/ballast access
47. Ballast pump out (where equipped)
48. Tow cage (where equipped)
49. Engine
50. Rope deflector included with tower, not a tow
point (not pictured)
Length of Boat 20’0” [6.1 m]
Width Amidship 91” [231.1 cm]
Boat Weight 3,550 lb [2,517.4 kg]
Boat Length w/ Motor Trimmed Down
23’5” [7.1 m]
Boat Length w/ Motor Trimmed Up
24’7” [7.5 m]
Towing Length 28’ 3” [8.5m]
Towing Width 100” [256.5 cm]
Fuel Capacity 45 gal [170.3]
Maximum Capacity 12 people
or 1,750 lb [793.8 kg]
Maximum Capacity Gear, Persons,
Motor 2,500 lb [1134 kg]
Maximum Engine Horsepower 225 HP
Bow: 3 people or 450 lb [204.1 kg]
Weight must be evenly distributed.
Storage space is located under: observer’s seat,
bow seating, aft and wrap-around seating.
01 02 03
04
06 07 08 09 10 11 12 13 14 1615 17
19
26 27 28 29 31 32
34 35 38 40
41 43
33
20
21
22 23 25
37 44 45
48
42 4746
05
30
18
49
24
36
39
50
FEATURES SPECIFICATIONS
NXT20 GE
