MasterCraft prostar 197, X-7 - Page 35

ma r i sta r 280, X -80
47
29
27
26
25
10
22
21
19
28
33
34
37
46

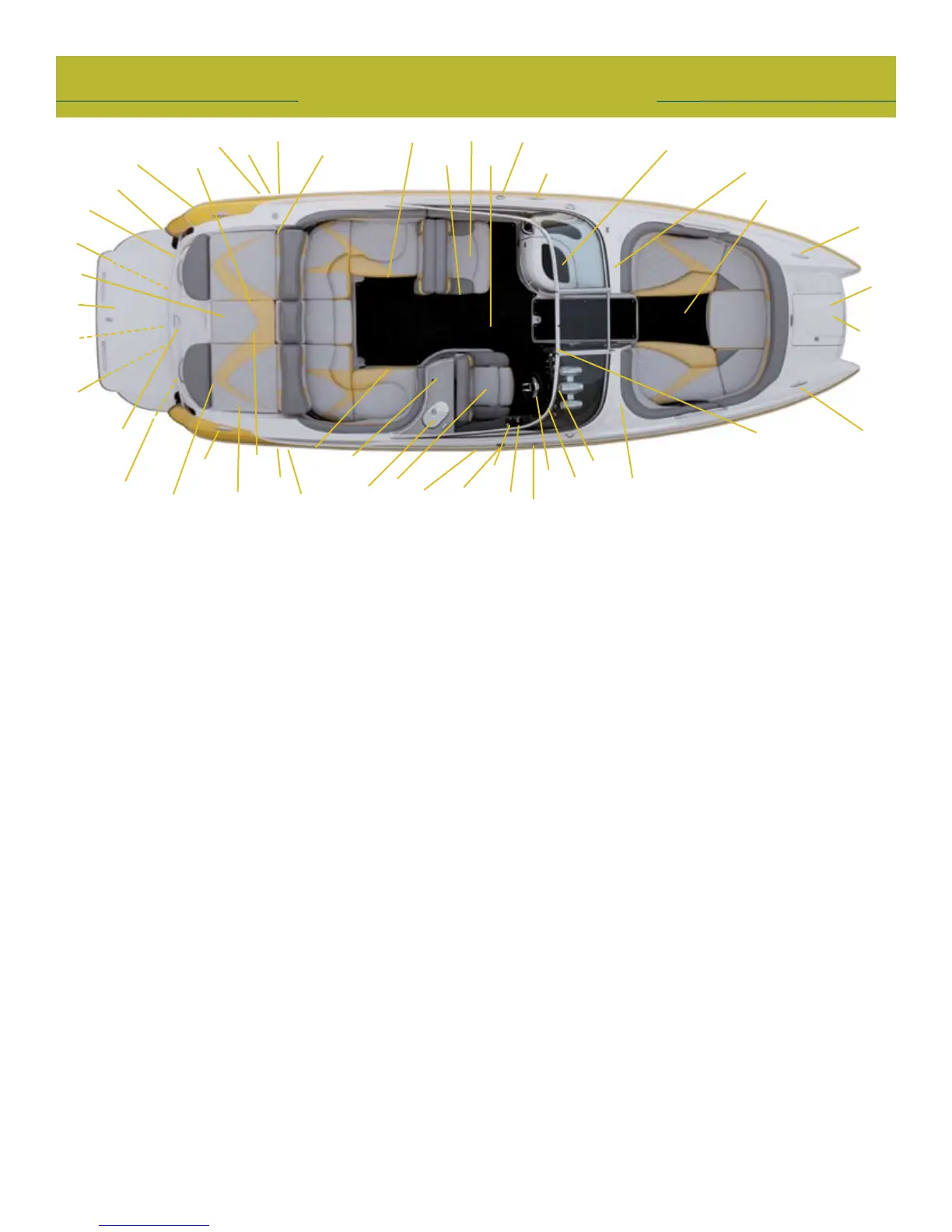

01 Bow cleat
 02 Bowllercushion(where equipped)
03 Amp (where equipped)
04 iPod interface (inside head, where equipped)
05 Stereo CD Player (where equipped); Sirius Satellite Radio (where
equipped)
06 Head
 07 Hand-heldreextinguishers
(beneath observer seat)
08 Midship cleat
09 Nav/anchor light
10 Center drain plug
11 Convertible observer seat
12 Subwoofer
13 Cockpit table mount (where equipped)
14 Batteries (including ON-OFF switch)
15 Thru-hull pump-out
16 Holding tank pump-out (where equipped)
 17 Fueltankller
18 Stern light receptacle
19 Stern cleat
20 Dual trim tabs
 21 Freshwatertankll
22 Engine exhaust (two under swim platform)
 23 Sundeckllcushion
24 Swim platform
25 Transom drain plug (center beneath swim platform)
26 Under-platform ladder (where equipped)
27 Ski pylon
28 Underwater lights (two where equipped under swim platform)
29 Shower wand and switch/Slick Boot wand and switch (where
equipped)
30 Stern cleat
 31 Automaticreextinguisher
32 Engine compartment
33 Bilge thru-hull outlet
 34 Fueltankller
35 Refrigerator drawer
(under seating, where equipped)
36 Entertainment unit (under sink, where equipped)
37 Freshwater tank, sink and shower (where equipped)
38 Heated seat (where equipped)
39 Thru-hull pump-out
40 Nav/anchor light
41 Armrest stereo remote
42 Shift/throttle control
43 Midship cleat
44 Steering wheel
45 Fire suppression unit manual override
46 Instrument panel (details elsewhere in this section)
47 Circuit breaker panel (on kick panel beneath instrument panel)
48 Adjustable mirror
49 Bow cleat
50 Ladder
51 Anchor
  Ballasttanklocatedbeneathoorboard 
Boats may also be equipped with towers (standard on X-80),
which may include stereo speakers, lights and/or
tower-mounted mirror
Storage space is located:
Under observer’s seat
Under bow seating
Under aft and wrap-around seating
Under port and starboard sun pads
mastercraft 2010 ow n e r ’s m anual • page 4-13
14
39
01
02
30
35
38
20
49
16
48
11
31
32
36
08
13
18
03, 04, 05
23
09
12
15
17
24
40
41
42
43
44
45
06, 07
50
51
