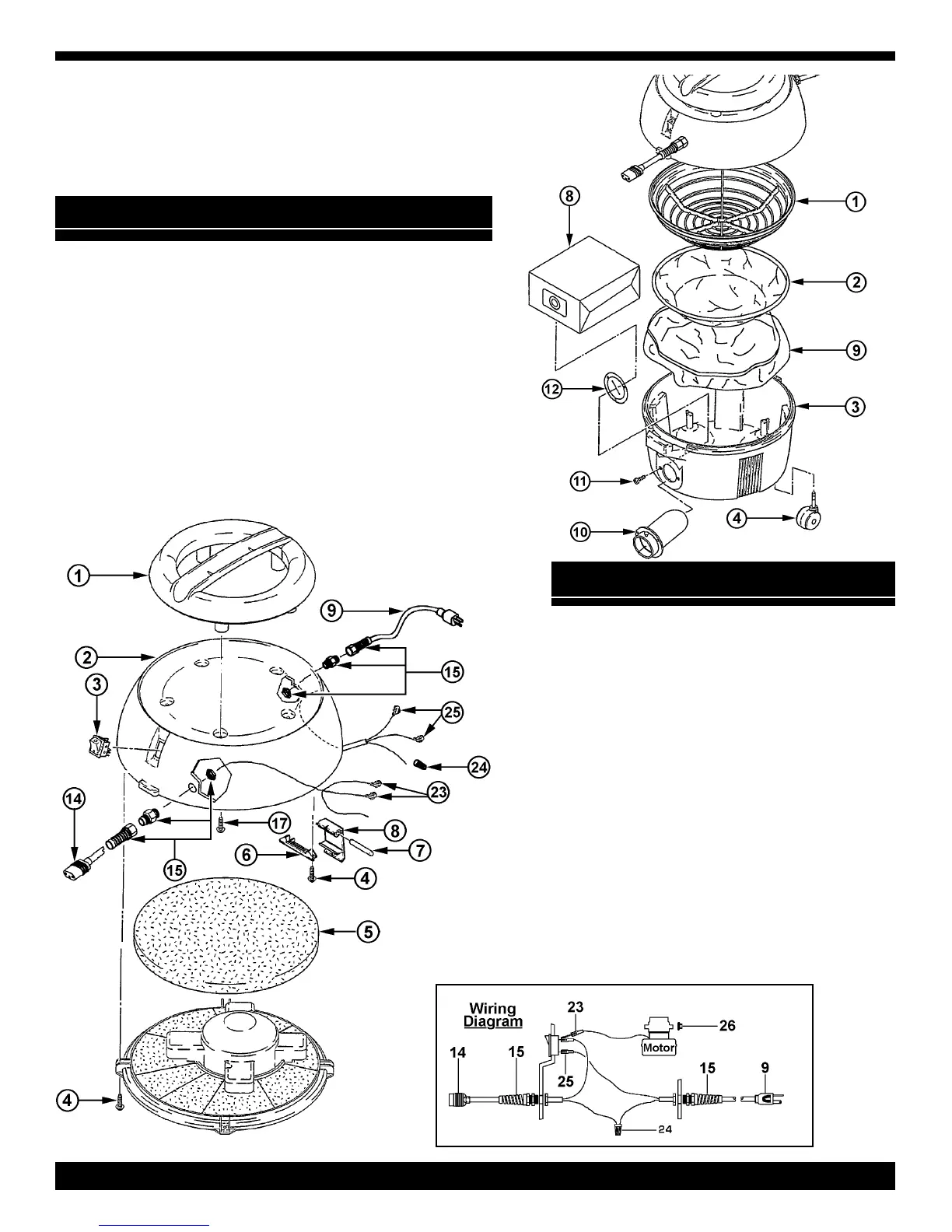

REPLACEMENT
PARTS LIST
TANK ASSEMBLY & FILTERS
__________________________________
Ref Part Description Part
No No
__________________________________
1 Filter Cage 409243
2 Cloth Filter 409251
3A Vacuum Tank 417939
3B Vacuum Tank Assembly 419869
4 Swivel Caster 418374
8 Paper Bag (5/Pk) 408239
9 Impact Filter (1/Pk) 408328
10 Metal Inlet Fitting w/Gasket 356298
11 M5 X 12 MM Screw (3) 374733
12 Metal Plate 417955
__________________________________
DOME ASSEMBLY
_______________________________
Ref Part Description Part
No No
_______________________________
1 Handle 417971
2 Dome 418366A
3 Tumbler Switch 415235
4 KA40 X 12 Screw 418005
5 Silencing Foam 418013
6 Holdown Pin 418021
7 Pin 418048
8 Latch 418056
9 30 Ft Line Cord 318647
14 Female Pig Tail 369160
15 Strain Relief Assy 443379
17 M12 X 16MM Screw 457034
23 Piggy Back Terminal (2) 437298
24 Orange Wire Nut 398985
25 Insulated Terminal (2) 394041
26 Thermal Cut Off 300578
_______________________________
PAGE 6
