2023 OWNER’S MANUAL
/
284
BIMINI FEATURES
Board Storage
Above storage with elastic straps (can easily store up to four
boards on top).

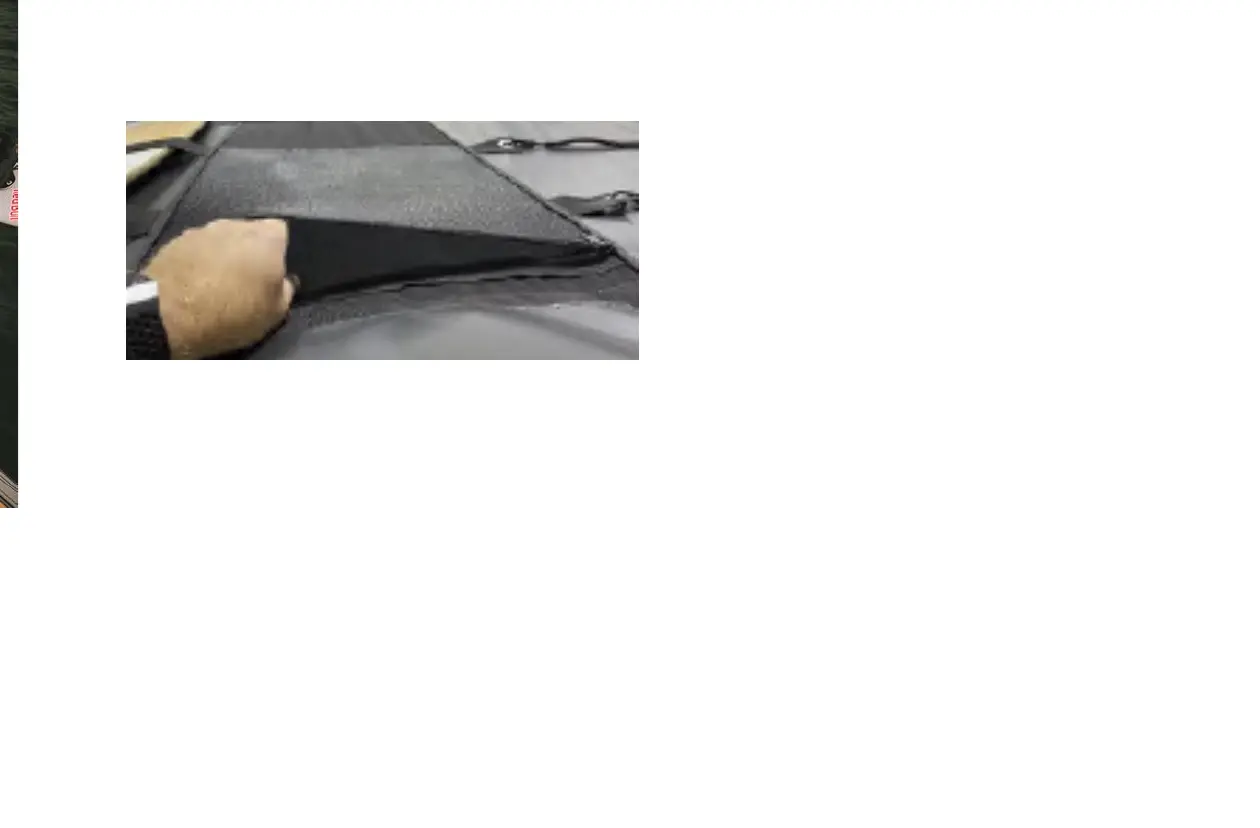

Protective nose pocket and adjustable velcro straps for under
Built in rope storage - zipper accessible from top and bottom
Troubleshooting
Should the bimini ever bind or become locked in either the stowed
or deployed position, MasterCraft recommends that the bimini
be taken to an authorized MasterCraft dealer for repair. Improper
use may bend or deform the bimini frames, or may rip the bimini
canvas. Misuse is not covered under the warranty.
PROSTAR BIMINI
Models
ProStar
Purpose
The ProStar bimini casts shade on the cockpit of the boat to keep
occupants cool and protected from the sun’s rays.
Location
Mounted to the ProStar’s windshield.
Operation
For balance, it is suggested that operators have an additional
person assist when raising or lowering a bimini top.
To install the ProStar bimini:
1. Let the bimini canvas rest on top of the motor box with the legs
facing towards the bow of the boat.
2. With another person, line up the main bimini legs (the longest leg on
both sides of the bimini) with the mounting brackets on the port and
starboard sides of the windshield frame. Ensure that the ball joint is
facing upwards (see photo).
