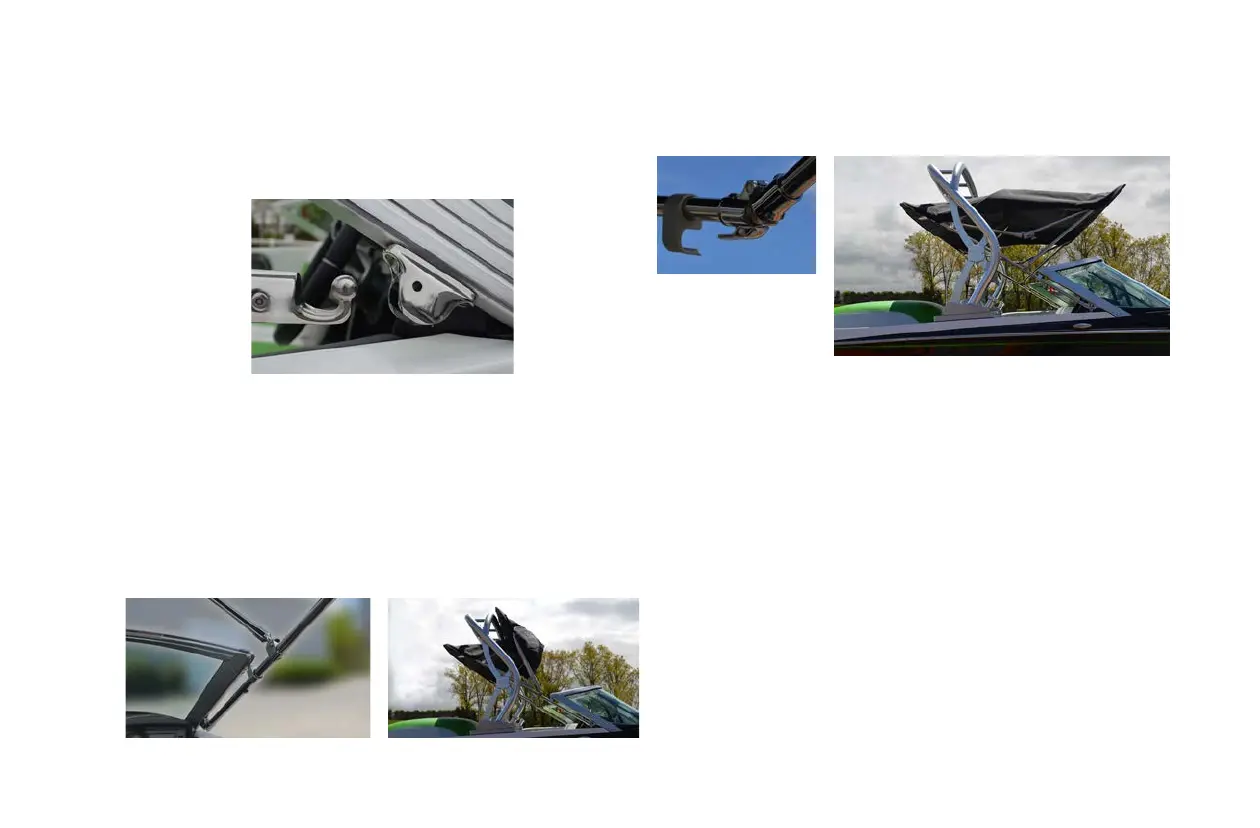

3. Insert the ball joint into the bracket and insert the pin to lock the
bimini legs to the mounting bracket. To ensure proper orientation
see the photo below.
4. The bimini should rest on the support poles supplied at delivery.
To deploy the ProStar bimini:
1. With the main bimini legs mounted to the windshield, lift the
topmost portion of bimini frame forward (the rest of the bimini and
frame will follow) until the main bimini leg touches the top corners of
the windshield.
2. With some upward pressure on the main bimini leg, slide the
secondary mounting ball joints down into the top of the
windshield’s corners.
3. Fully extend the bimini supports on either side until they lock
into place. Ensure that the bimini supports lock into place before
operating the boat.
4. To stow the bimini:
5. Unlock the bimini support legs.
6. With upward pressure on the main bimini leg, slide the secondary
mounting ball joint upwards on the bimini leg until it is clear of the
windshield.
7. Fold the bimini down to rest on the support poles.
8. Wrap the bimini boot cover around the bimini and zip closed.
Troubleshooting
Should the bimini ever bind or become locked in either the stowed
or deployed position, MasterCraft recommends that the bimini be
taken to an authorized MasterCraft dealer for repair.
