2023 OWNER’S MANUAL
/
290

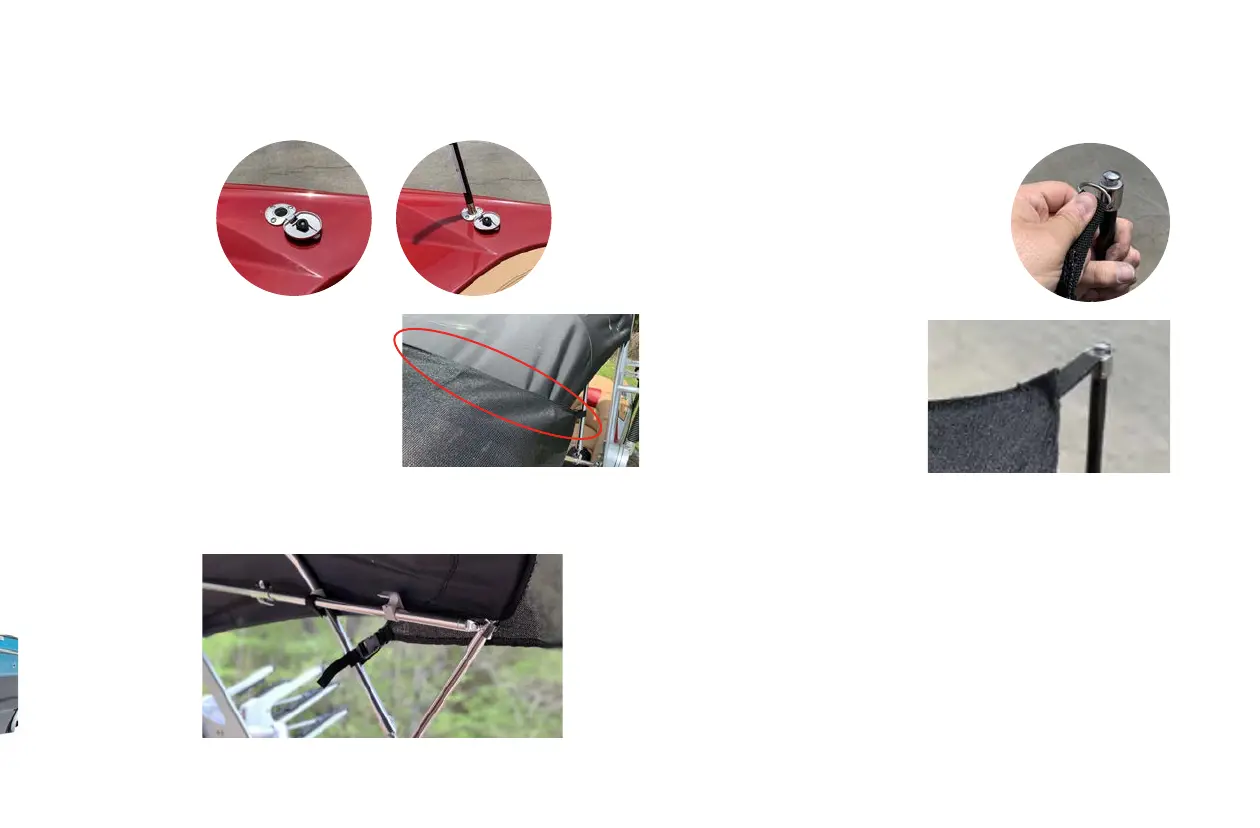

5. Buckle the straps around the middle support arm of the bimini on
each side, ensuring that the sunshade remains on the top of
the bimini.
3. Insert the tension poles into the gunnel mounting points.
Ensure that they are properly seated in the mount.
4. Lay the wide part (with the
buckles) of the sunshade over
the forward edge of the bimini.
6. Move to the forward end of the shade. Stretch the canvas forward
so that the metal rings can be mounted on the tension poles.
7. Mount the metal rings around the tension
poles. Pull the tension pole slightly toward
you to make mounting the metal ring
is easier.
8. After mounting the metal ring
on the tension pole, release
the tension on the pole slowly
so that it returns to a
vertical position.
To install the aft sunshade:
1. Remove the sunshade and poles from the storage bags.
2. Un-fold and lay out the sunshade with the buckles facing the tower.
Ensure that the material is facing the correct side up.
3. Insert the tension poles into the gunnel mounting points.
Ensure that they are properly seated in
the mount.
4. Attach the sunshade to the tower using the buckles that are
provided on one end of the sunshade. Use the images below as a
To Next Page
