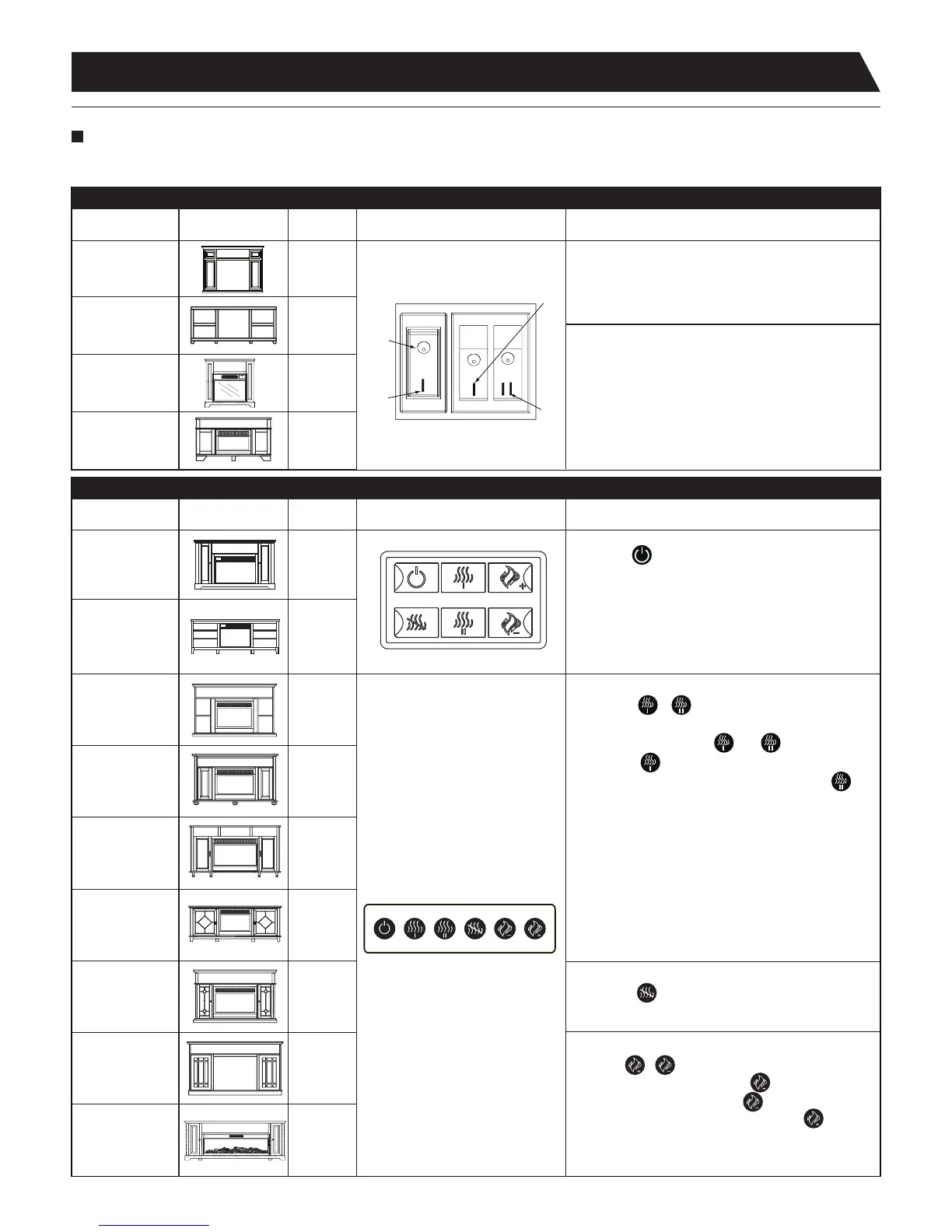

OPERATING INSTRUCTIONS : MANUAL CONTROL FUNCTIONS
Amsterdam
Hamilton
Operating InstructionManual Controls
Manual control panel can be accessed at the lower or up-right corner
of the MasterFlame insert.
TO ACCESS CONTROL PANEL -
Figure 2
POWER - Main power to unit. If you press the
power “ON”, it is not only put the fireplace insert
in a standby mode, but also you can see the flame
effect through the screen.
HEATER - This button will turn on the power to
the heater and blower.The HEATER switch has
two options "1" and "2". If you press the button"1"
only, it can operate the heater on the low setting
(750W). And if you want to operate the heater on
the high setting (1500W), you must press the
button ”1” first and then press the button “2”.
ON
OFF
1
2
Model # Drawing
Remote
Control
Hollywood
YES
YES
YES
YES
YES
YES
YES
YES
Monet
Peterborough
Tallinn
Lotus
Orleans
Carnation
Horizon
Operating InstructionManual Controls
Figure 3
POWER - This button will not only put the
fireplace insert in a standby mode, but also you
can see the flame effect through the screen. This
will turn off all functions at once. By pressing the
button again the unit will turn on at the same
settings.
HEATER / -This button will turn on the
power to the heater and blower. The HEATER
switch has two options and . If you press
the button , it can operate the heater on the low
setting (750W). And If you press the button , it
can operate the heater on the high setting(1500W).
As an important safety feature, the heating element
is designed with a delayed activation sequence.
Therefore, when the heater is turned on it will take
several seconds for the unit to begin blowing hot
air. Subsequently, the fan blower will continue to
run for several seconds after the heater is turn off.
HeatOFF : This button will turn off the heater
and blower.
Kingwood YES
FLAME / : Allows you to adjust the flame to
suit your mood. Press button to increase flame
brightness and press button to decrease flame
brightness. You must press the button several
times to see the full flame effect.
