E-6

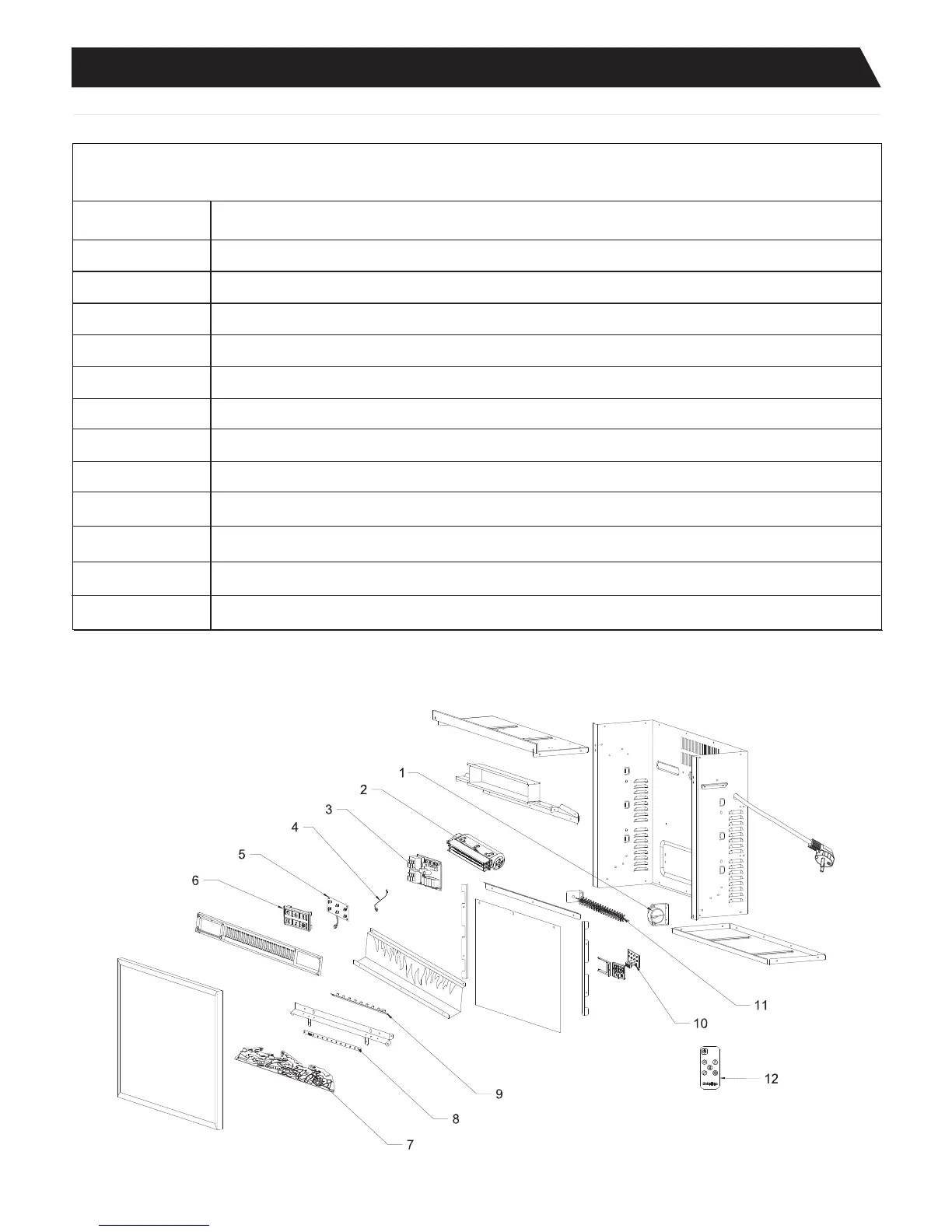

REPLACEMENT PARTS LIST AND EXPLODED VIEW
Flame Generator Drive Motor
Heater/Blower Assembly
Main Circuit Board
Control Panel Circuit Board
Emberbed Circuit Board
Flame Effect Circuit Board
LED Display
Flame Generator/Spinner
Remote Control
Control Panel Buttons
Part Name
For replacement parts, please call 1-888-463-5698 or visit www.homestarna.com, 7:00 am –5:00 pm CST, Monday – Friday.
Thermostat Sensor
Emberbed with Log
Some parts and specifications may change without notice.
Figure 4
