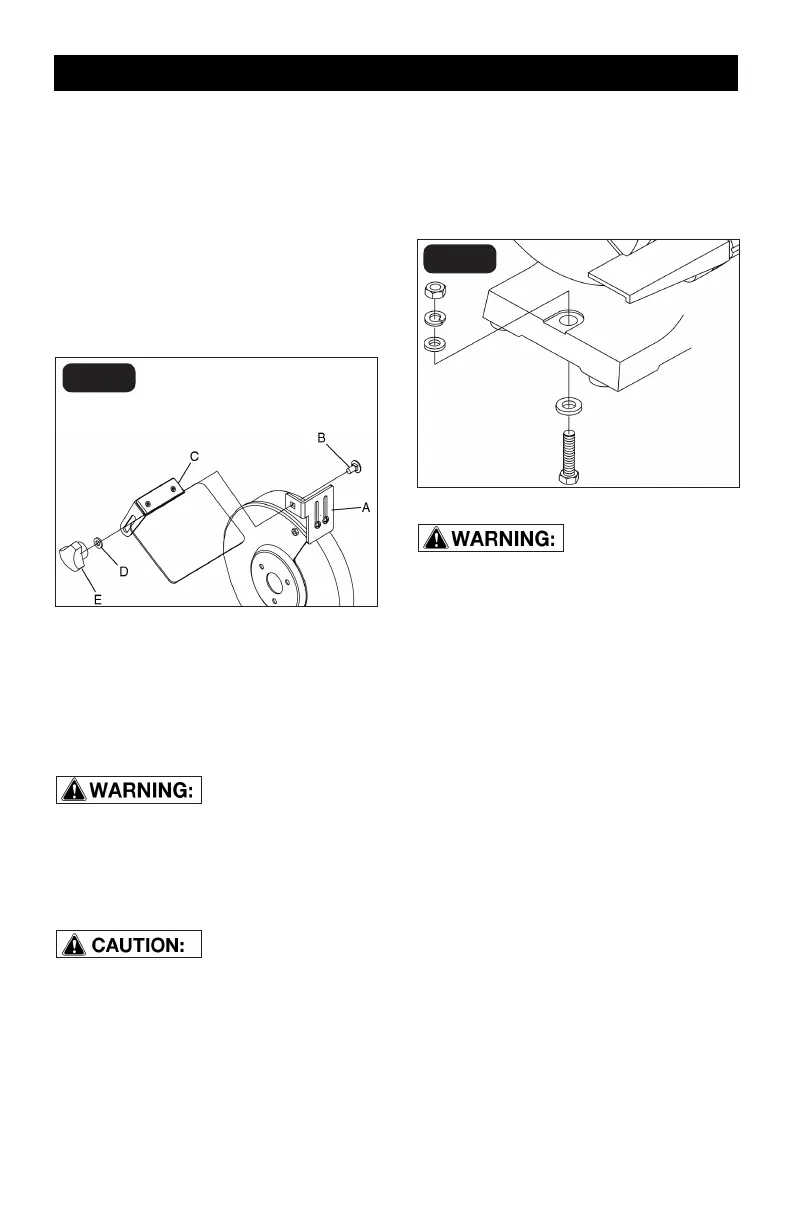

EYESHIELDS (Fig. H)
1. Assemble the eyeshield (C) to the Spark
Arrestor (A) inserting carriage head screw (B)
through the Spark Arrestor and the Eyeshield
as shown. See Figure H.
2. Assemble the at washer (D) and Lock
Knob (E) to the carriage head screw and
tighten until the Eyeshield remains in the
desired position. See Figure H.
WORK LIGHT
The Bench Grinder is provided with a
Flexible Work Light to assist in visibility of the
workpiece.
To reduce the risk of re, use a 120 volt, 40
Watt or less Track Light Bulb, Type R20, me-
dium base or equivalent (included). DO NOT
use a light bulb that extends past the end of
the light housing.
The Flexible Work Light housing will remain
hot for a few minutes after turning it “OFF”.
Avoid contact with housing until it is cool.
PERMANENT MOUNTING (Fig. I )
Use the mounting pads on the base of the
grinder to rmly attach grinder to a solid work
surface (hardware not included). See Figure I.
To avoid serious injury, secure the Bench
Grinder to a solid work surface. If the Bench
Grinder is not securely mounted, it will have
the ability to move or tip over during grinding
operations and possibly cause the operator’s
ngers to contact the grinding wheels.
ASSEMBLY INSTRUCTIONS
FIG. H
FIG. I
Page 12
