Page 12

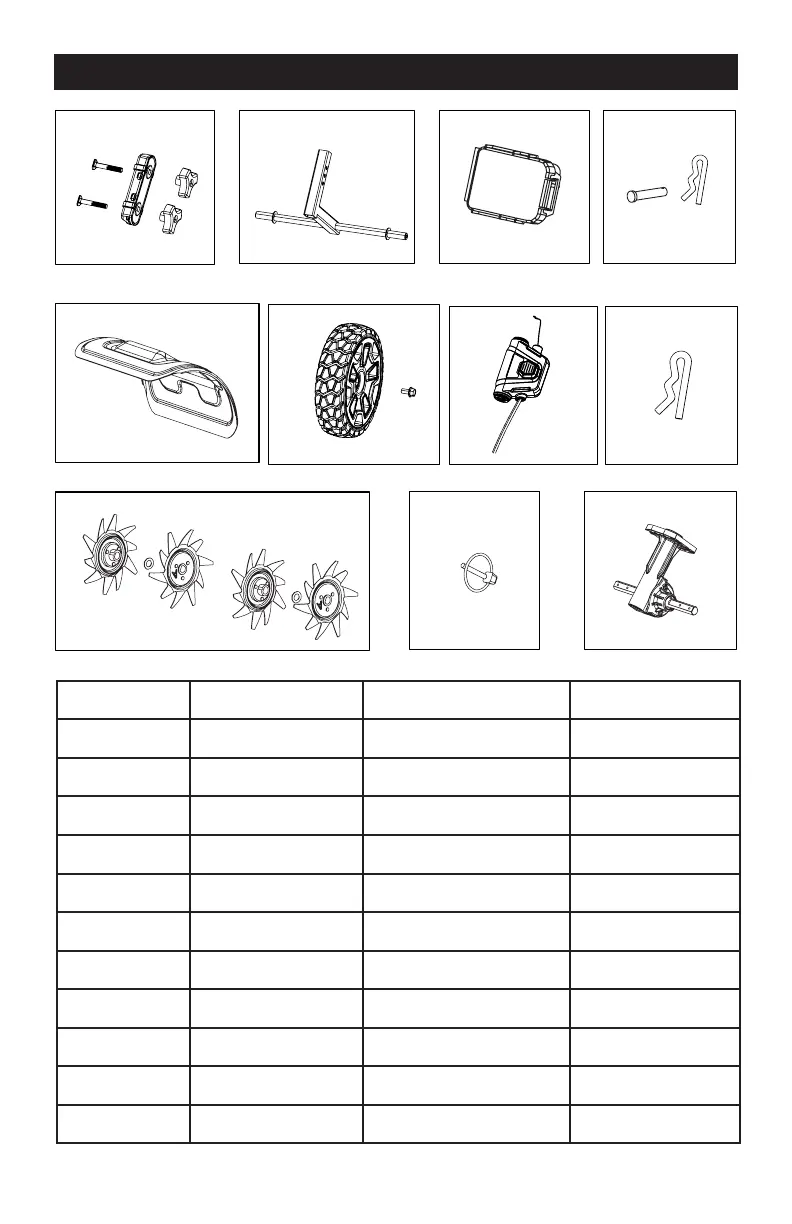

EXPLODED VIEW
ITEM NO. PART NO. DESCRIPTION QTY
1 R0201200-00 Handle Knob Assembly 1
2 R0201201-00 Wheel Shelf Assembly 1
3 R0201202-00 PCBA 1
4 R0201203-00 Small Hitch Pin 1
5 R0201694-00 Shield 1
6 R0201695-00 Wheel 1
7 R0201696-00 Motor Engagement Box 1
8 R0201207-00 Large Hitch Pin 1
9 R0201208-00 Tine Assembly 1
10 R0201209-00 Ring Pin 1
11 R0201210-00 Gear Box 1
1
2
3 4
6
5
8
9
10
11
7
To Next Page
