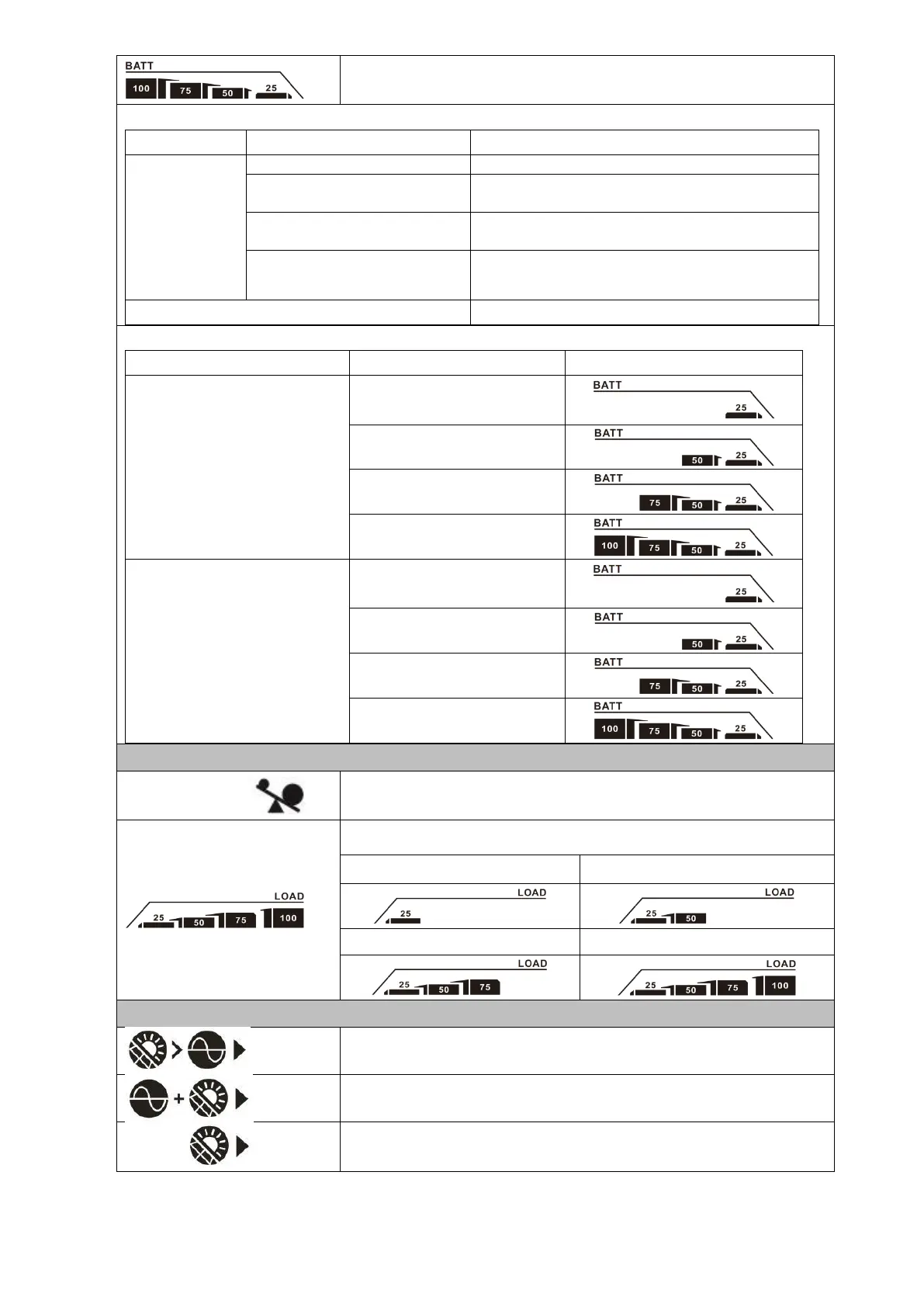

Indicates battery level by 0-24%, 25-49%, 50-74% and 75-100% in
battery mode and charging status in line mode.
When battery is charging, it will present battery charging status.
Status
Battery voltage
LCD Display
Constant
Current mode /
Constant
Voltage mode
<2V/cell
4 bars will flash in turns.
2 ~ 2.083V/cell
The right bar will be on and the other three bars
will flash in turns.
2.083 ~ 2.167V/cell
The right two bars will be on and the other two
bars will flash in turns.
> 2.167 V/cell
The right three bars will be on and the left bar
will flash.
Floating mode. Batteries are fully charged.
4 bars will be on.
In battery mode, it will present battery capacity.
Load Percentage
Battery Voltage
LCD Display
Load >50%
< 1.85V/cell
1.85V/cell ~ 1.933V/cell
1.933V/cell ~ 2.017V/cell
> 2.017V/cell
Load < 50%
< 1.892V/cell
1.892V/cell ~ 1.975V/cell
1.975V/cell ~ 2.058V/cell
> 2.058V/cell
Load Information
Indicates overload.
Indicates the load level by 0-24%, 25-49%, 50-74% and 75-100%.
0%~24%
25%~49%
50%~74%
75%~100%
Charger Source Priority Setting Display
Indicates setting program 16 “Charger source priority” is selected as
“Solar first”.
Indicates setting program 16 “Charger source priority” is selected as
“Solar and Utility”.
Indicates setting program 16 “Charger source priority” is selected as
“Solar only”.
