PYLONTECH

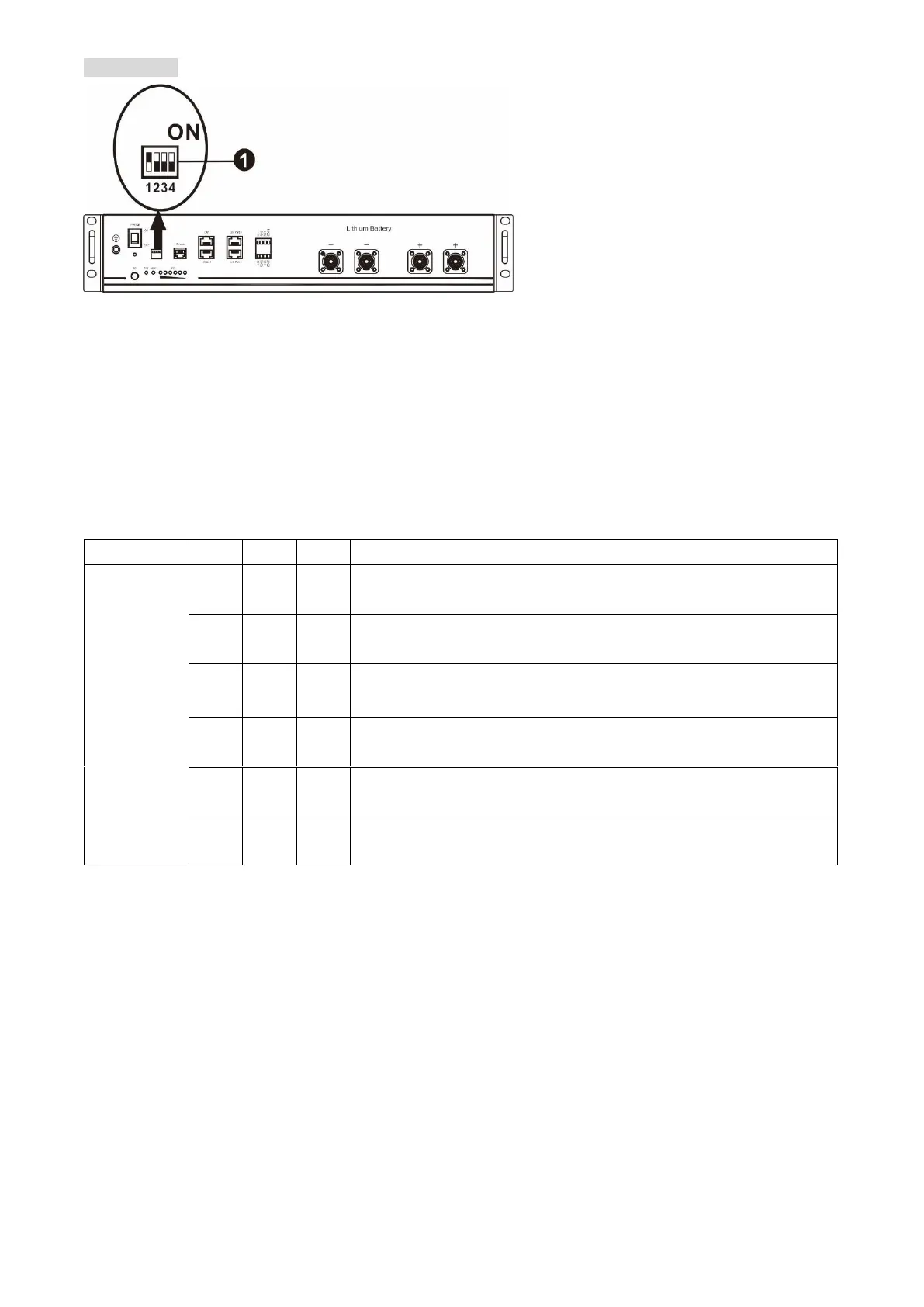

①Dip Switch: There are 4 Dip Switches that sets different baud rate and battery group address. If switch
position is turned to the “OFF” position, it means “0”. If switch position is turned to the “ON” position, it means
“1”.
Dip 1 is “ON” to represent the baud rate 9600.
Dip 2, 3 and 4 are reserved for battery group address.
Dip switch 2, 3 and 4 on master battery (first battery) are to set up or change the group address.
NOTE: “1” is upper position and “0” is bottom position.
Dip 1
Dip 2
Dip 3
Dip 4
Group address
1: RS485
baud
rate=9600
Restart to
take effect
0
0
0
Single group only. It’s required to set up master battery with this
setting and slave batteries are unrestricted.
1
0
0
Multiple group condition. It’s required to set up master battery on the
first group with this setting and slave batteries are unrestricted.
0
1
0
Multiple group condition. It’s required to set up master battery on the
second group with this setting and slave batteries are unrestricted.
1
1
0
Multiple group condition. It’s required to set up master battery on the
third group with this setting and slave batteries are unrestricted.
0
0
1
Multiple group condition. It’s required to set up master battery on the
fourth group with this setting and slave batteries are unrestricted.
1
0
1
Multiple group condition. It’s required to set up master battery on the
fifth group with this setting and slave batteries are unrestricted.
NOTE: The maximum groups of lithium battery is 5 and for maximum number for each group, please check
with battery manufacturer.
