MasterPower OMEGA LV Series - Three-Phase Equipment Operation

36
Communication Connection

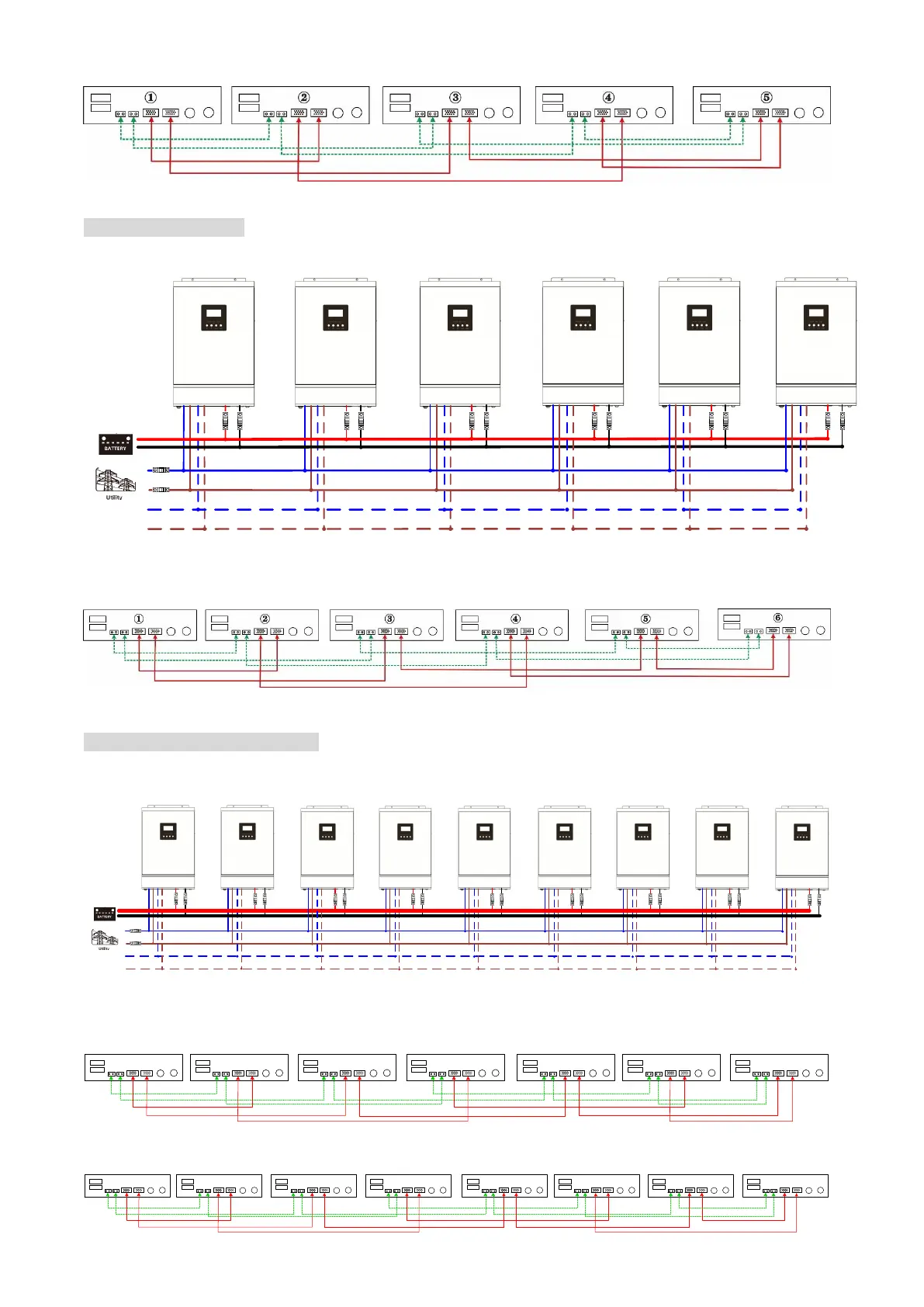

Six inverters in parallel:
Power Connection
N
L
N
L
Load
Communication Connection
Seven to nine inverters in parallel:
Power Connection
N
L
N
L
Load
Unit 1 Unit 2
Unit 3
Unit 4 Unit 5
Unit 6
Unit 7 Unit 8
Unit 9
Communication Connection
 Seven inverters in parallel
④
① ② ③ ⑤ ⑥ ⑦
 Eight inverters in parallel
④
① ② ③
⑧
⑤ ⑥ ⑦
