Mastervolt IVO Smart 12/10

11
IVO SMART 12/10 & 24/6 SPECIFICATIONS
General
Model IVO Smart 12/10 IVO Smart 24/06
Article number 43011000 43020600
Operating temperature
0 °C to 40 °C (derating of 2% / °C >40°C)
Storage temperature
-20 °C to 70 °C
Protection degree IP65
Noise level Not audible (<30 dBA)
Safety class Class II
Dimensions ( HxWxD ) 170 x 121 x 50mm
Input
Input voltage 230 Vac +/- 10%
Input frequency 50/60 Hz +/- 10%
Input current 0.9 A
Maximum input power 170 Watt
Power factor cos phi > 0.95
Efficiency at full power > 85 %
No load consumption < 15 Watt
AC input fuse 1.6 A slow blow (non replaceable)
Output
Voltage (DC) absorption 14.25 V ( 6 Hr ) 28.5 V ( 6 Hr )
Voltage (DC) float (gel/AGM) 13.25 V ( 13.8 V ) 26.5 V ( 27.6V )
Voltage (DC) force float 13.8 V 27.6 V
Return amps < 1.2A (15min) < 0.6A (15min)
Adjustment range (DC) 12 V – 15 V 24 V – 30 V
Adjustment method Software setting by Quasi RS232 (TTL levels)
Number of outputs 1 1
Max. output current (bulk) 10 A 5 A
Charge Characteristic Three-step, fully automated, IUoUo (acc. Din 41772), programmable
Battery types Open and sealed lead acid batteries
AC connector Class II Euro plug
Safety devices
Short circuit protection Reduced output, max. 5A Reduced output, max. 3 A
Reverse polarity protection By easy accessible DC fuse: 15 A By easy accessible DC fuse: 7.5 A
Temperature protection By derating the output and shut off at 50°C
Power and fault indicator
Indicator Green LED
Correct operation Green, flashing (bulk / Absorption) or continuously ( Float )
Compliance
CE LV 73/23/EEC and EMC 89/336/EEG

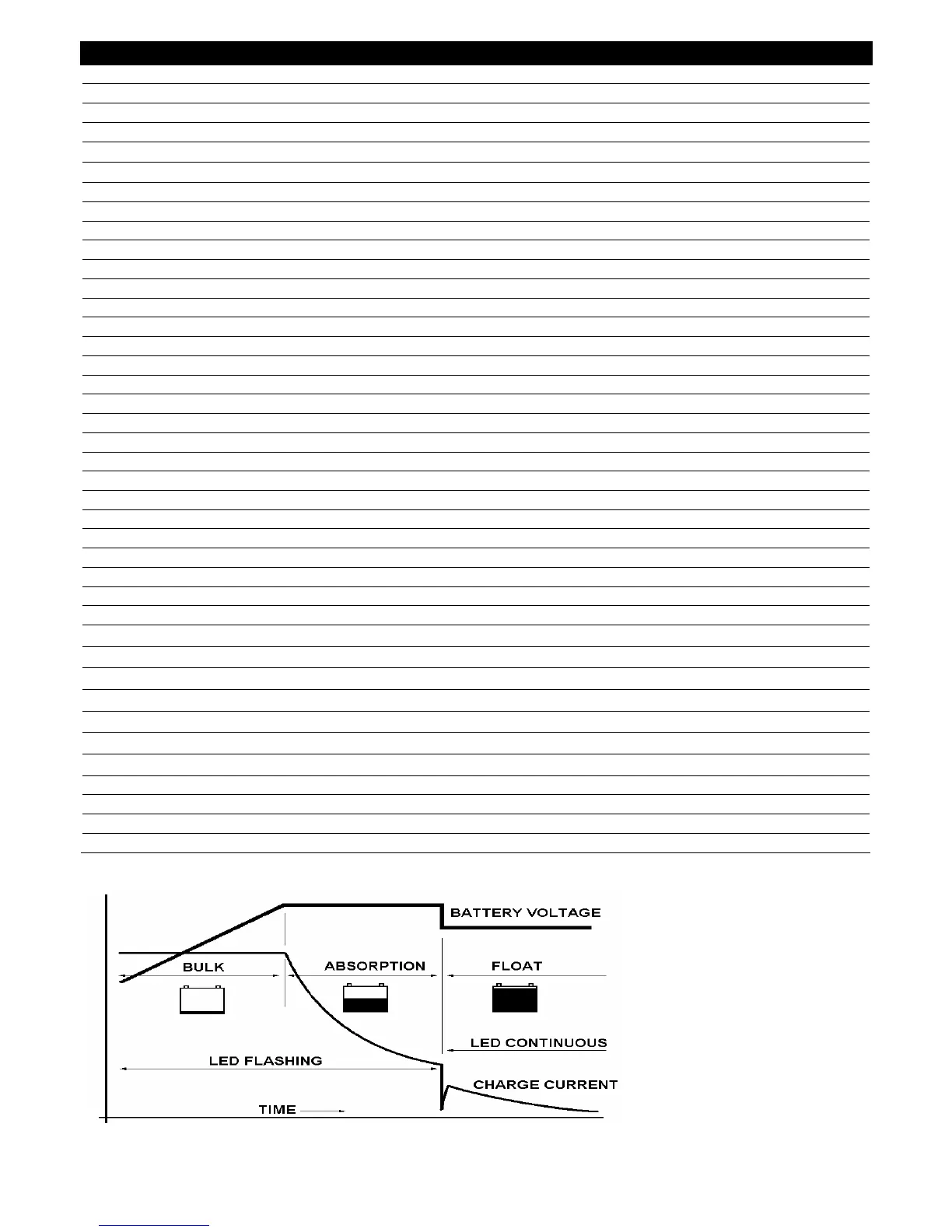

Figure 3 – Abbildung 3 –
Figuur 3 – Figura 3
Charge characteristic
