Mastervolt MASS 24/50-2

22
Mass Charger 24/50-2, 24/75, 24/75 (120V), 24/100, 3-24/100, 48/25, 48/50 – User and Installation Manual
9.2 Characteristics

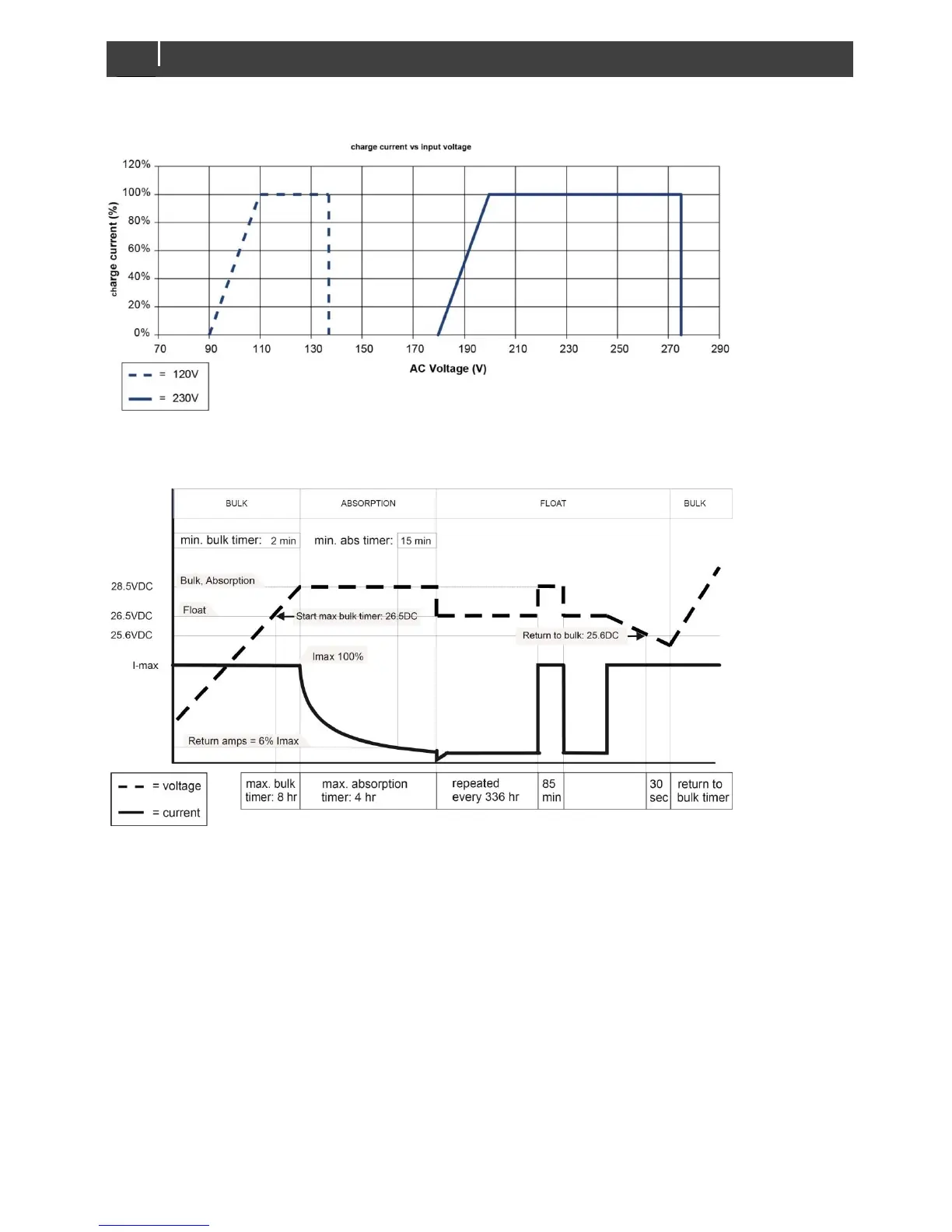

Figure 8. Charge current versus input voltage
Figure 9. Charge characteristic of the 3-step+ charging method (at 25°C/77°F)
