INSTALLATION
12 July 2010 / Mass Charger 12/60-2; 12/80-2; 24/50-2; 24/75; 24/100; 3-24/100; 48/25; 48/50 / EN
4.12 OVERVIEW CONNECTION COMPARTMENT
4.13 THINGS YOU NEED
Make sure you have all the parts you need to install the Mass Charger:
Product Quantity
Mass Charger (included) 1
Battery temperature sensor with cable and plug (included). 1
DC-cable to connect the positive DC connection (+) of the Mass Charger to the positive pole of the DC-
distribution; for specifications see section 4.3.3.
1
DC-cable to connect the negative DC connection (–) of the Mass Charger to the negative pole of the DC-
distribution; for specifications see section 4.3.3.
1
DC-fuse holder with a DC-fuse, to be integrated in the positive DC-cable. 1
Screws / bolts (Ø 6mm) (with plugs) to mount the cabinet to a surface. Use mounting materials which are
suitable to carry the weight of the Mass Charger
4
AC cable* to connect the AC input to an external power source (e.g. a shore connection or a generator set); 1
Batteries. See section 4.4 for recommended capacity X
Appropriate and reliable cable terminals, cable lugs, battery terminals and cord end terminals X
* Double insulated three wire cable with wire colours according to the locally applicable regulations. The applicable length and
wire diameter depend on the electrical installation (see section 4.3.1).
We recommend as a minimum tool kit:
• Socket wrench 13mm to fix the DC-input (battery) cables
• Flat blade screw driver 1.0 x 4.0 mm to fix the screw terminals
• Tools to fix the screws / bolts (Ø 6mm) with plugs to mount the cabinets to a surface
• Philips screw driver to open the connection area of the Mass Charger
• 2 mm flat blade screw driver for the sense terminal (figure 9 point 10).

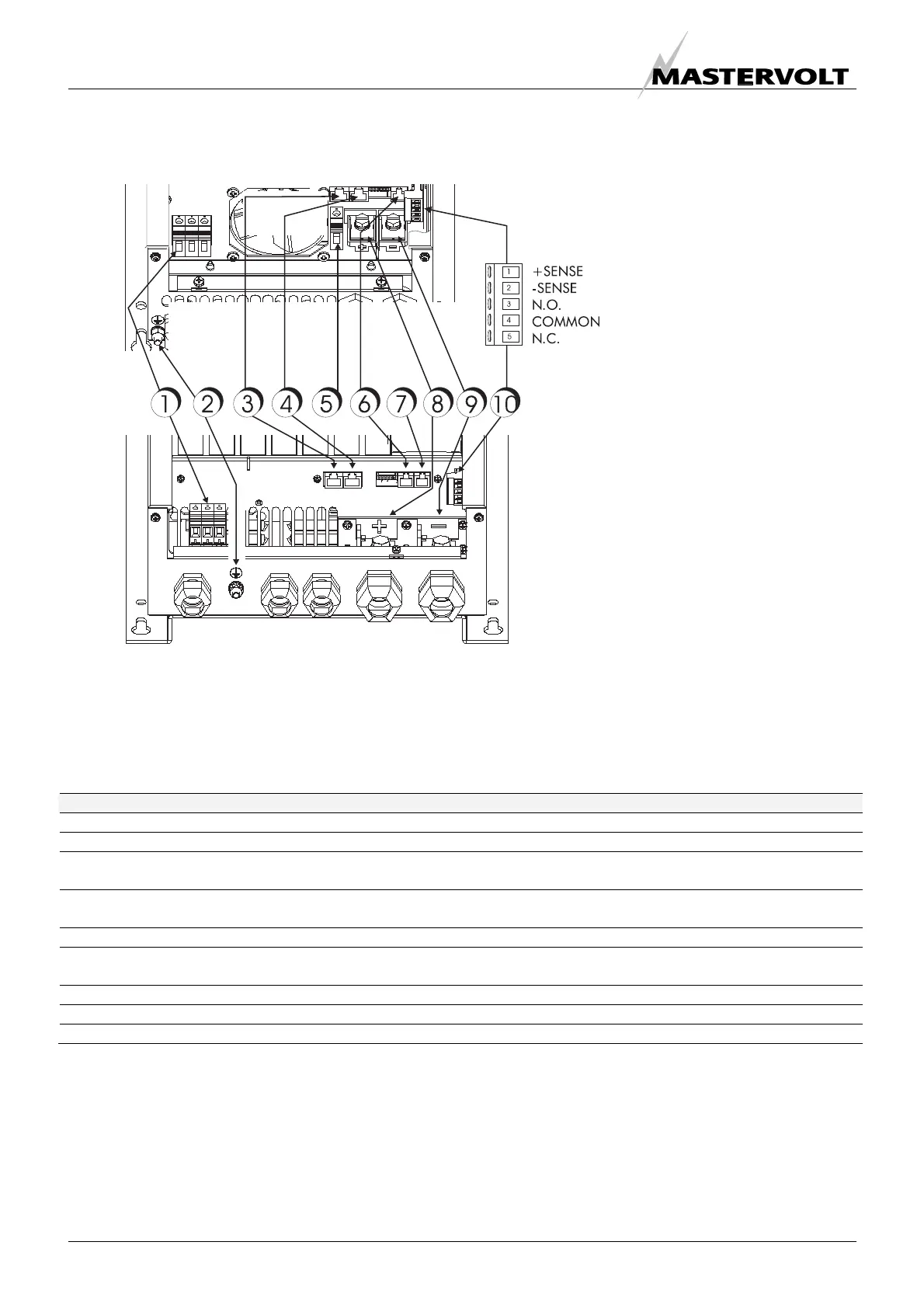

Figure 7: Overview connections Mass Charger
1 Screw terminals AC input: L1, N, PE
(24/100-3ph: L1, L2, L3, PE)
2 Earth stud
3 MasterBus connector
4 MasterBus connector
5 Output (battery) positive connector
(maximum 3A)
6 RS232 / Temperature sensor
connector
7 Analog connector
8 Output (battery) positive connector
9 Output (battery) negative connector
10 Voltage sense/ potential free alarm
contact
C2
enclosure
C3
enclosure
