2 Knowledge of MAXIMUS2.0

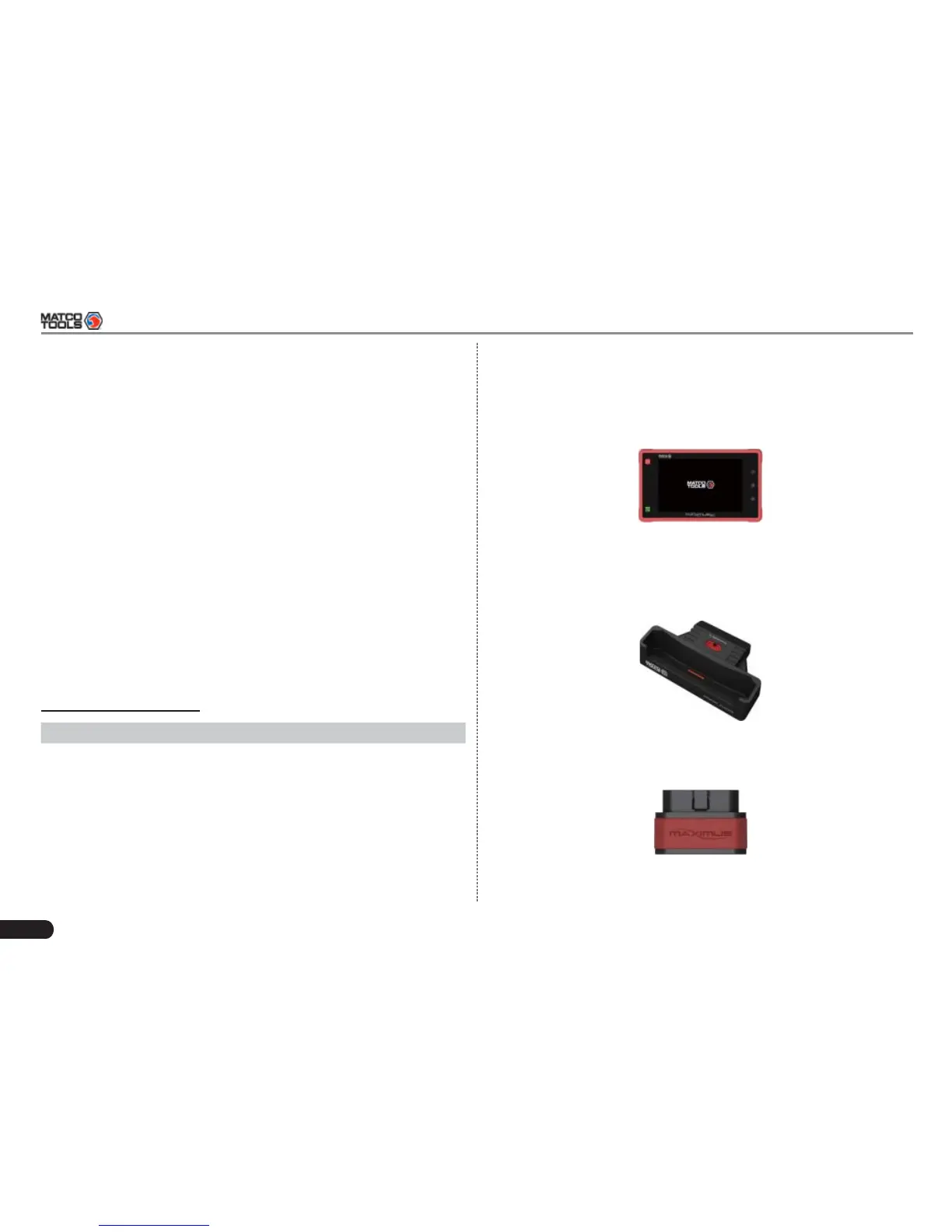

There are three main components to the MAXIMUS2.0 system:
MAXIMUS2.0 Display Tablet -- the central processor and monitor •
for the system (For details, please refer to Chapter 2.1.)
Fig. 2-1
MAXIMUS2.0 Docking Station -- the platform for charing •
MAXIMUS2.0 display tablet and extending functions (For details,
please refer to Chapter 2.2.)
Fig. 2-2
Diagnostic Connector -- the device for accessing vehicle data (For •
details, please refer to Chapter 2.3.)
Fig. 2-3
Connectivity Wi-Fi (•
802.11 b/g/n)
USB: 2.0•
Bluetooth 2.0•
Ethernet: RJ45 Ethernet Connection•
Camera Front-facing, 2.0 megapixel; Rear-
facing, 5.0 megapixel, AF with
Flashlight
Sensors
Gravity Accelerometer, Ambient Light
Sensor
Audio Input/Output Microphone•
Speakers•
3.5mm stereo headset jack•
Power and Battery 12000 mAh lithium-polymer battery
Charging via 5V DC power supply
Operating Temperature
-10
℃
~ 55
℃
(14 ~131
℉
)
Storage Temperature
-20
℃
~ 70
℃
(-4 ~158
℉
)
B. Diagnostic Connector
Item Description
Working temperature -10
℃
~ 55
℃
(14 ~131
℉
)
Storage temperature -20
℃
~ 70
℃
(-4 ~158
℉
)
Relative humidity 20% ~ 90%
