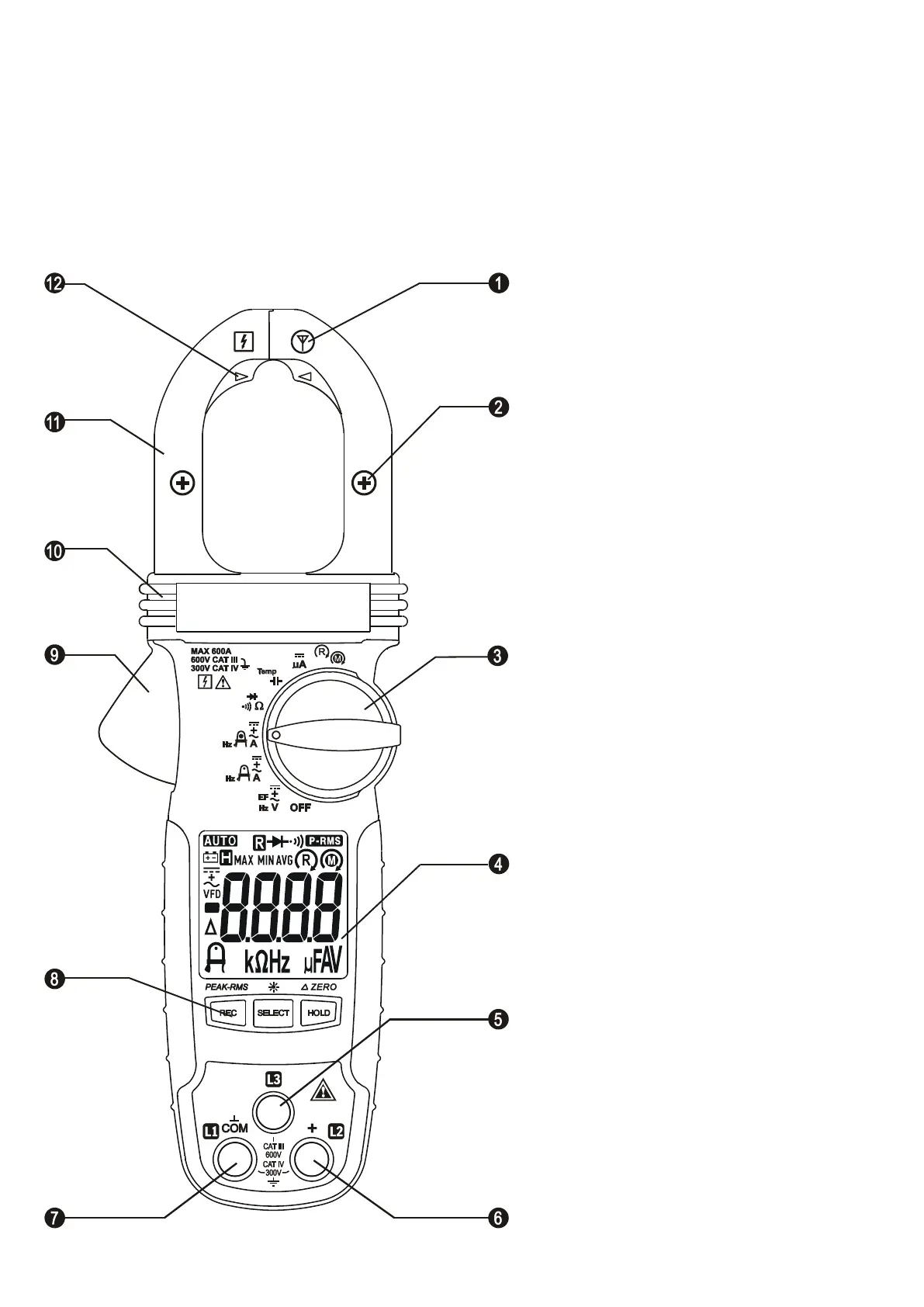

3) PRODUCT DESCRIPTION
This user's manual uses only representative model(s) for illustrations.
Please refer specification details for function availability to each model.
1) Antenna area for Non-Contact
EF-Detection
2) Jaw center indicator (with DCA
polarity for Models 079, 078 &
077), at where best current
accuracy is specified
3) Rotary Selector to turn the
power ON/OFF and Select a
function
4) 3-5/6 digits 6000 counts numeric
LCD display
5) Additional input Jack for Phase
Rotation function only
6) Input Jack for all functions
EXCEPT non-invasive DCA,
DC+ACA, or ACA current
functions
7) Common (Ground reference)
Input Jack for all functions
EXCEPT non-invasive DCA,
DC+ACA, or ACA current functions
8) Push-buttons for special
functions & features.
9) Jaw trigger for opening the
clamp jaw
10) Hand/Finger Barrier to indicate
the limits of safe access of the
meter
11) Clamp Jaw for DC or AC
current magnetic field pick up
12) Additional center indicator for
AmpTip
TM
Low-current function,
at where best AmpTip
TM
current
accuracy is specified
