IRRIGAMATIC B1 - B2
1 GENERAL FEATURES
FUNCTIONS
• Current date and time
• Measurement of unwound and woundup
tube.
• Working speed adjustment (from 5 up to
250 m/h).
• Irrigation time and work end time
• Operations of " winding up over" (By-
pass open).
• Automatic switching off to save energy
OPTIONS
• Connection to pressure switch
• Speed measurement by feeler roller

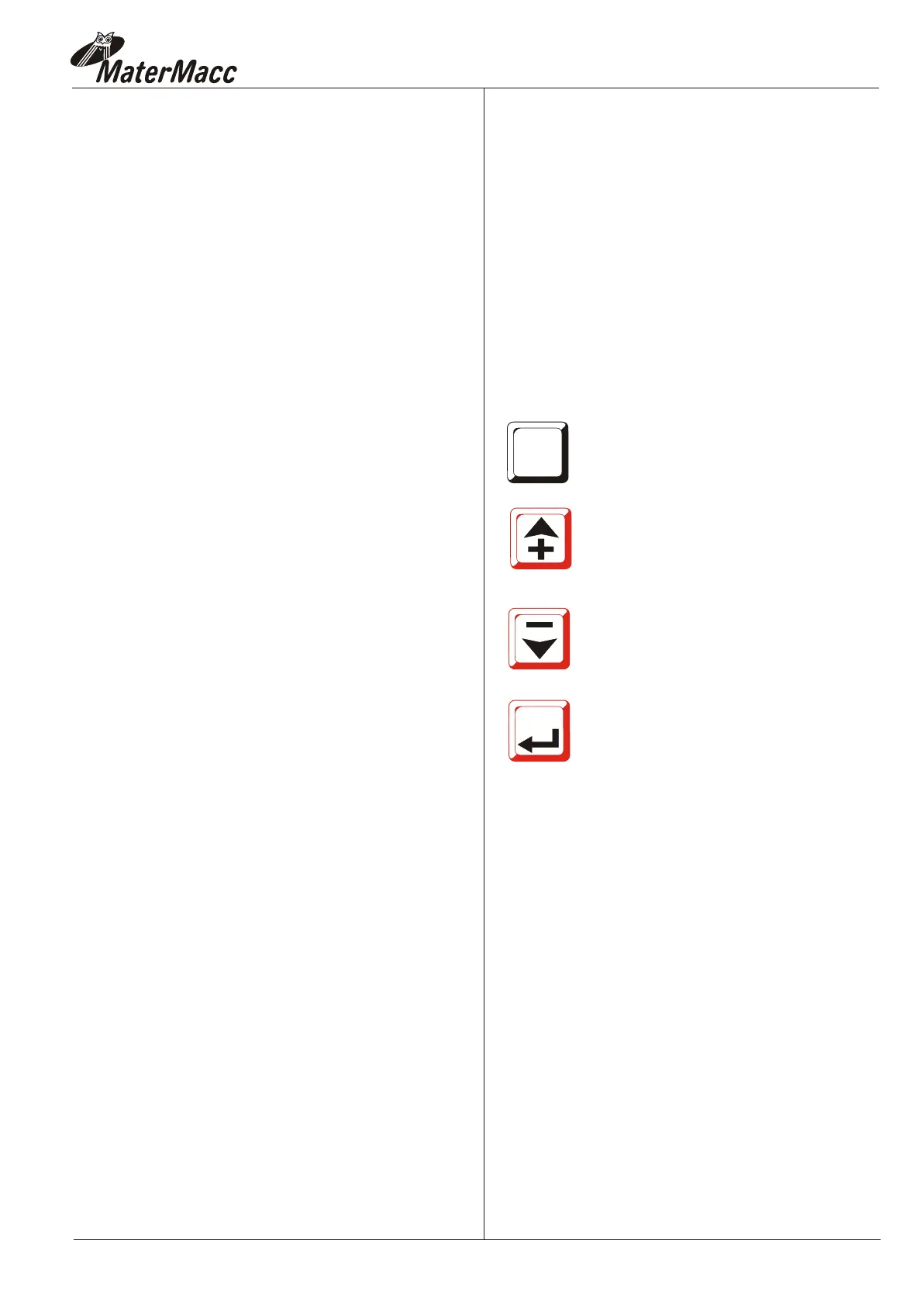

2.1 DESCRIPTION OF THE EQUIPMENT
ONON
OFFOFF
Switching
electronic console on or off
Increases the value of the
functionbeing displayed
ENTERENTER
Decreases the value of the
function being displayed
Confirmation of the value
Pag.01
Connections: set up for serial connection
Power supply 12V dc to battery
Op range: -20 70° C free air
Temp and humidity Room temp -5...25° C; T.
Storage t. 30...70°C; RH % 10...60
condensation free.
2 GENERAL TECHNICAL DATA
Microchip UProcessor PIC18f4682
Display LCD with back light
Inputs:
Digital type:
Speed sensor (on roller or on pinion)
Sensor of end of unwinding
Sensor of end of winding up.
Pressure switch
Analog type:
Battery monitor
Outputs
Digitaltype: 3A relay for aux functions
Controls: by means of 4 buttons
Modulated: 1 H-bridge max 3A to pilot
Bypass valve
