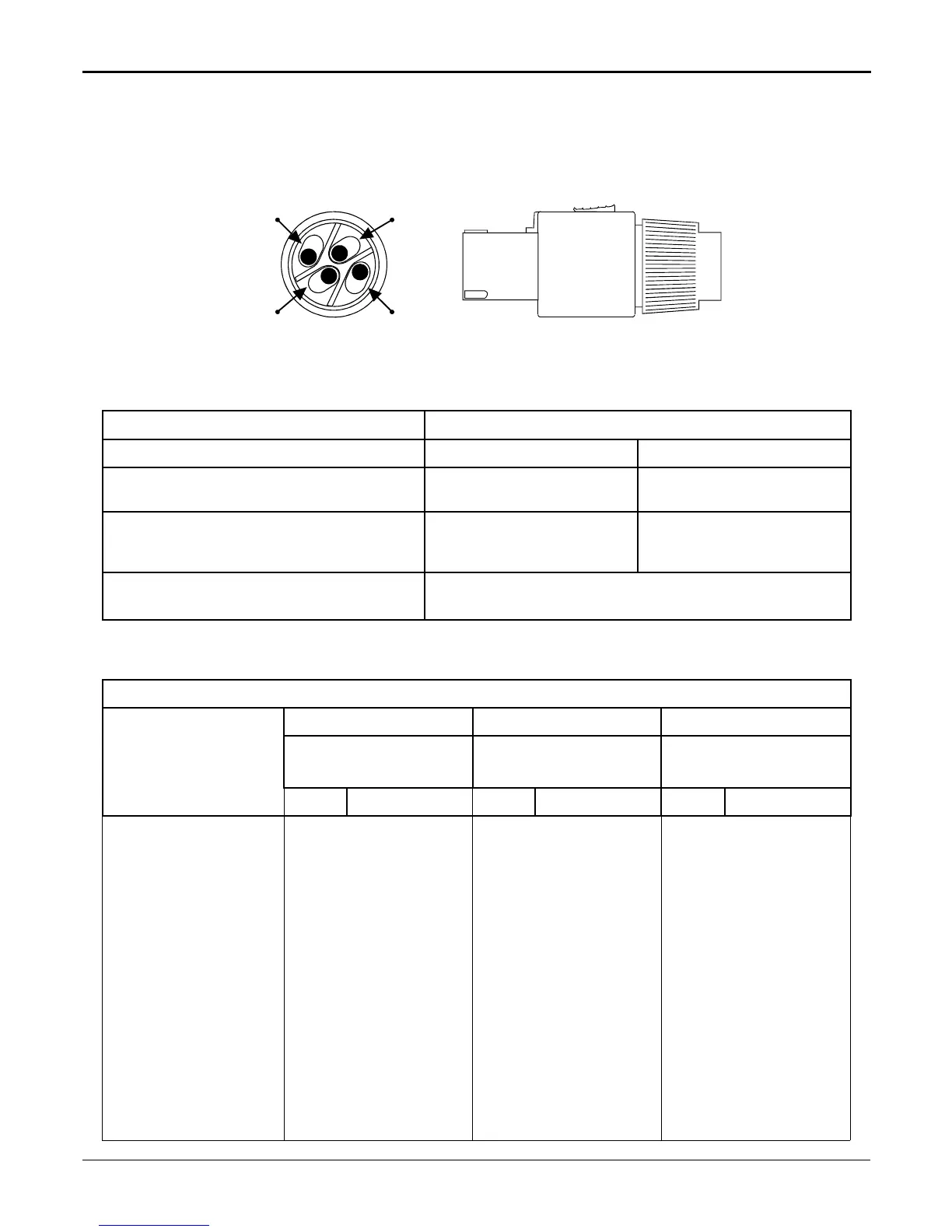

5.2 Speaker Leads.
Speakon Connectors, 4 Pin:
Cable Maker Table:
Cable Connections:
Cable Type: + and - + and -
Single Channel, 2 core lead.
Use in Mono / Stereo modes.
1 to 1 -
Dual Channel, 4 core lead.
For both channels into one cable.
Outputs A,B,C and D - 4 ohms min. load
1 to 1 2 to 2
Bridged (mono) mode.
Output Pairs A & C ONLY - 8 ohms min load
Terminal +1 to Cable +
Terminal +2 to Cable -
Choosing a suitable Cable:
Cable Length: Recommended Cable Gauge for Speaker Load:
M: FT: 4 Ohms 8 Ohms 16 Ohms
Power Loss % = .13 – .25
DF = 107 – 86 (67)
DF – Damping Factor est.
Power Loss % = .13 – .62
DF = 215 – 105 (75)
DF – Damping Factor est.
Power Loss % = .07 - .62
DF = 430 - 127 (86)
DF – Damping Factor est.
wires AWG mm
2
wires AWG mm
2
wires AWG mm
2
1 3 2 12 2.5 2 12 2.5 2 12 2.5
Rec Minimum: 2 16 1.3 2 16 1.3 2 16 1.3
3 10 4 12 2.5 2 12 2.5 2 12 2.5
Rec Minimum: 2 12 2.5 2 16 1.3 2 16 1.3
6 20 4 10 5 4 12 2.5 2 12 2.5
Rec Minimum: 4 12 2.5 2 12 2.5 2 14 2
10 33 - - - 4 10 5 2 10 5
Rec Minimum: 4 10 5 2 10 5 2 12 2.5
15 49 - - - 4 10 5 2 10 5
Rec Minimum: - - - 2 12 2.5 2 12 2.5
24 79 - - - - - - 4 10 5
Rec Minimum: - - - 4 10 5 2 10 5
30 98 - - - - - - 4 10 5
Rec Minimum: - - - - - - 4 12 2.5
MATRIX AMPLIFICATION REV.1.15
1-
1+
2+
2-
REAR
(INSIDE)
SIDE VIEW
-1
+2
+1
-2
