Matrix 7 Series User Manual

Revision Date: April 2020
19

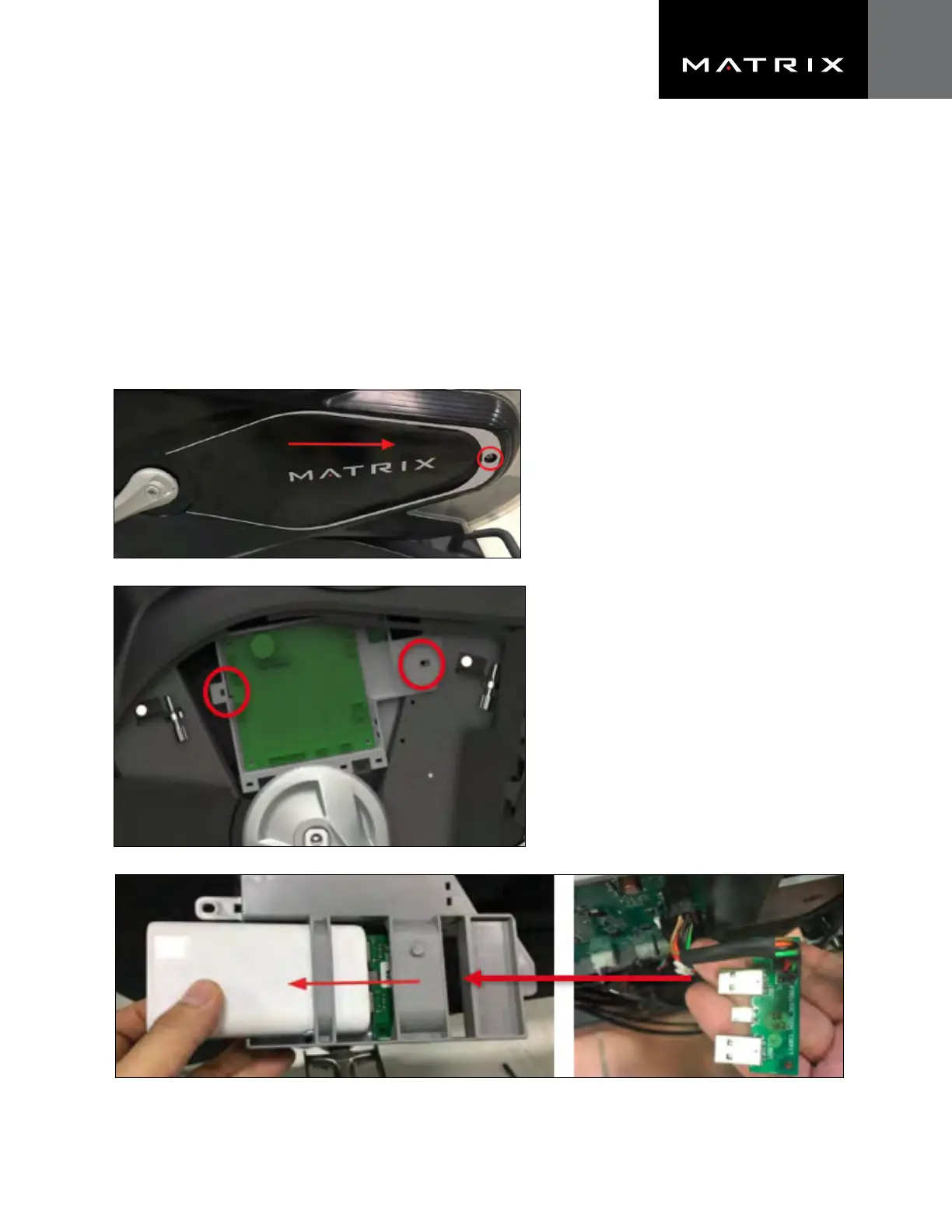

CHARGING BATTERY FROM CXP (FC24)
1. Remove right service cover (Fig.1).
2. Remove the two screws holding the LCB housing to the frame and carefully pull forward to
expose the battery (Fig. 2).
3. Disconnect the battery from the power board by sliding the battery out of the plastic housing (Fig.3).
4. Wall charge via 5-port USB Charger for 24 hours.
CXP BATTERY CHARGING
FIG. 1
FIG. 3
FIG. 2
GROUP TRAINING EQUIPMENT
