AURA BELT TENSIONING
1. Loosen bolts on the fold over clamp or barrel clamp.
2. Using your hand, pull any slack out of the belt, using a pliers on the cut end of the belt, pull to
remove the slack.
3. Tighten bolts following the instruction below.
Note: Three squares of extra belt must show on the opposite side of the clamp when tightening bolts.
For belting with a fold over clamp, add Red Vibra-Tite® Threadlocker to the four bolts and tighten to 5 N-m using a
torque wrench. The bolts should be tightened in a uniform pattern.
For belting with a barrel clamp, add Red Vibra-Tite® Threadlocker to the two bolts and tighten to 30 N-m using a
torque wrench. The bolts should be tightened in a uniform pattern.
CABLE & BELT TENSIONING

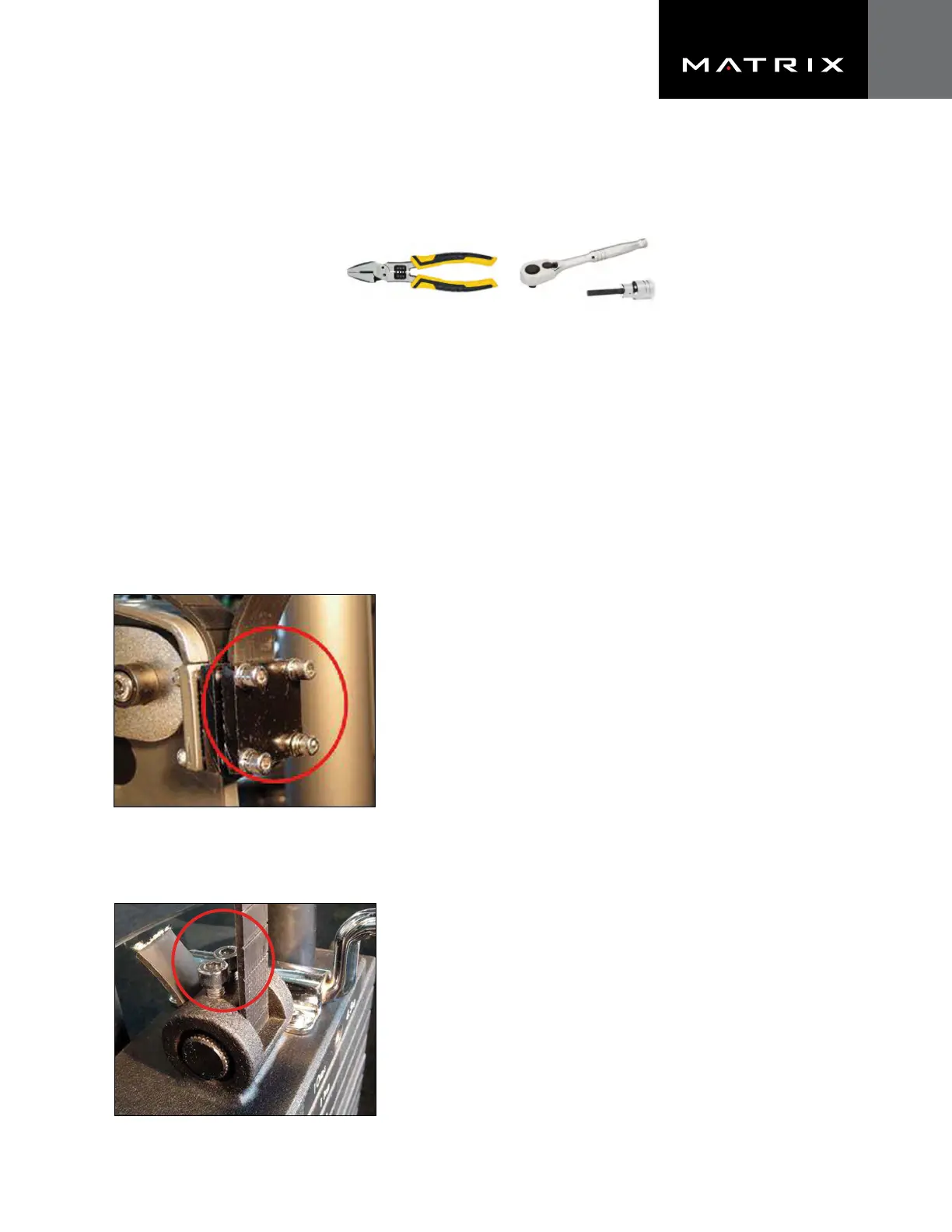

TOOLS NEEDED
• 4 mm Allen socket
• Large size pliers
FIG. 1
FIG. 2
