Matrix A50 Manual

8
15
P
17
O
N
N
16
13
8
L
M
14
8
12
11
K

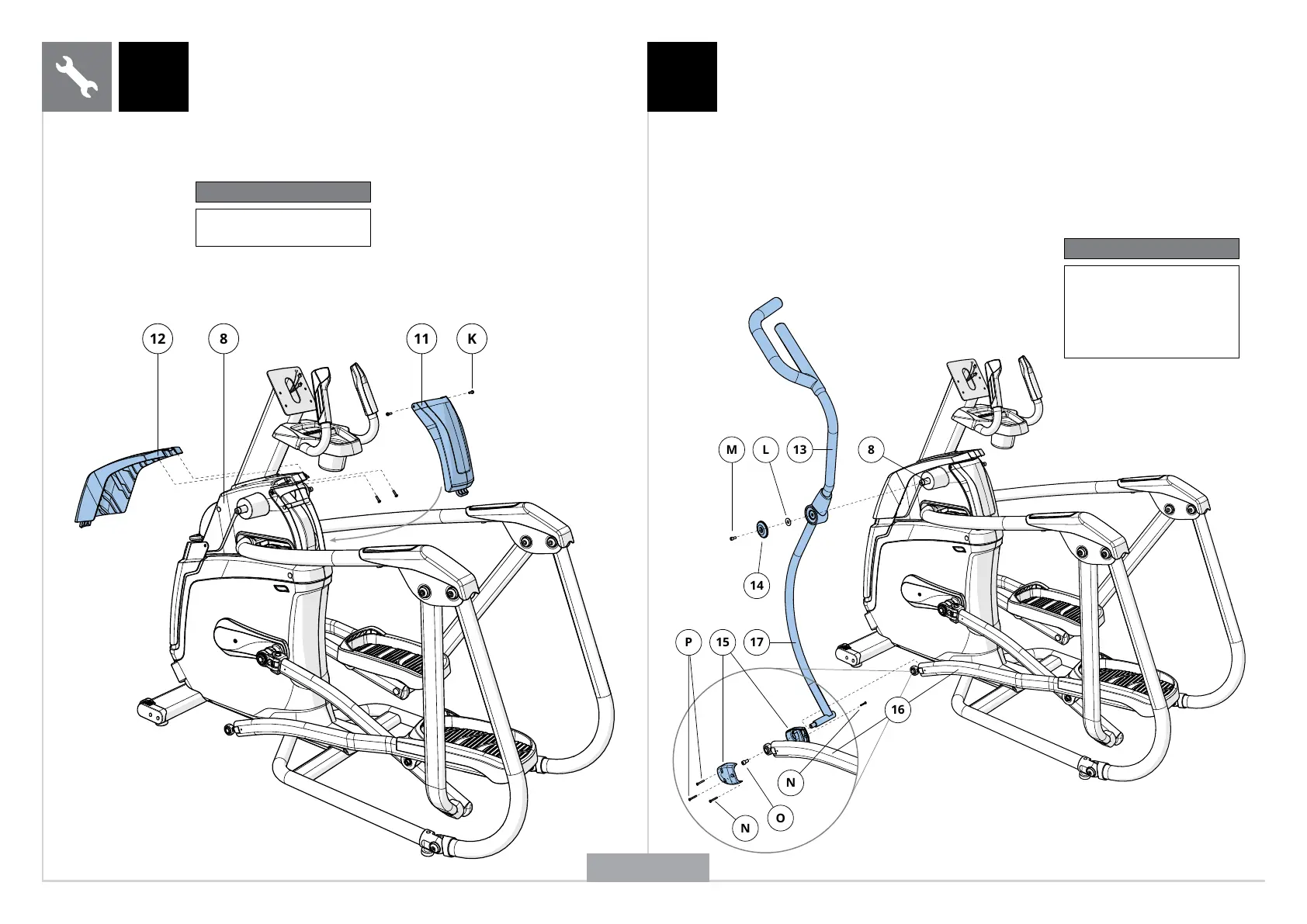

A Open HARDWARE FOR STEP 4.
B Attach the REAR TOP CAP COVER (11) to the
UPPER ASSEMBLY (8) using 2 SCREWS (L).
C Attach the FRONT TOP CAP COVER (12) to the
UPPER ASSEMBLY (8) using 2 SCREWS (K).
4 5
Hardware For Step 4
Description Qty
K Screw 4
Hardware For Step 5
Description Qty
L
M
N
O
P
Flat Washer
Bolt (20 mm)
Screw (8 mm)
Bolt (25 mm)
Screw (15 mm)
2
2
4
2
4
A Open HARDWARE FOR STEP 5.
B Slide the UPPER DUAL ACTION ARM (13) onto the UPPER ASSEMBLY
(9) and attach using 1 FLAT WASHER (L) , 1 HANDLEBAR CAP
(14) and 1 BOLT (M). Torque settings: 64.5 Nm / 47.6 lb-ft.
C Attach inside LINK ARM COVER (15) to LINK ARM (16) using 1 SCREW (N).
D Slide LINK ARM (16) onto the lower DUAL ACTION ARM (17) and
attach using 1 BOLT (O) and tighten to 80 Nm / 59 lb-ft.
E Attach outside LINK ARM COVER (15) to LINK ARM
(17) using 2 SCREWS (P) and 1 SCREW (N).
F Repeat steps B–E on other side.
G Move frame off Styrofoam base and cardboard.
A50 SHOWN
ENGLISH

Matrix A50 Specifications

General

Brand	Matrix
Model	A50
Category	Fitness Equipment
Language	English
