Matrix A7xe - Page 14

26 27
ALL
MODELS
ALL
MODELS

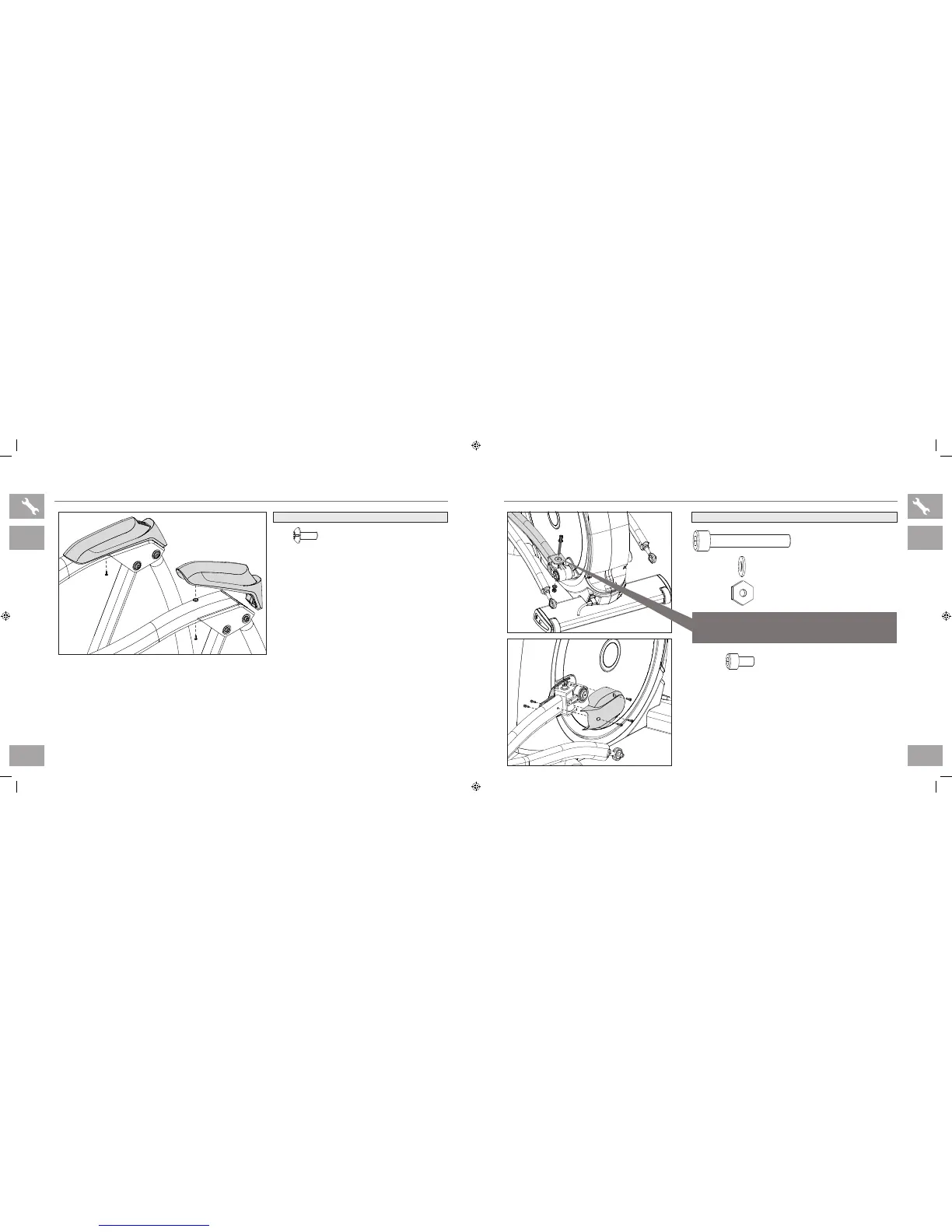

ASSEMBLY STEP 3
PINK HARDWARE BAG CONTENTS
ASSEMBLY STEP 4
QTY
1
QTY
2
QTY
1
SOCKET HEAD CAP SCREW
(M10x1.5Px100L)
12.9 GRADE MINIMUM
FLAT WASHER
(Ø10.2xØ20x2.0T)
HEX NUT
(M10) CLASS 10
QTY
5
SCREW
(M5x0.8Px10L)
GREEN / YELLOW HARDWARE BAG CONTENTS
QTY
1
QTY
2
QTY
1
SOCKET HEAD CAP SCREW
(M10x1.5Px100L)
12.9 GRADE MINIMUM
FLAT WASHER
(Ø10.2xØ20x2.0T)
HEX NUT
(M10) CLASS 10
QTY
5
SCREW
(M5x0.8Px10L)
WARNING!!
Use torque wrench and tighten to (70 N-m - 90 N-m)
QTY
2
SCREW
(M5x0.8Px16L)
