Matrix C50

5
IMPORTANT: Do not tighten bolts until step 3 is complete.

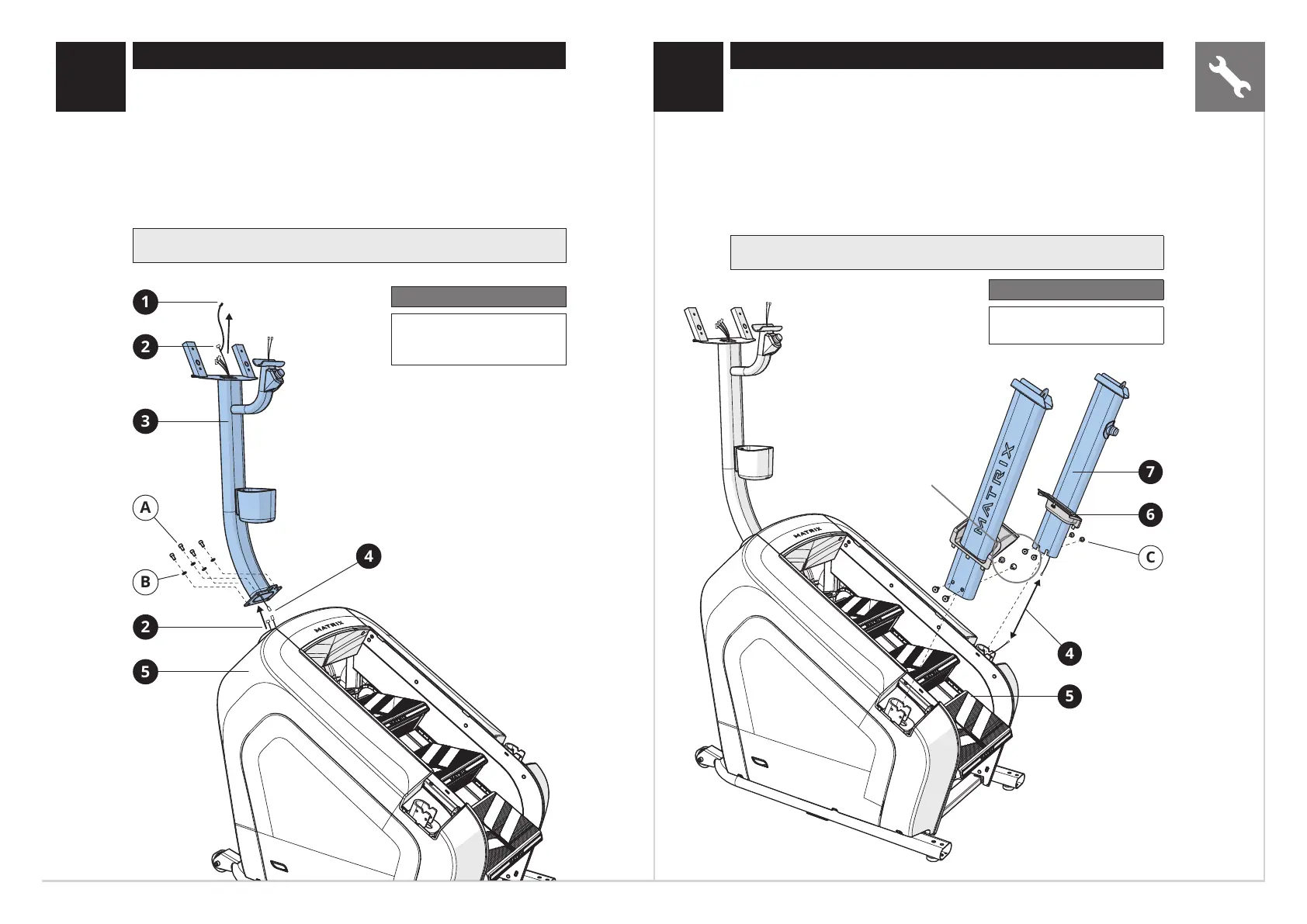

• Open HARDWARE FOR STEP 1.
• Attach LEAD WIRE (1) to CONSOLE CABLE (2) and pull lead
wire through CONSOLE MAST (3). After pulling the lead wire
through the mast, the top of the console cable should be
located at the top of the mast. Detach and discard lead wire.
• Connect EMERGENCY STOP WIRES (4).
• Attach CONSOLE MAST (3) to BASE FRAME (5) using
4 BOLTS (A) and 4 TOOTH WASHERS (B).
Note: Be careful not to pinch wires while attaching the mast.
1
2
3
2
5
A
B
4
Hardware For Step 1
Description Qty
A
B
Bolt
Tooth Washer
4
4
1 2
5
4
C
7
6
Hardware For Step 2
Description Qty
C Flat Head Bolt 4
ENGLISH
IMPORTANT: Do not tighten bolts until step 3 is complete.
• Open HARDWARE FOR STEP 2.
• Slide HANDLEBAR COVERS (6) halfway up HANDLEBAR
MASTS (7). Do not snap them into place until step 3.
• Connect EMERGENCY STOP WIRES (4) to the
RIGHT HANDLEBAR MASTS (7).
• Attach RIGHT HANDLEBAR MASTS (7) to
BASE FRAME (5) using 2 BOLTS (C).
• Repeat on other side.
Note: Be careful not to pinch wires while attaching the masts.
Pre-installed
