Matrix C50

7
5
15
K
14
5 6

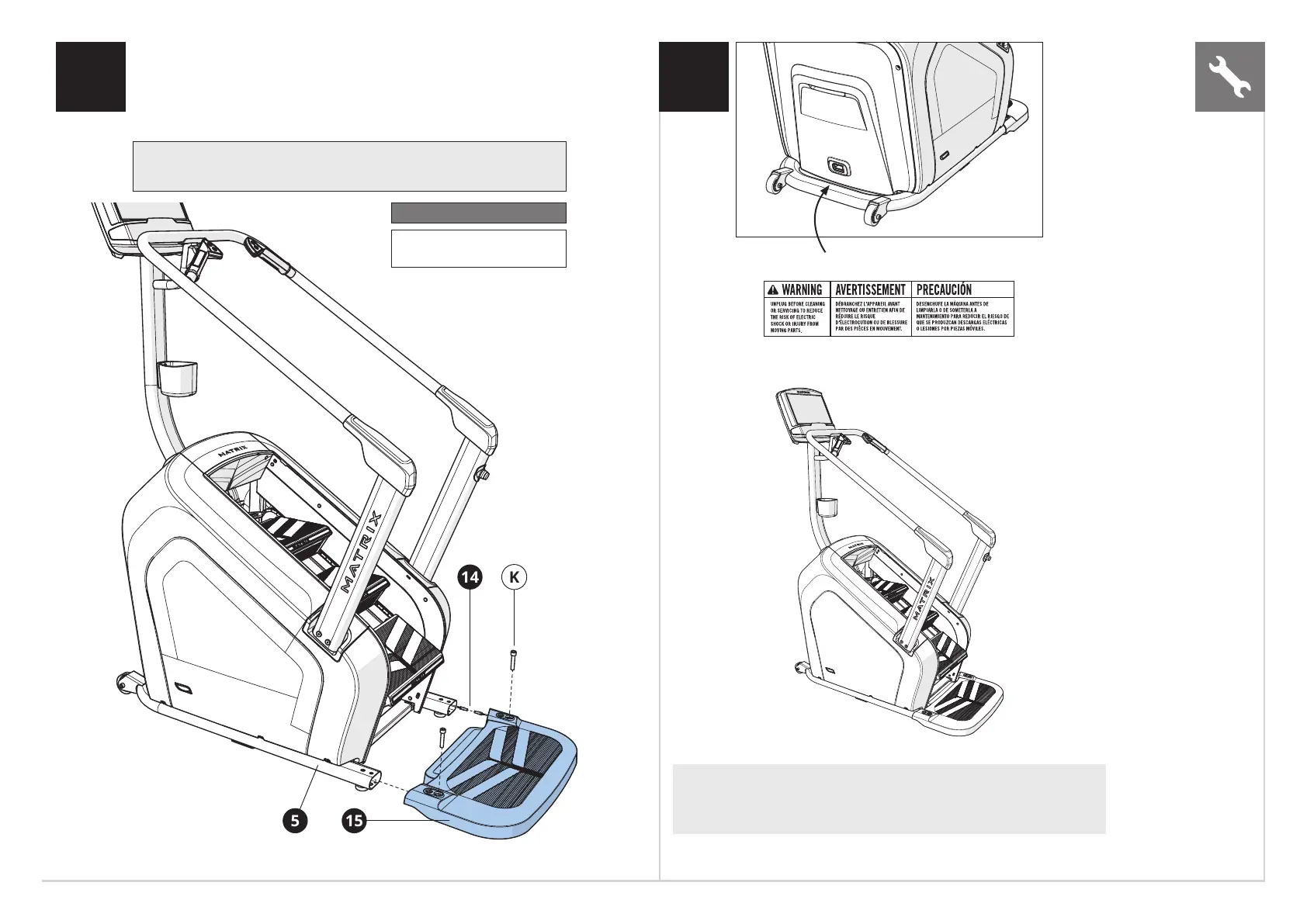

• Open HARDWARE FOR STEP 5.
• Connect the CONTROL ZONE WIRES (14).
• Attach CONTROL ZONE (15) to BASE FRAME (5) using 2 BOLTS (K).
• Tighten bolts to 39 Nm / 28.8 lb-ft.
IMPORTANT: Do not install control zone until the ClimbMill is positioned
where it will be used.
Hardware For Step 5
Description Qty
K Bolt 2
ENGLISH
ASSEMBLY COMPLETE!
PLACE WARNING LABEL HERE
