7
Z05
Z11
Z27
Z13
Flat Washer (Φ10)
Screw (M10x110L)
Screw (M10x40L)
Nut (M10)
8
4
8
4
Item Description Qty
NOTE:
Assemble laying down for step 1
Do not completely tighten hardware until final step
Z13
Z05x2
Z27x2
Z11
Z11
Z05x2
Z13
Z27x2
Z27x2
Z13
Z05x2
Z11
Z11
Z27x2
Z13
Z05x2
GFTFS
Free Standing

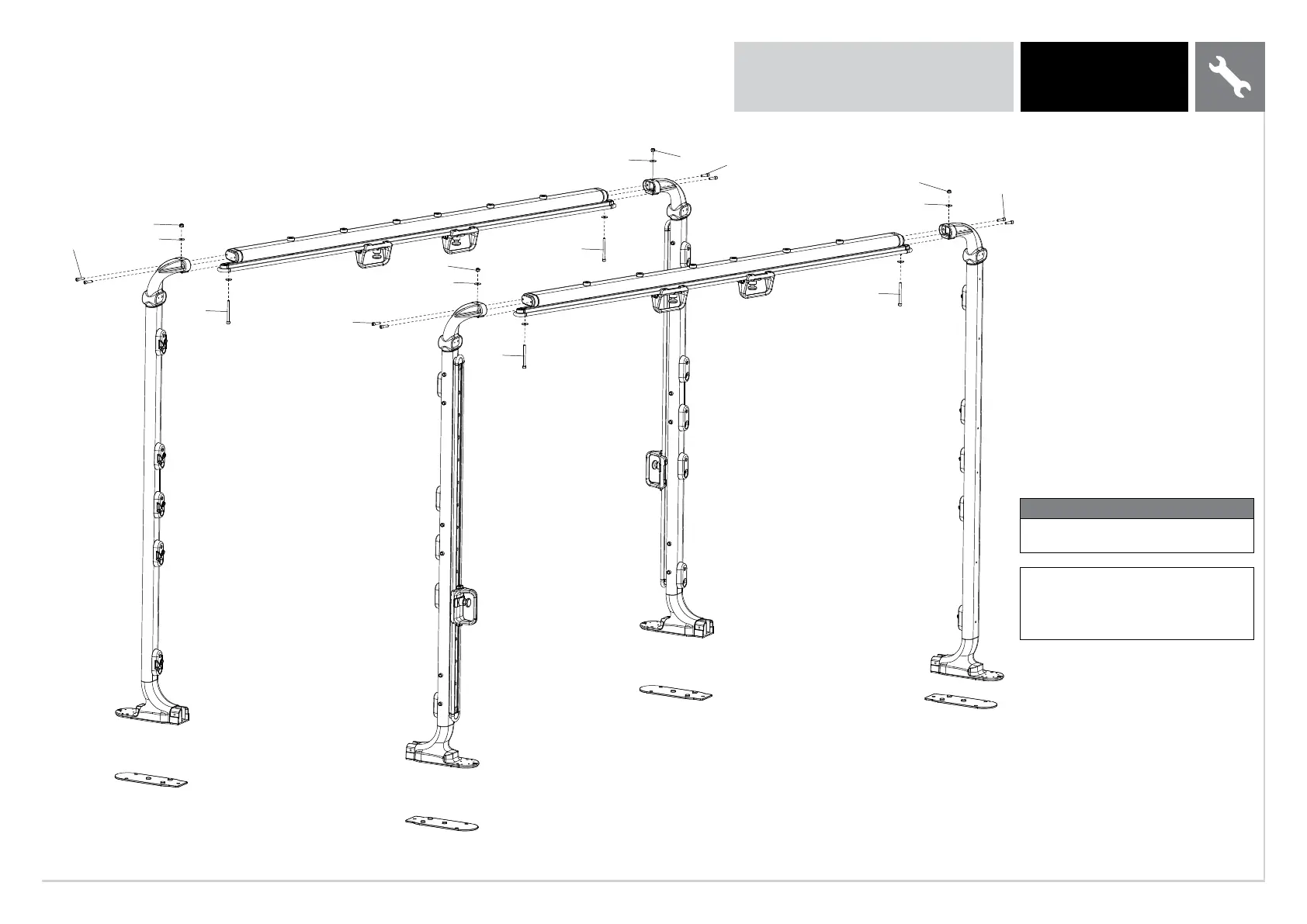

Step 1 of 3
