Matrix CXC User Manual

6
1 2
CXC
CXM
A
B
C
B

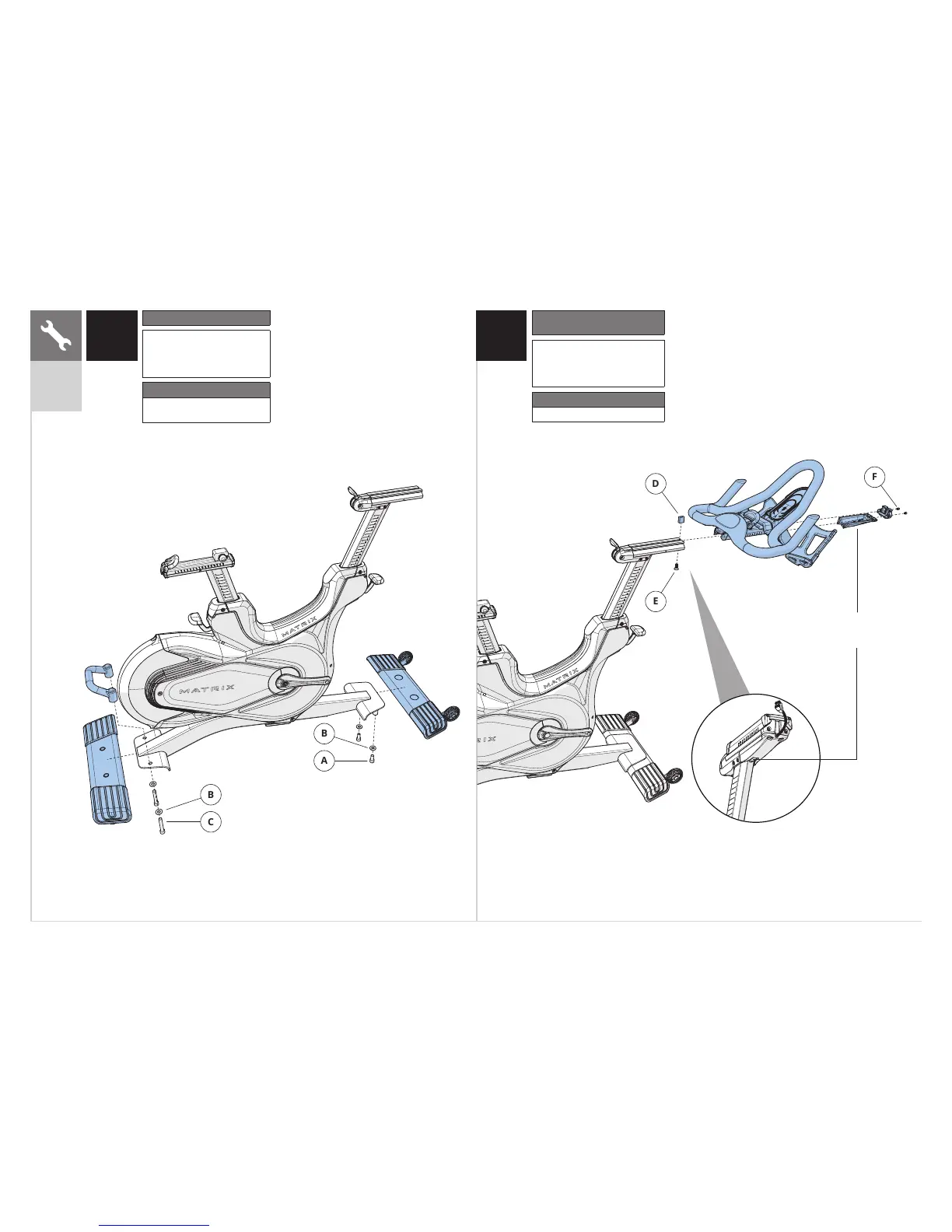

Red Hardware Pack
Description Qty
A
B
C
Bolt (M12x25L)
Flat Washer
Bolt (M12x70L)
2
4
2
Torque Value
A
C
78 Nm / 58 ft-lb
78 Nm / 58 ft-lb
E
D
F
Black (CXC) / Yellow (CXM)
Hardware Pack
Description Qty
D
E
F
Stopper
Screw (M8x20L)
Screw (M4x6L)
1
1
2
Torque Value
E 20 Nm / 14 ft-lb
Slide handlebars onto frame
before attaching (D), (E) and
then (F)
This part is for CXM only
CXM only: Push to lock
ENGLISH

Matrix CXC Specifications

General

Category	Fitness Equipment
Emergency Stop	Yes
Drive System	Belt
Console	Optional LCD or LED Console
Frame Colors	Black
User Height Range	6'4"
Display	Optional LCD or LED
Heart Rate Monitoring	Yes
