Matrix CXM Manual

5
ENGLISH
H
H
1
2
3
E
D
F
A
B
A
B
G
2
Hardware Qty
D
E
F
Stopper
Screw (M8x20L)
Screw (M4x6L)
1
1
2
3
Hardware Qty
G Screw (M6x50L) 1
1
Hardware Qty
A
B
Bolt (M12x25L)
Flat Washer
4
4
Torque Value
78 Nm / 58 ft-lb.
Torque Value
E - 20 Nm / 14 ft-lb

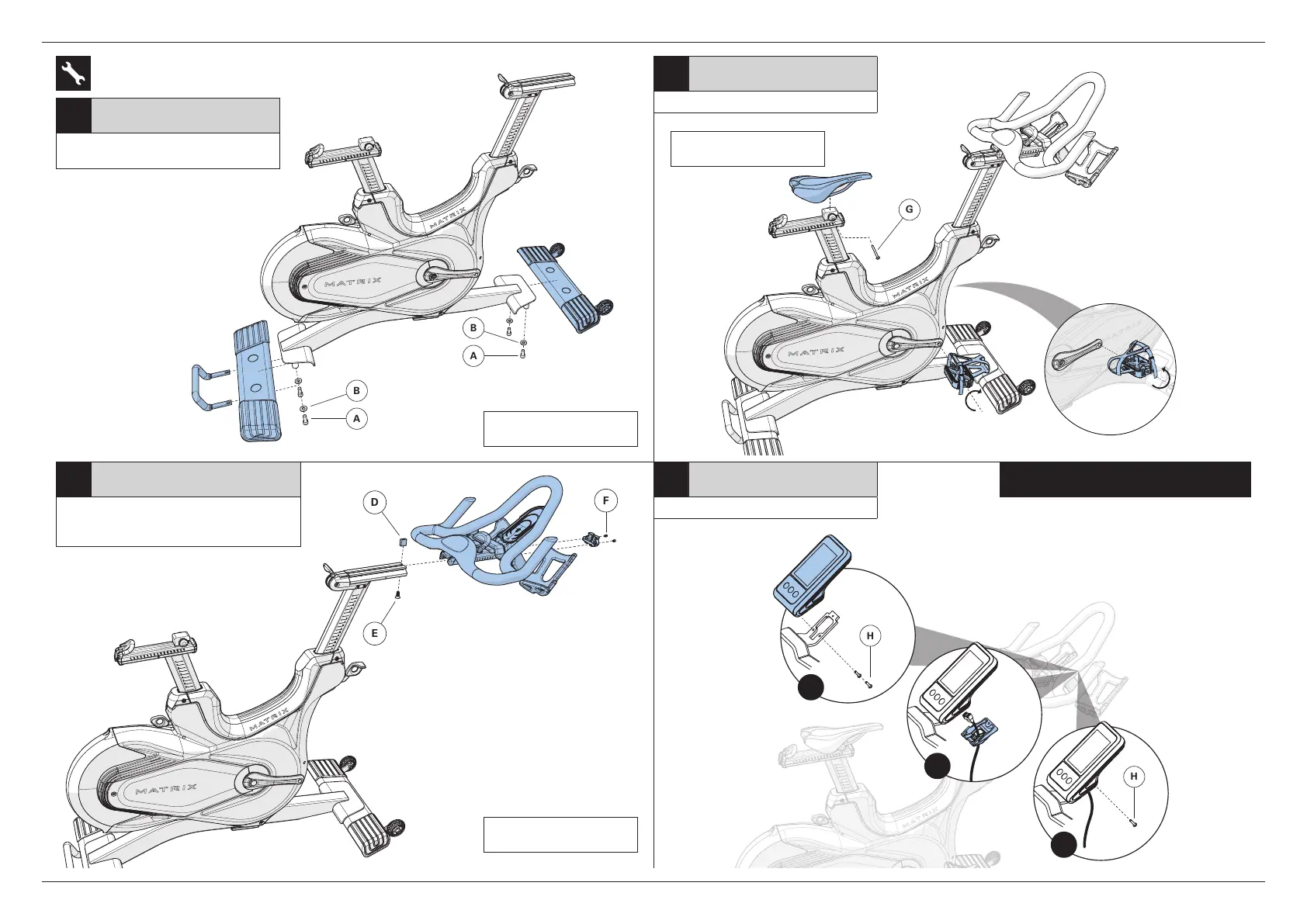

ASSEMBLY
Torque Value
G - 10 Nm / 7.4 ft-lb
Slide handlebars onto frame
before attaching (D), (E) and
then (F)
LEFT
PEDAL
40 Nm / 29.5 ft-lb
4
Hardware Qty
H Screw (M4x10L) 3
ASSEMBLY COMPLETE
