9.8 DRIVE AXLE SET REPLACEMENT - CONTINUED

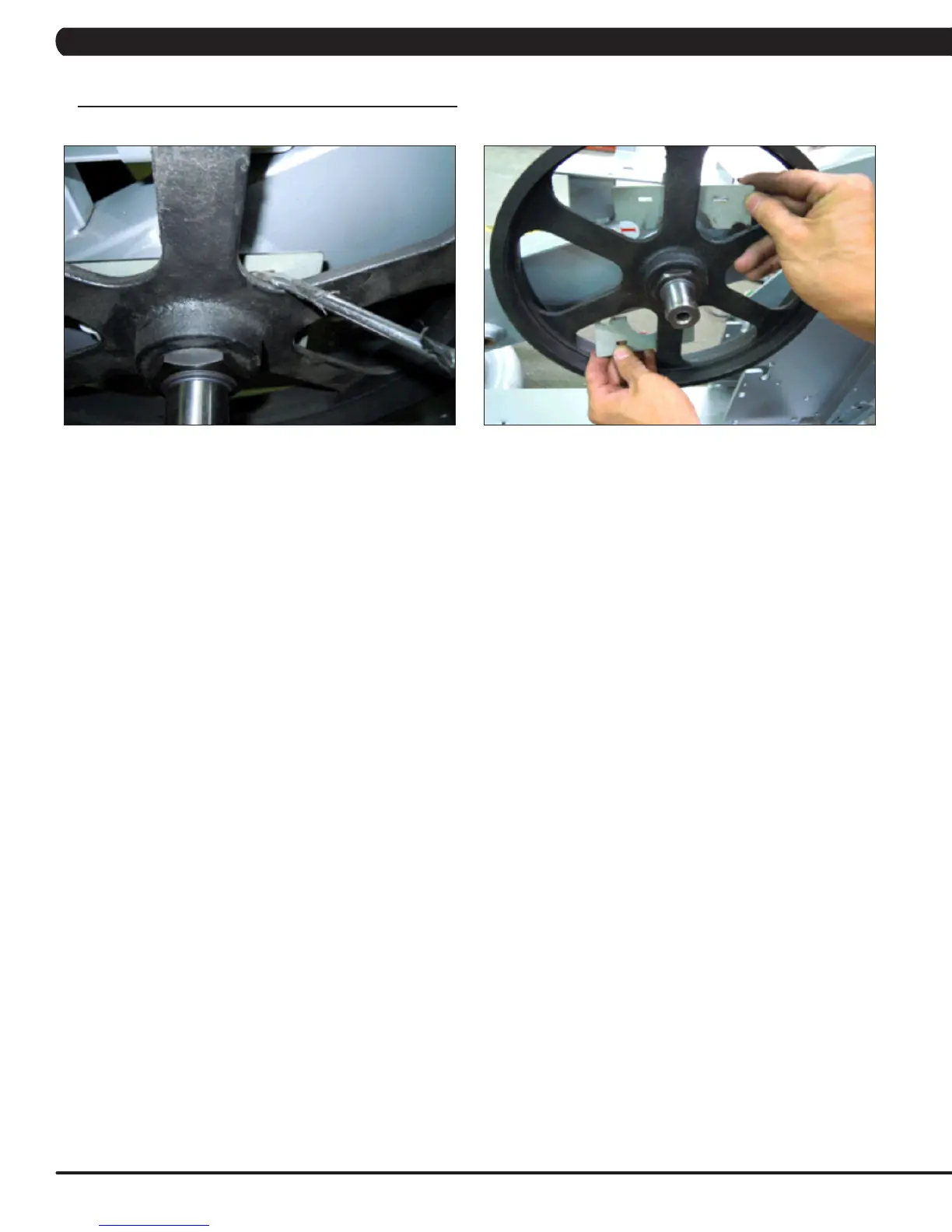

22) Use a screwdriver to remove the iron plate from the drive axle (Figures S & T).
23) Re-install the belts as outlined in Sections 9.5 and 9.6.
24) Test the Suspension Elliptical as outlined in Section 9.21.
FIGURE TFIGURE S
