Matrix E5xc User Manual

25
CHAPTER 8: A5x, A7x, A7xe A
scent specifications, parts, and assembly guides
8.3 A5x, A7x, A7xe MODEL ASSEMBLY STEPS
STEP 3

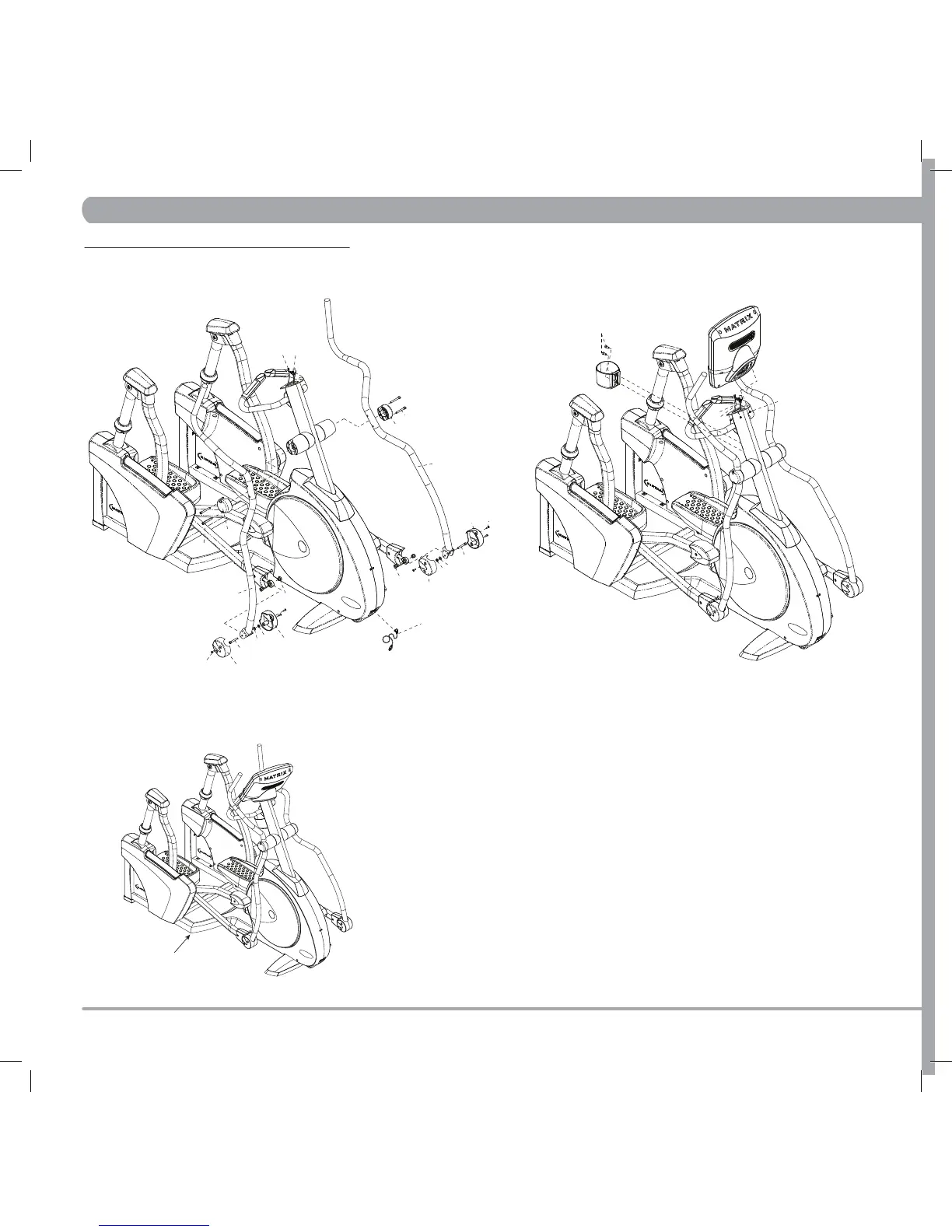

FINAL ASSEMBLY
3020
8
3020
8
Z04
G08
AG2
Z03
Z05
Z06
Z07
Z08
Q13
Q14
Z03
Z05
Z06
Z07
Z08
AG1
Q14
Q13
Z04
G08
Z41x5
P62
P52
P01
P52
P01
Z14
MIDDLE LEVELERS
When leveling the Ascent Trainer, make sure that the middle
levelers (shown above) are completely tightened and flush with the
bottom of the machine. Use only the front two levelers to balance out
the machine.
